RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

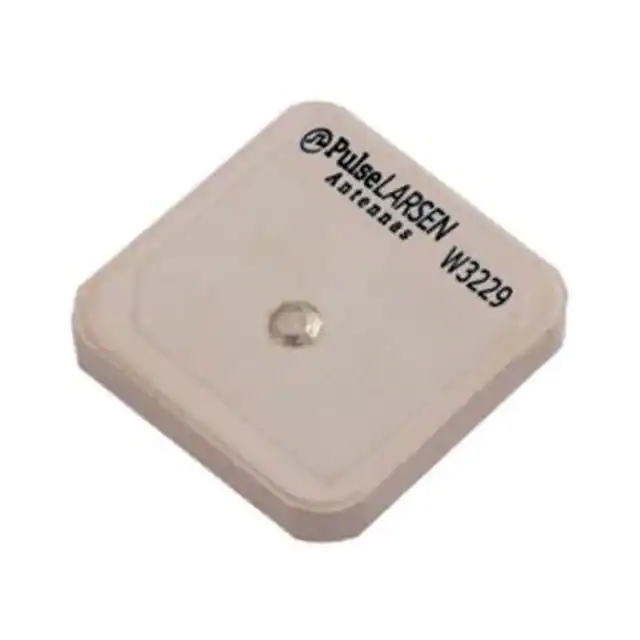

W3229RF ANT 2.45GHZ CER PATCH PIN ADH Pulse Electronics |
13,312 | 4.30 |
|
Datasheet |
Ceramic Patch Antenna | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | -7dB | 6.5dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Bluetooth, Wi-Fi |
|
W3525B100RF ANT 2.4GHZ PCB TRACE CAB SMD Pulse Electronics |
895 | 4.38 |
|
Datasheet |
- | Tray | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | PCB Trace | 1 | - | - | 2dBi | - | Cable - 254mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.031" (0.80mm) | Wi-Fi, WLAN |
|

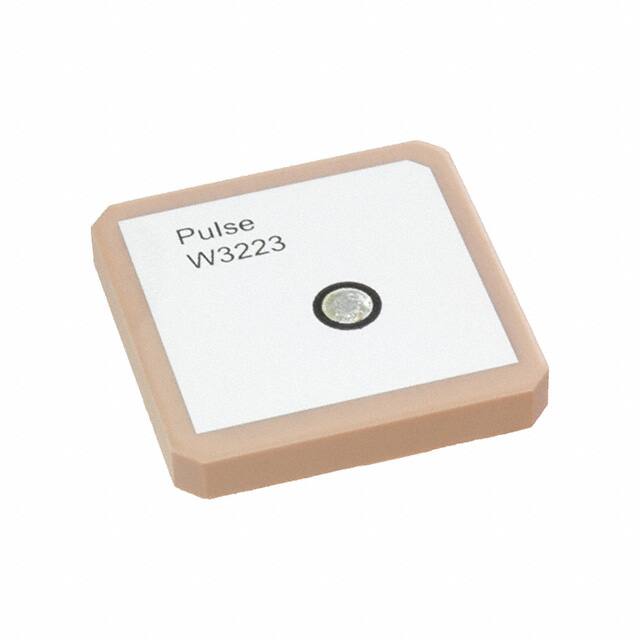

W322325X25X4MM GPS/GLONASSPIN MOUNT Pulse Electronics |
700 | 3.54 |
|
Datasheet |
Ceramic Patch | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | - | -10dB | 4dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
ANT4005B000RWHEXSRF ANT 829MHZ/2.2GHZ CHIP SLD Pulse Electronics |
1,800 | 4.30 |
|
Datasheet |
4005 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 2 | 3 | - | 3.2dBi, 4dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | General Purpose |
|
|

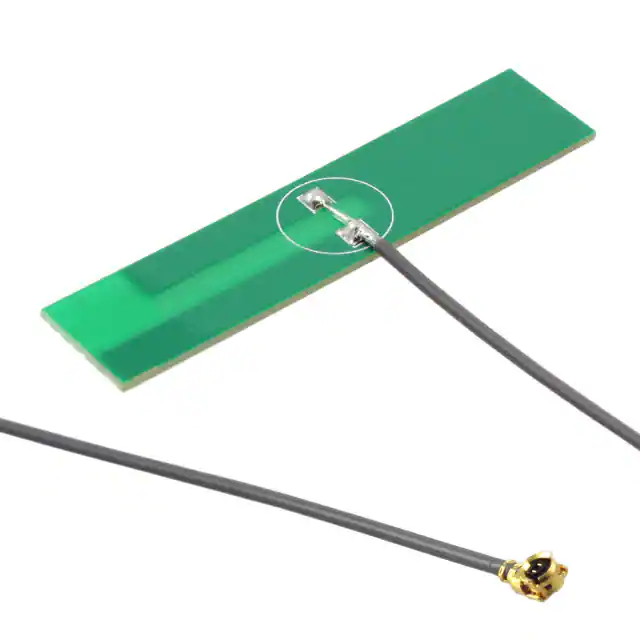

W3525B039RF ANT 2.4GHZ PCB TRACE CAB SMD Pulse Electronics |
377 | 4.10 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | PCB Trace | 1 | - | - | 2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.031" (0.80mm) | Wi-Fi, WLAN |
|

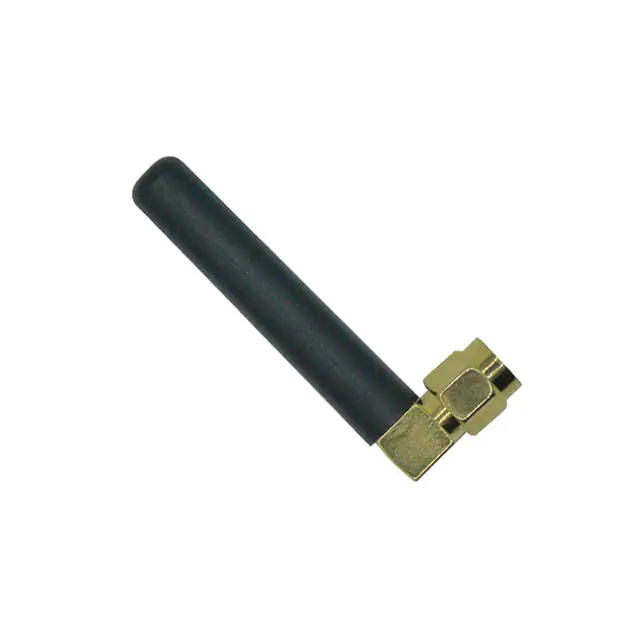

W1095KANT EXT 2.4-2.5GHZ RA SMA IP65 Pulse Electronics |
1,427 | 4.27 |
|
Datasheet |
External Stubby | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 2.5 | - | 1dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 1.890" (48.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

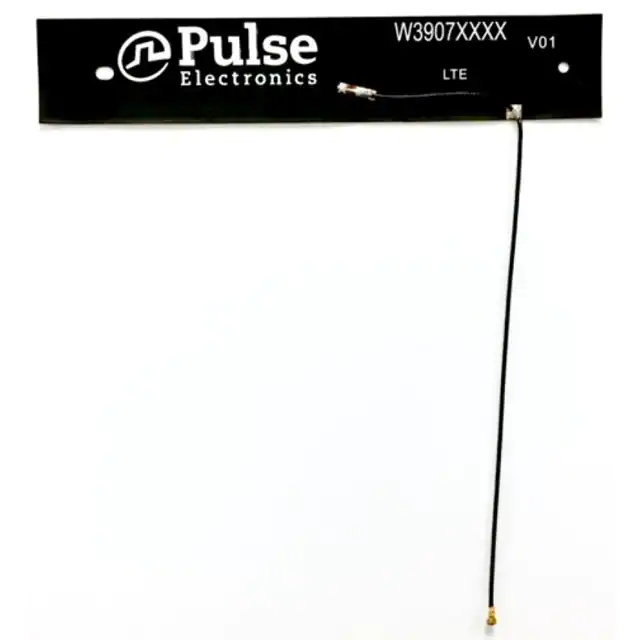

W3907B0127LTE DIVERSITY FPC ANTENNA Pulse Electronics |
652 | 5.06 |
|
Datasheet |
GEMINI | Bag | Active | Cellular | Wide Band | 829MHz, 1.4694GHz, 1.5845GHz, 1.9475GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.4279GHz ~ 1.5109GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | PCB Trace | 6 | - | -6dB, -7.5dB | 2.9dBi, 1.7dBi, 1.8dBi, 3.4dBi, 3.8dBi, 4.2dBi | 3 W | Cable - 127mm | I-PEX MHF | - | - | - | Surface Mount | - | 2G, 3G, 4G, LTE |
|
W3340ANTENNA 6.0-8.5 GHZ UWB Pulse Electronics |
3,025 | 2.12 |
|
Datasheet |
Chip Antenna | Box | Active | - | SHF (f > 4GHz) | 7.25GHz | 6GHz ~ 8.5GHz | Chip | 1 | - | 9dB | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | UWB |
|

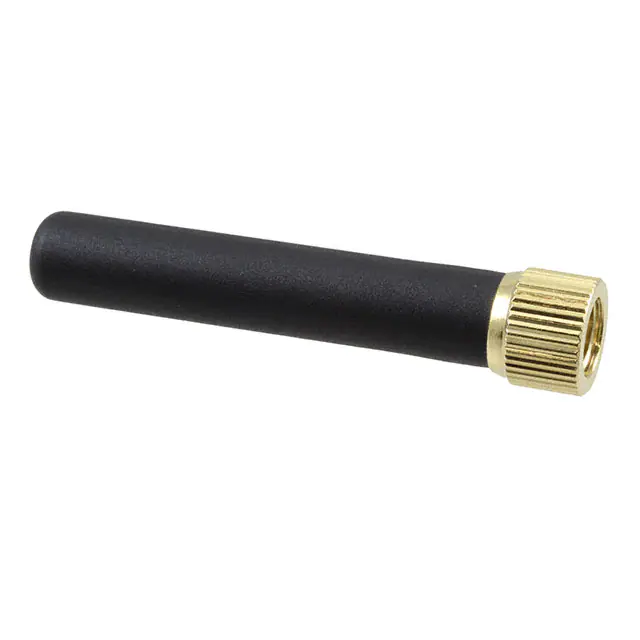

W1910RF ANT 850MHZ/900MHZ WHIP STR Pulse Electronics |
1,273 | 6.46 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | SMA Male | - | - | - | Connector Mount | 1.929" (49.00mm) | GSM, WCDMA |
|

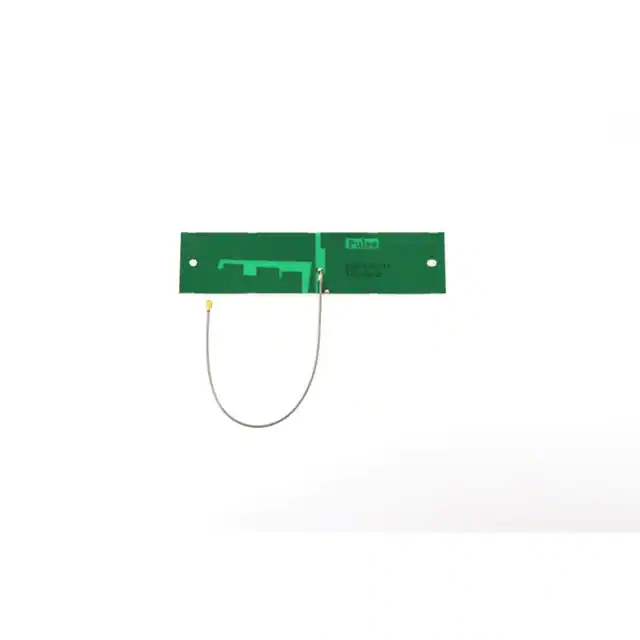

W3554B0293ANTENNA ASSEMBLY 6GHZ 293MM U.FL Pulse Electronics |
2,349 | 6.46 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 293mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
