RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

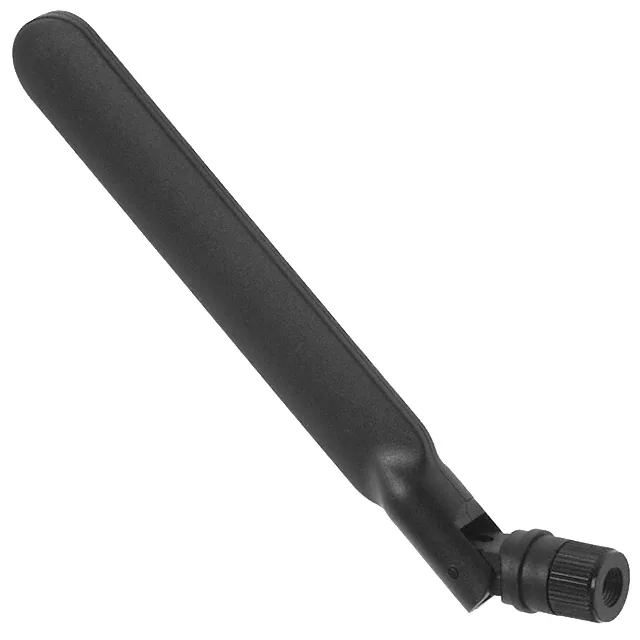

W1043RF ANT 2.4/5GHZ WHIP TILT 4.5" Pulse Electronics |
2,697 | 9.86 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.825GHz | Whip, Tilt | 2 | 2 | - | 2.5dBi, 3.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 6.201" (157.50mm) | Bluetooth, WLAN, Zigbee™ |
|

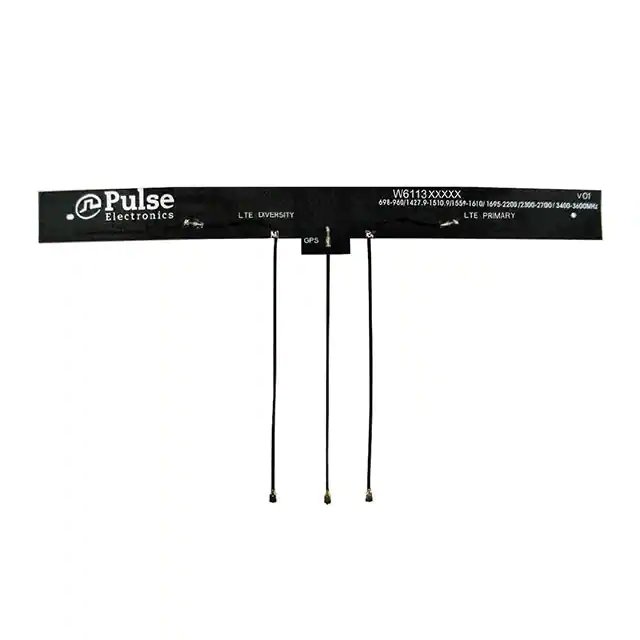

W6113B0100RF ANT 829MHZ/1.47GHZ FLAT CAB Pulse Electronics |
293 | 9.51 |
|
Datasheet |
- | Bulk | Active | - | Wide Band | 829MHz, 1.47GHz, 1.58GHz, 1.94GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.428GHz ~ 1.51GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | Flat Patch | 6 | - | -10dB | 4.2dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | - |
|

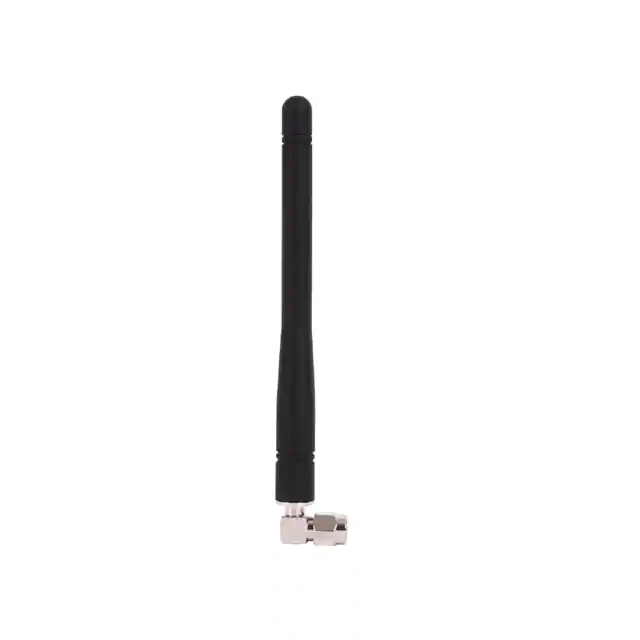

W1096ANTENNA 698-960MHZ/2179-3800MHZ Pulse Electronics |
3,562 | 12.93 |
|
Datasheet |
Stick Antenna | Bag | Active | Cellular | Wide Band | 829MHz, 2.2GHz, 3.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz | Whip, Right Angle | 3 | 2, 3.5, 4 | - | -3dBi, 1.5dBi, -0.5dBi | 3 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 4.409" (112.00mm) | 4G, 5G, LTE |
|
ANT2525JB08B1575ARF ANT 1.575GHZ CER PATCH IPEX Pulse Electronics |
292 | 11.29 |
|
Datasheet |
2525 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 2 | - | 5.5dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.236" (6.00mm) | GPS |
|

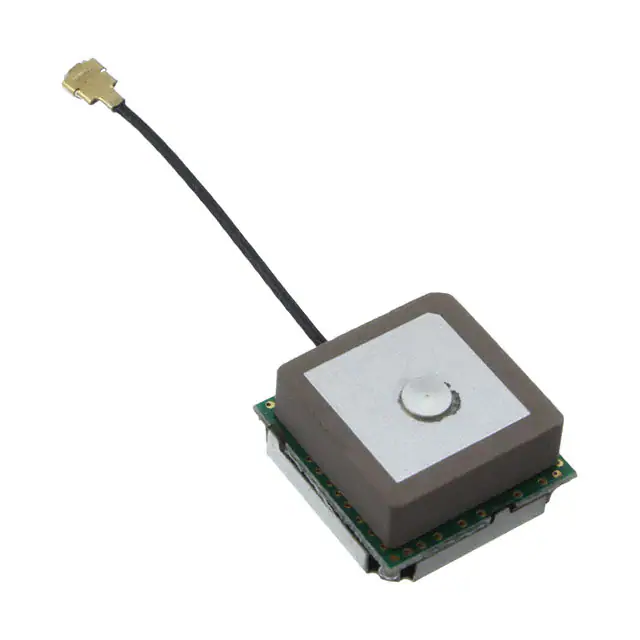

GPSMOD1315RF ANT 1.575GHZ CER PATCH U.FL Pulse Electronics |
323 | 12.44 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | - | 1dB | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | GPS |
|

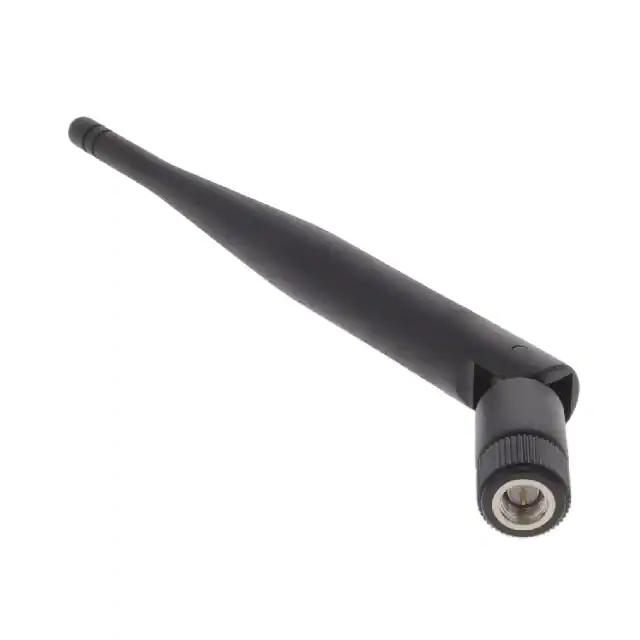

W5097RF ANT 2.4GHZ/5.5GHZ WHIP STR Pulse Electronics |
159 | 13.80 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 6GHz | Whip, Straight | 2 | 2 | - | 3.5dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 5.921" (150.40mm) | Bluetooth, WLAN, Zigbee™ |
|

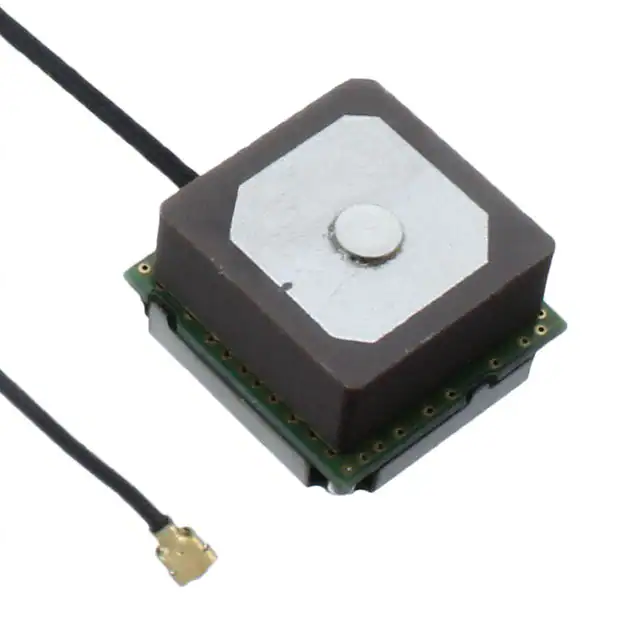

GPSGB1315RF ANT 1.575/1.602GHZ CER PATCH Pulse Electronics |
184 | 14.91 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 2 | - | 1dBic | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.321" (8.15mm) | GPS |
|

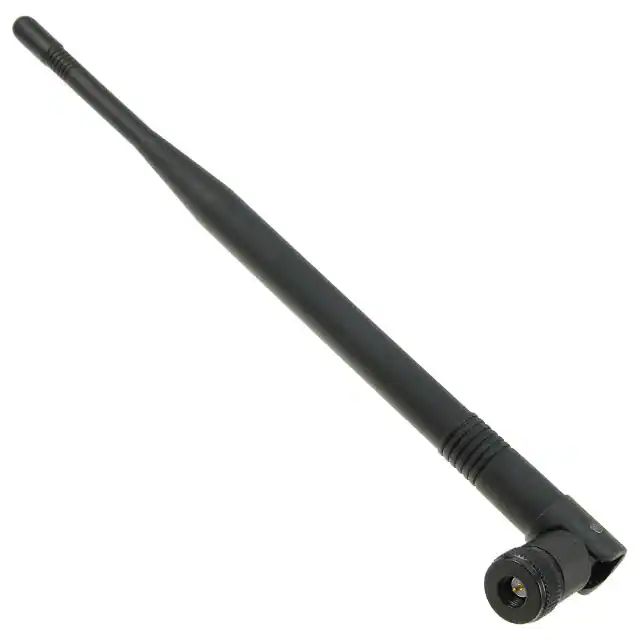

SPDA24918RF ANT 925MHZ WHIP TILT SMA MALE Pulse Electronics |
188 | 17.41 |
|
Datasheet |
- | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 925MHz | 890MHz ~ 960MHz | Whip, Tilt | 1 | 2 | - | 2dBi | 2 W | - | SMA Male | - | - | - | Connector Mount | 8.740" (222.00mm) | - |
|

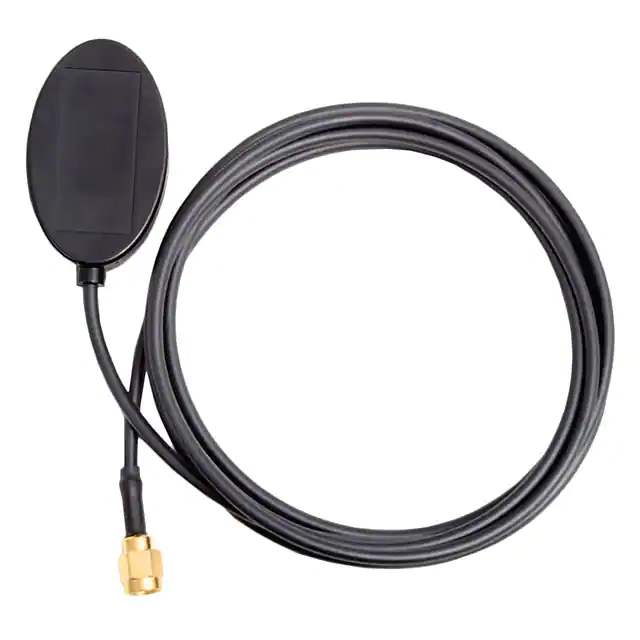

GPSGMSMARF ANT 1.575GHZ MOD SMA ADH 5M Pulse Electronics |
378 | 18.79 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 1.5dBi | - | Cable - 5m, LNA | SMA Male | - | - | - | Adhesive | 0.215" (5.45mm) | GPS |
|

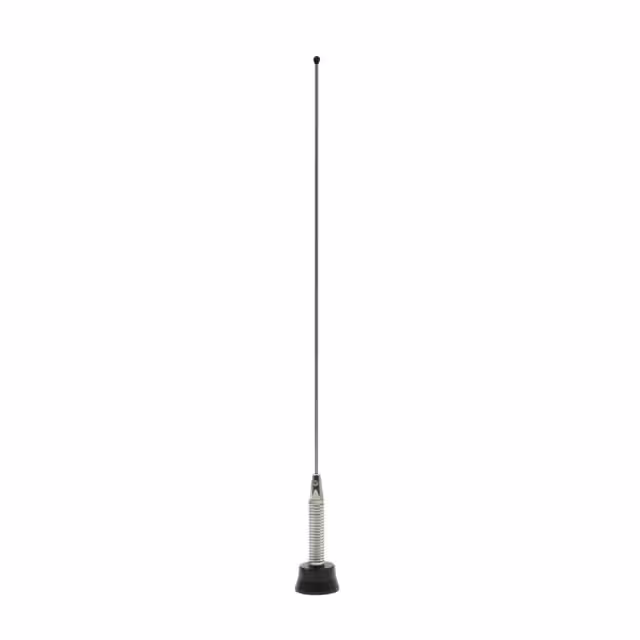

NMOWBQCSTAINLESS SPRING BASE / WHIP, UN Pulse Electronics |
182 | 43.17 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 160MHz | 150MHz ~ 170MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 20.000" (508.00mm) | - |
