RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

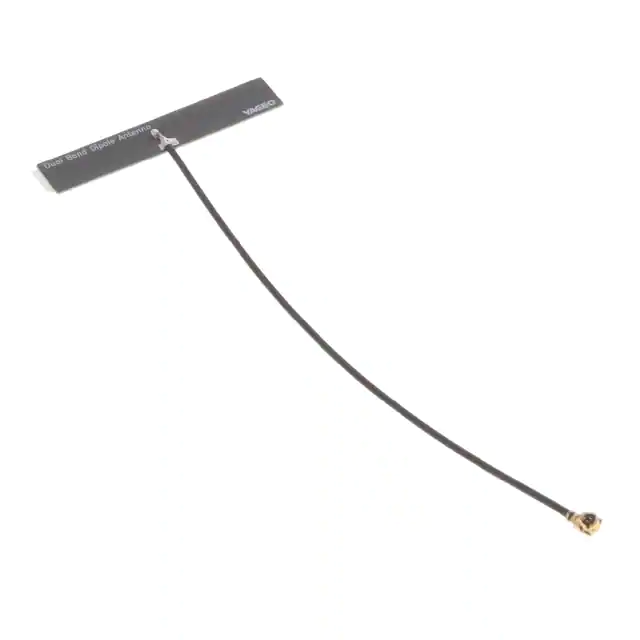

ANTX100P111B24553RF ANT 2.45/5.5125GHZ FLAT PATCH Pulse Electronics |
1,993 | 1.88 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Flat Patch | 2 | 2.5 | - | 3.2dBi, 3.4dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

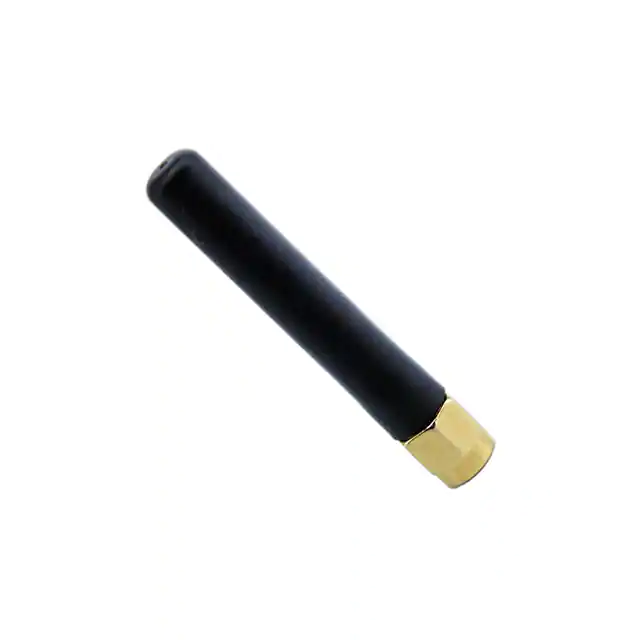

W1095ANT EXT 2.4-2.5GHZ SMA IP65 Pulse Electronics |
1,215 | 3.96 |
|
Datasheet |
External Stubby | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2.5 | - | 1dBi | - | - | SMA Male | IP67 | - | - | Connector Mount | 1.996" (50.69mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

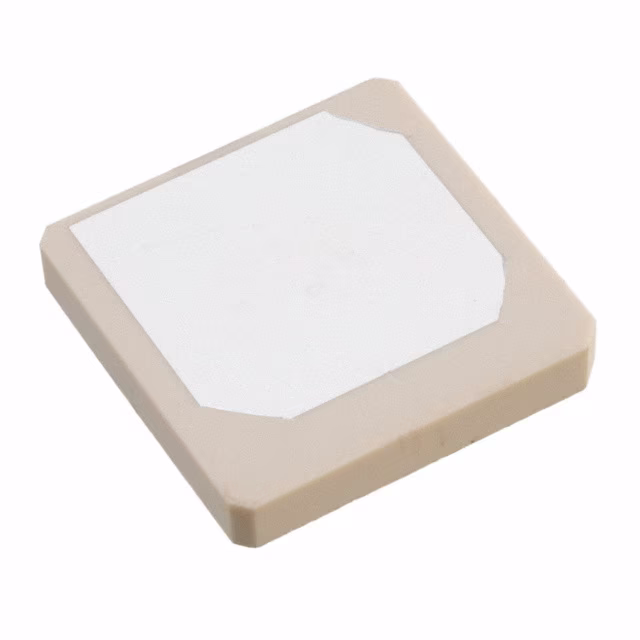

ANT2525B00BT1516SRF ANT 1.575/1.602GHZ CER PATCH Pulse Electronics |
530 | 3.48 |
|
Datasheet |
2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | -32.828dB, -31.357dB | 4.72dBi, 4.51dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|

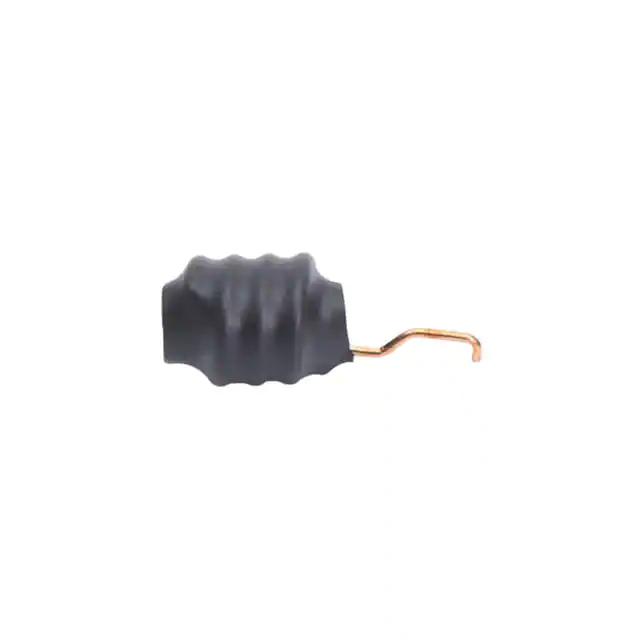

W3100CANT HELICAL COIL 915MHZ Pulse Electronics |
9,689 | 2.81 |
|
Datasheet |
Helix Coil | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | - | Helical | 1 | 2 | - | -0.5dBi | 2 W | - | Solder | - | - | - | Solder | 0.386" (9.80mm) | ISM |
|

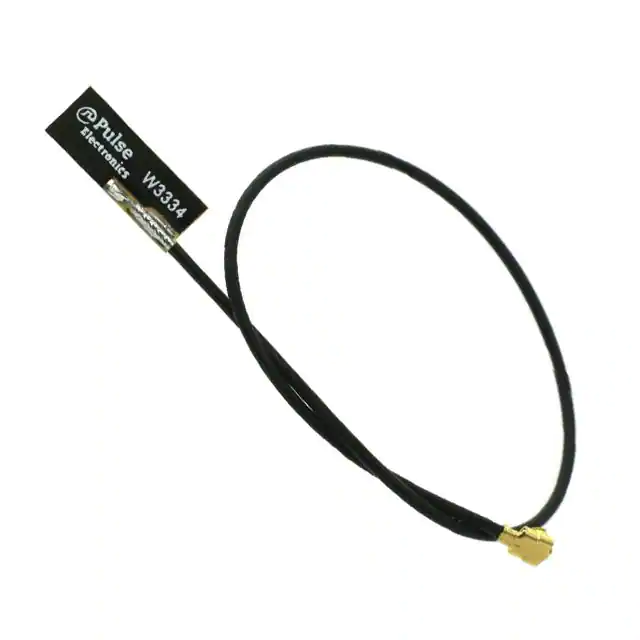

W3334B0150RF ANT 2.4GHZ/5.4GHZ FLAT PATCH Pulse Electronics |
457 | 2.44 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | 2 | - | 5.5dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|

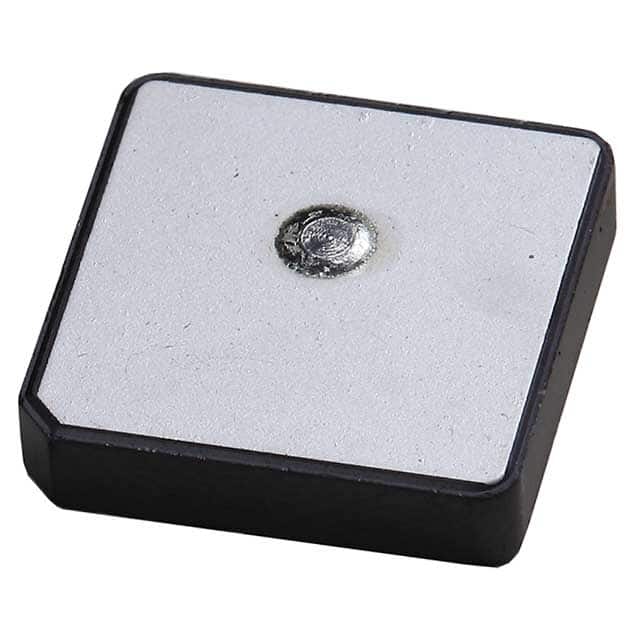

ANT1818B00DT1516SRF ANT 1.575/1.602GHZ CER PATCH Pulse Electronics |
2,611 | 2.25 |
|
Datasheet |
1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | -26.080dB, -26.781dB | 2.65dBi, 2.79dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|

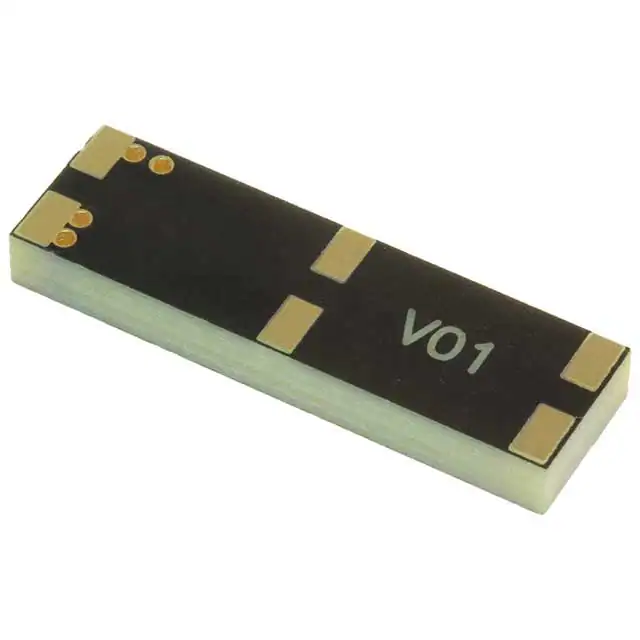

W3544BRF ANT 850MHZ/900MHZ CHIP SLD Pulse Electronics |
4,767 | 2.44 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 5 | - | -6.5dB, -5.7dB, -18.5dB, -13dB | -1.5dBi, -1.1dBi, -1.1dBi, -1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | GSM |
|

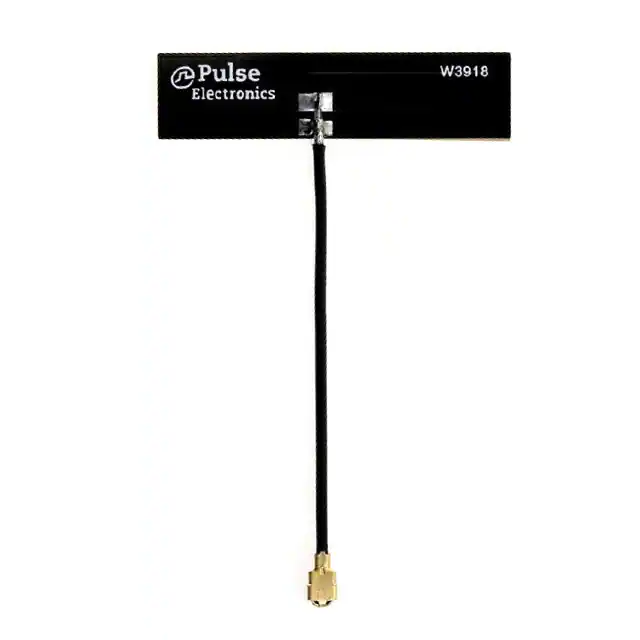

W3918B0100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH Pulse Electronics |
691 | 2.60 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 4dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

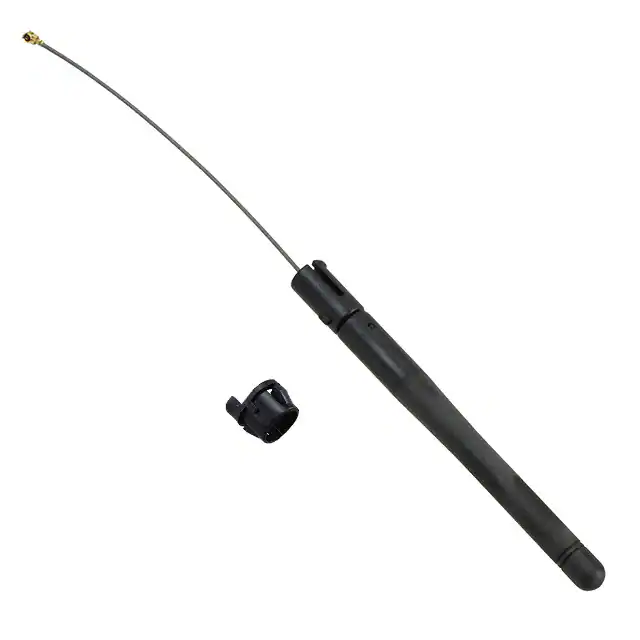

W1049B030RF ANT 2.4GHZ WHIP/TILT CONN MT Pulse Electronics |
241 | 3.62 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2dBi | - | Cable - 76mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.248" (82.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

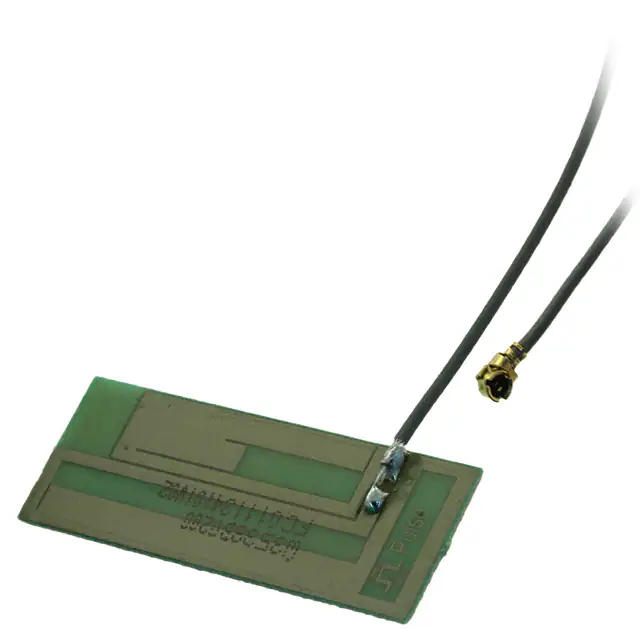

W3538B0200RF ANT 850MHZ/900MHZ PCB TRACE Pulse Electronics |
858 | 3.65 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | -6dB | 2.8dBi, 5.8dBi, 6.3dBi | - | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
