RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

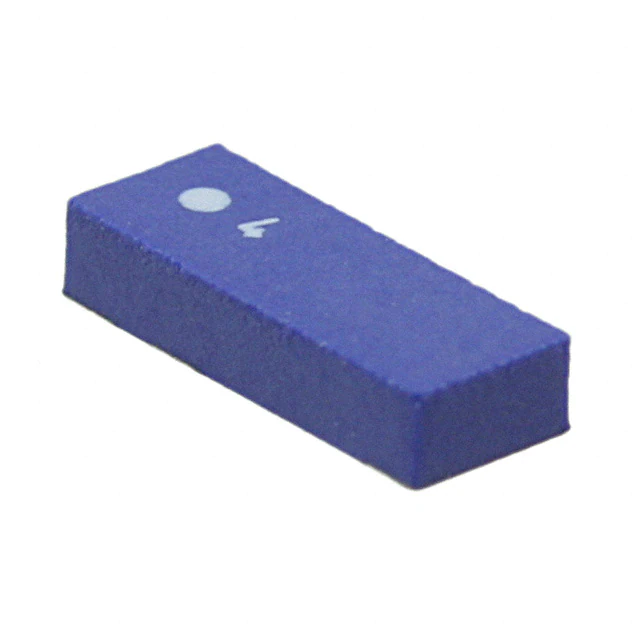

ANT5320LL24R2455ARF ANT 2.4GHZ/5GHZ CHIP SLDR SMD Pulse Electronics |
12,602 | 0.83 |
|
Datasheet |
5320 | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.39GHz ~ 2.51GHz, 4.55GHz ~ 5.45GHz | Chip | 2 | - | -10dB | 2.17dBi, 3.51dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.045" (1.15mm) | WLAN |
|

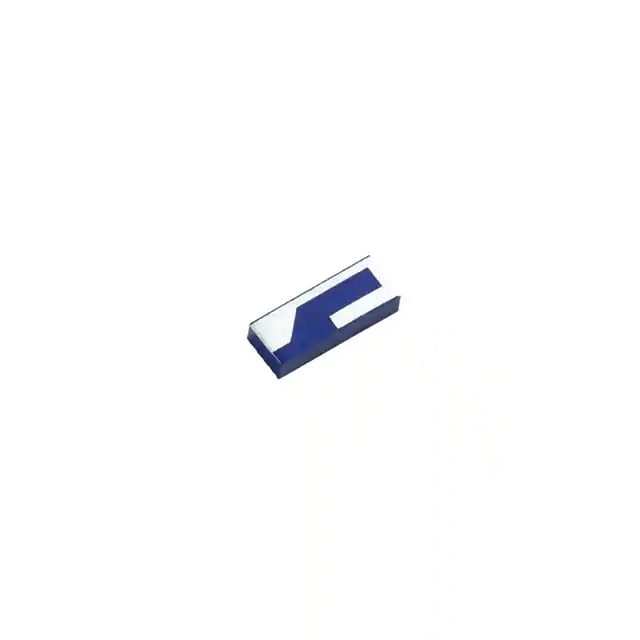

ANT5320LL14R1516A5320 GPS/GLONASS/GALILEO OR GPS/ Pulse Electronics |
6,833 | 0.76 |
|
Datasheet |
5320 | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Chip | 1 | - | 10dB | 1.46dBi | 1 W | - | Solder | - | - | - | Surface Mount | - | - |
|

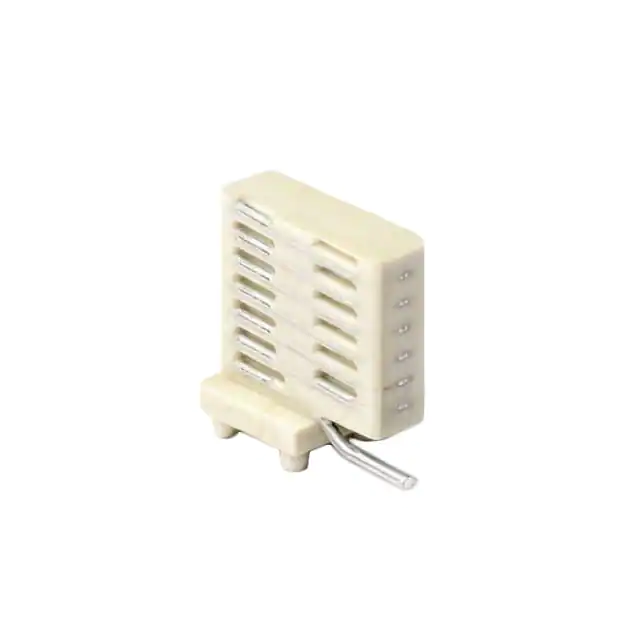

W3118ARF ANT 850MHZ HELICAL SOLDER SMD Pulse Electronics |
2,936 | 2.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz) | 850MHz | 869MHz ~ 894MHz | Helical | 1 | - | -9dB | 0dBi | - | - | Solder | - | - | - | Surface Mount | 0.315" (8.00mm) | GSM |
.jpg)
|

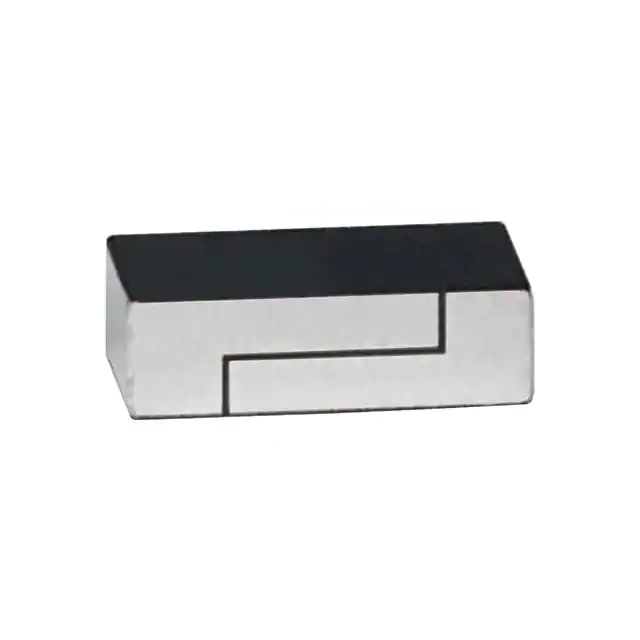

W3211ANT CER 902-928MHZ 10X3.2X5MM Pulse Electronics |
1,297 | 2.22 |
|
Datasheet |
Chip Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | - | -3dB, -10dB | 1.35dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | ISM |
|

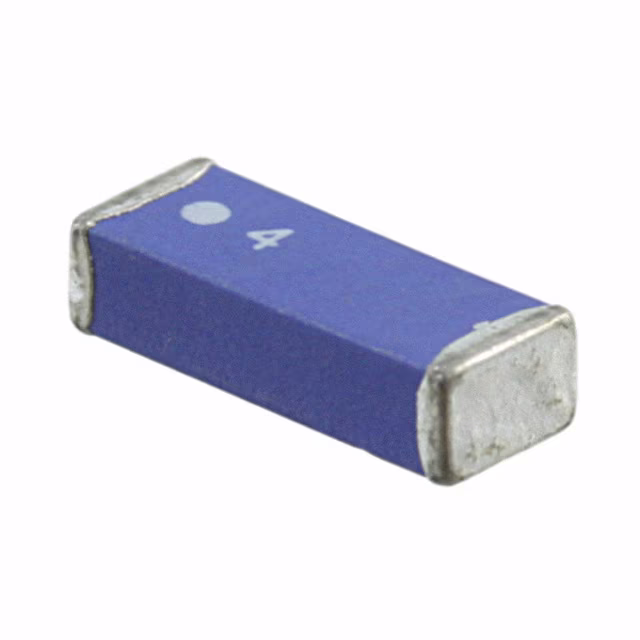

ANT5320LL04R2455ARF ANT 2.4GHZ/5GHZ CHIP SLDR SMD Pulse Electronics |
15,668 | 0.85 |
|
Datasheet |
5320 | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.375GHz ~ 2.525GHz, 5.05GHz ~ 5.95GHz | Chip | 2 | - | -6.5dB | 2.09dBi, 4.32dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.055" (1.40mm) | Wi-Fi |
|

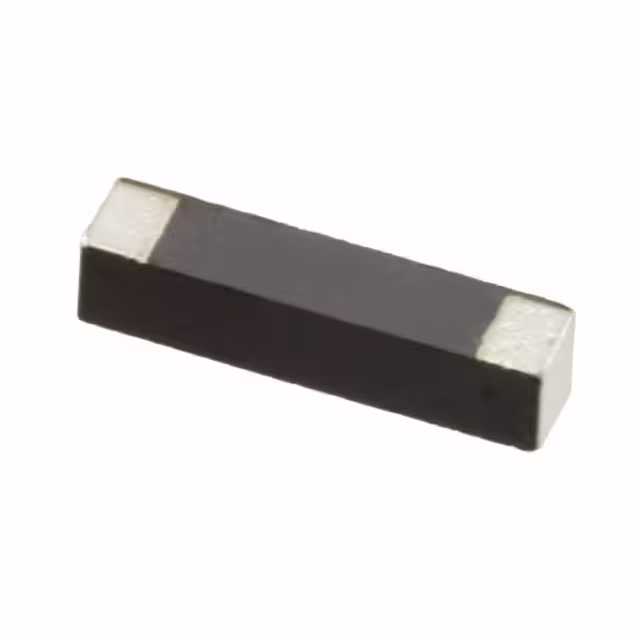

W3000RF ANT 868MHZ/1.575GHZ CHIP SLD Pulse Electronics |
1,475 | 1.88 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 868MHz, 1.575GHz, 2.4GHz | 858MHz ~ 878MHz, 1.565GHz ~ 1.585GHz, 2.4GHz ~ 2.483GHz | Chip | 3 | - | -10dB, -12dB, -12dB | -1.4dBi, 2dBi, 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ |
|

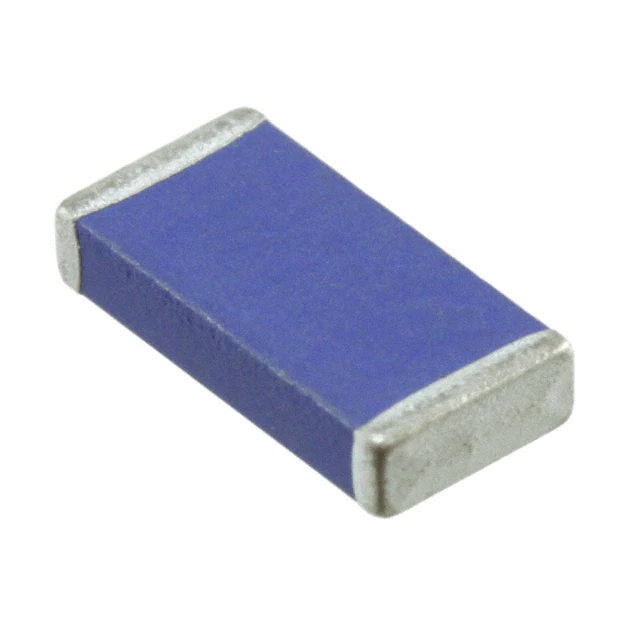

ANT6230LL01R1575ARF ANT 1.575GHZ CHIP SOLDER SMD Pulse Electronics |
1,750 | 1.33 |
|
Datasheet |
6230 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.548GHz ~ 1.602GHz | Chip | 1 | - | -10dB | 2.52dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.049" (1.25mm) | GPS |
|

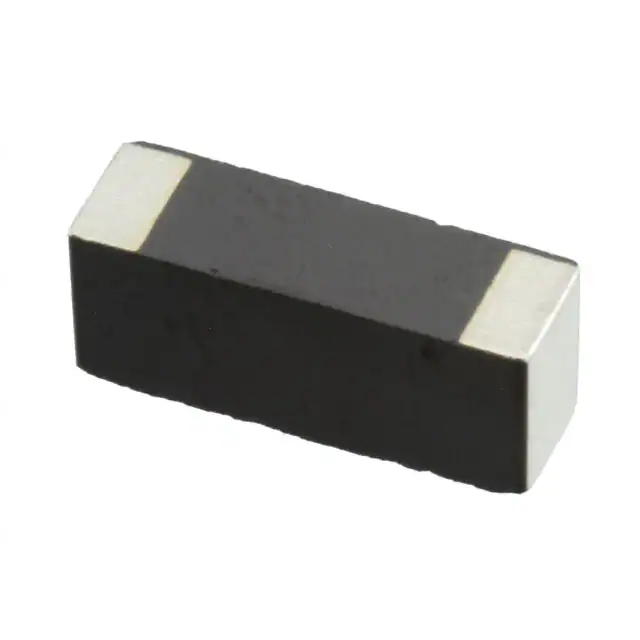

W3073RF ANT 850MHZ/900MHZ CHIP SLD Pulse Electronics |
1,259 | 2.78 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular, General ISM | Wide Band | 859MHz, 1.8GHz, 1.9GHz, 2.05GHz | 824MHz ~ 894MHz, 1.71GHz ~ 2.17GHz | Chip | 4 | - | -4.7dB, -3.5dB, -5.9dB, -3.3dB | 0.4dBi, 2.3dBi, 2.5dBi, 2.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GSM, PCS, WCDMA |
|
W3961B0050ANT CBRS FPC 3550-3980MHZ 50MM Pulse Electronics |
949 | 0.00 |
|
Datasheet |
W3961XXXXX | Bag | Active | - | UHF (3GHz ~ 4GHz) | 3.765GHz | 3.55GHz ~ 3.98GHz | PCB Trace | 1 | - | 10dB | 4.5dBi | 3 W | Cable - 50mm | U.FL | - | - | - | Adhesive | 0.006" (0.15mm) | General Purpose |
|
|
W3961B0100ANT CBRS FPC 3550-3980MHZ 100MM Pulse Electronics |
947 | 0.00 |
|
Datasheet |
W3961XXXXX | Bag | Active | - | UHF (3GHz ~ 4GHz) | 3.765GHz | 3.55GHz ~ 3.98GHz | PCB Trace | 1 | - | 10dB | 4.5dBi | 3 W | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.006" (0.15mm) | General Purpose |
