RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3230RF ANT 2.45GHZ CER PATCH PIN ADH Pulse Electronics |
182 | 4.35 |
|
Datasheet |
Ceramic Patch Antenna | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | -4dB | 6dBi | 5 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Bluetooth, Wi-Fi |
|

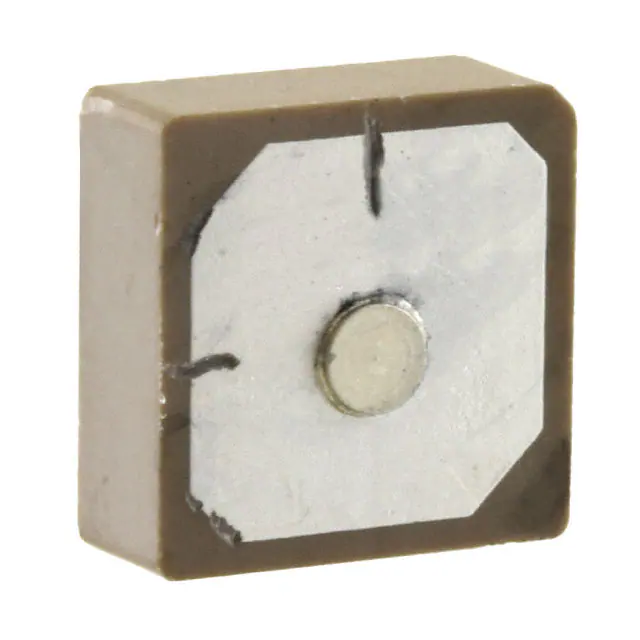

W3216RF ANT 1.575/1.602GHZ CER PATCH Pulse Electronics |
131 | 3.43 |
|
Datasheet |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | 1.4, 2.3 | - | -2dBi | - | - | Pin | - | - | - | Adhesive | 0.218" (5.53mm) | GLONASS, GPS |
|

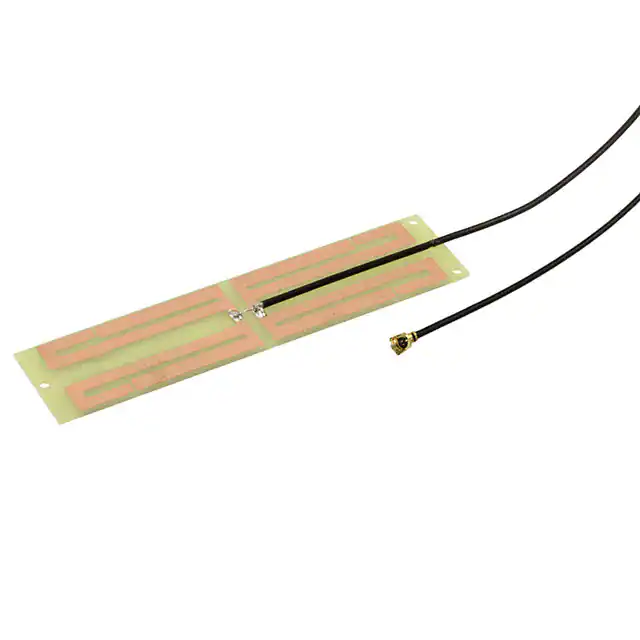

W3513RF ANT 2.4GHZ/5GHZ PCB TRACE SMD Pulse Electronics |
1,351 | 4.69 |
|
Datasheet |
- | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 2dBi | - | Cable - 250mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.035" (0.90mm) | Wi-Fi, WLAN |
|

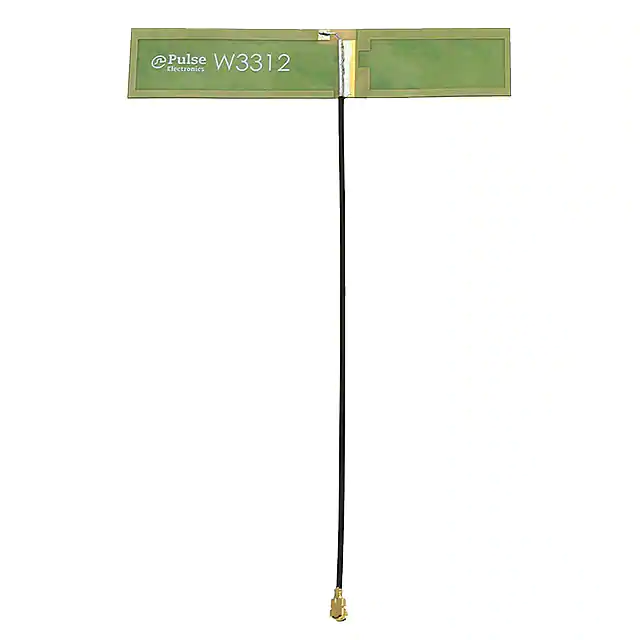

W3312B0100RF ANT 892MHZ PCB TRACE U.FL ADH Pulse Electronics |
3,765 | 4.72 |
|
Datasheet |
- | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 892MHz | 863MHz ~ 928MHz | PCB Trace | 2 | - | -8dB | 0.8dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.044" (1.13mm) | ISM |
|

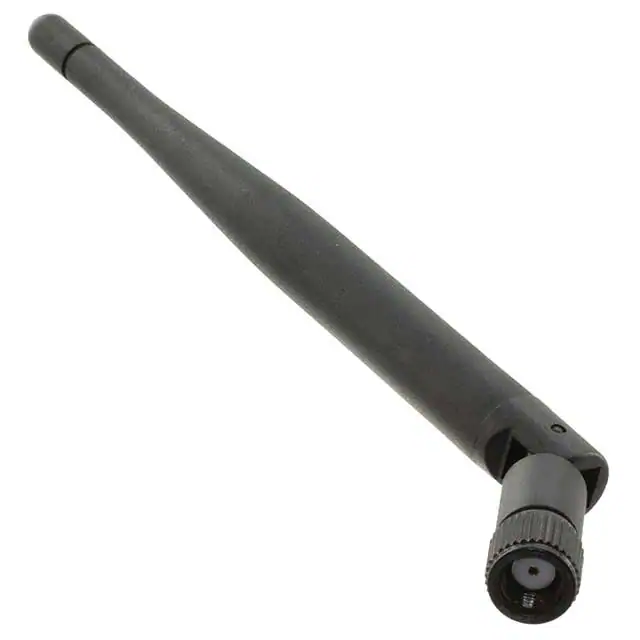

W1028BRF ANT 5.5GHZ WHIP TILT RP-SMA Pulse Electronics |
408 | 6.29 |
|
Datasheet |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 5.386" (136.80mm) | WLAN |
|

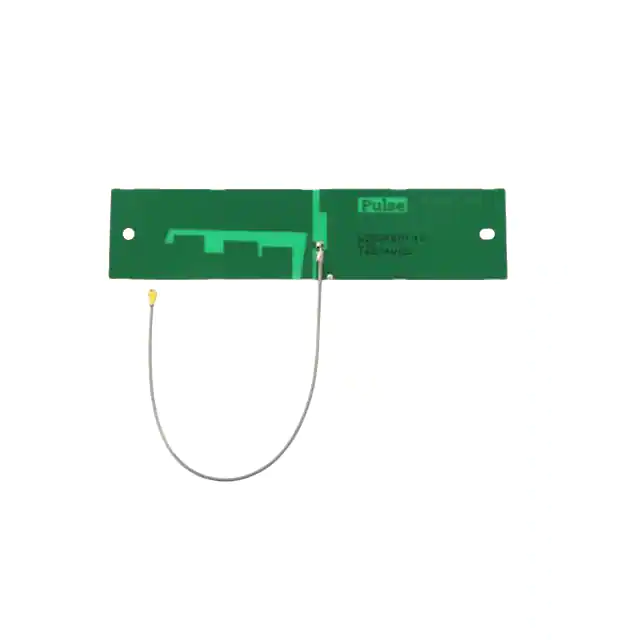

W3554B0140TPCB WITH ADHESIVE ANTENNA NPB Pulse Electronics |
8,082 | 5.67 |
|
Datasheet |
Internal PCB Antenna | Bulk | Active | - | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 5 | - | -4dB, -6dB | 1.9dBi, 3.2dBi | 5 W | Cable - 143mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.008" (0.20mm) | General Purpose |
|

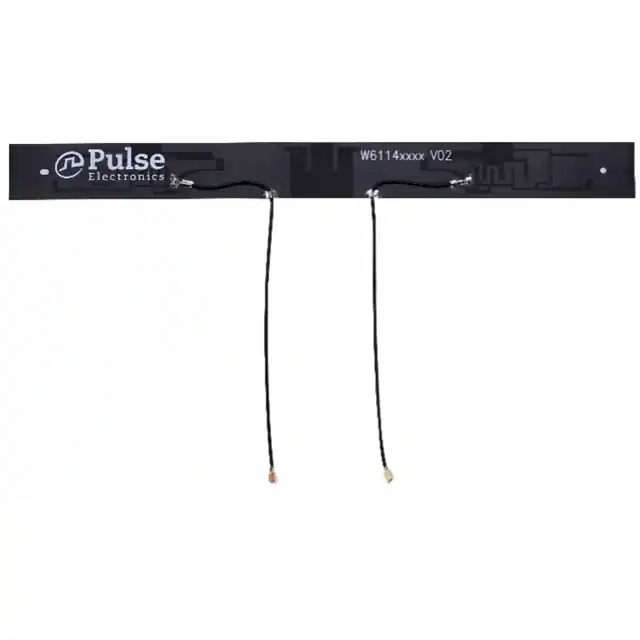

W6114B0100ANTENNA FLEX FPC 5G 617-7125 MHZ Pulse Electronics |
1,742 | 6.32 |
|
Datasheet |
W6114 | Bag | Active | Cellular | Wide Band | 788.5MHz, 2.0585GHz, 3.75GHz, 4.7GHz, 5.5375GHz, 6.5625GHz | 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 6GHz ~ 7.125GHz | Flat Patch | 6 | - | -5dB, -6dB, -5dB, -6dB, -5dB, -4dB | 1.5dBi, 3.8dBi, 4.6dBi, 5.8dBi, 5dBi, 4.8dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF | - | - | - | Adhesive | 0.006" (0.15mm) | 4G, 5G |
|

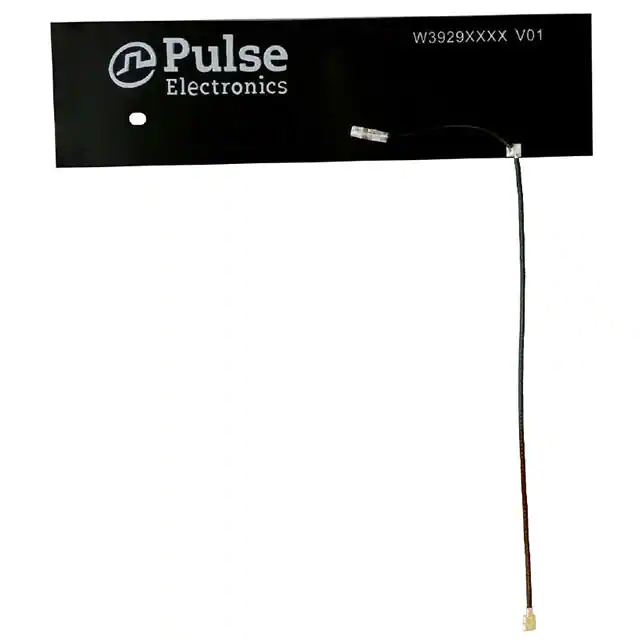

W3929B0100ANTENNA 0.617-3.9GHZ I-PEXMHF Pulse Electronics |
207 | 5.42 |
|
Datasheet |
GEMINI | Bag | Active | - | Wide Band | 788.5MHz, 2.2GHz, 3.65GHz | 617MHz ~ 3.9GHz | PCB Trace | 3 | - | -6dB | 2dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | General Purpose |
|

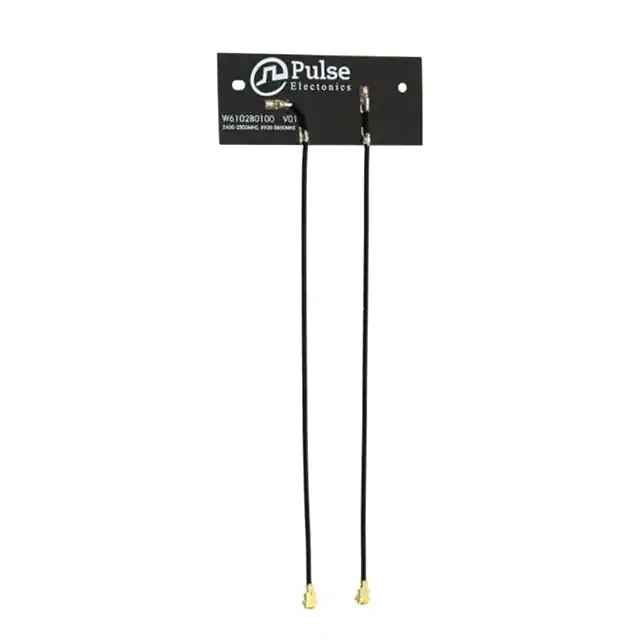

W6102B0100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH Pulse Electronics |
500 | 5.84 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 6dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
W5100RF ANT 2.4GHZ FLAT PATCH SLDR Pulse Electronics |
5,187 | 6.36 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.48GHz | Flat Patch | 1 | 3 | - | 1dBi | - | - | Solder | - | - | - | Adhesive | 0.047" (1.20mm) | Bluetooth, WLAN, Zigbee™ |
