RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

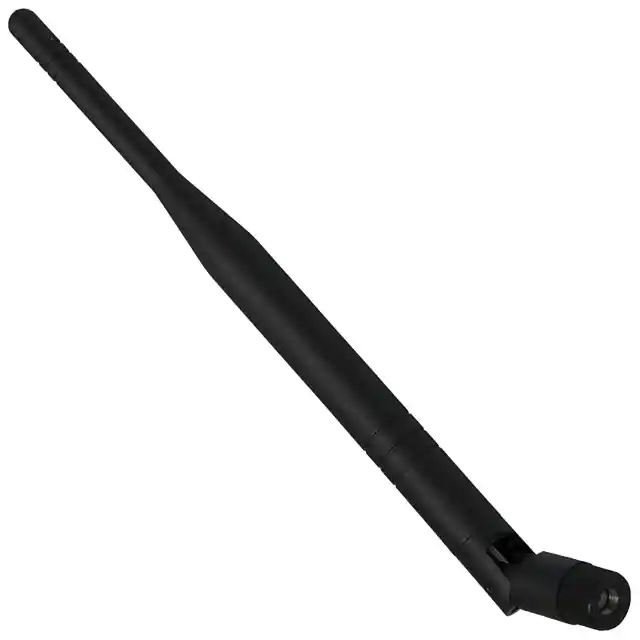

W1037RF ANT 2.4GHZ WHIP TILT 6.5" Pulse Electronics |
336 | 6.12 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 3.2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 7.819" (198.60mm) | Bluetooth, WLAN, Zigbee™ |
|

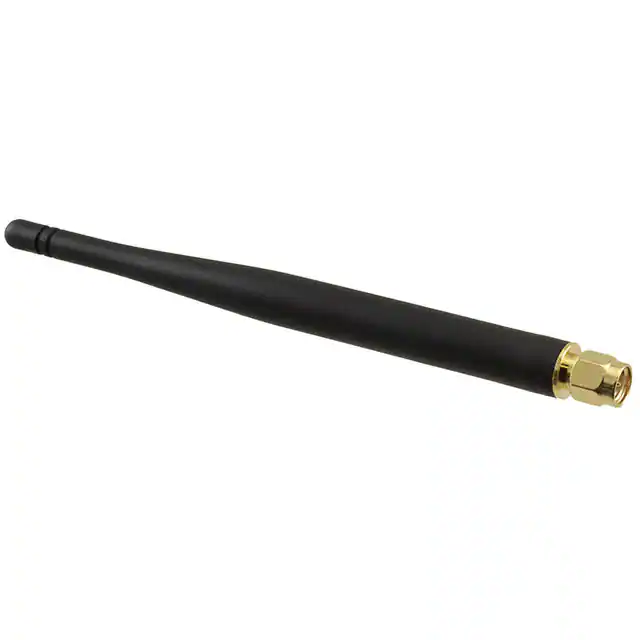

W5011RF ANT 2.4GHZ WHIP STR SMA MALE Pulse Electronics |
254 | 8.83 |
|
Datasheet |
- | Bulk | Active | 802.15.4 | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | - | -10dB | 1.5dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 5.122" (130.09mm) | ZigBee™ |
|

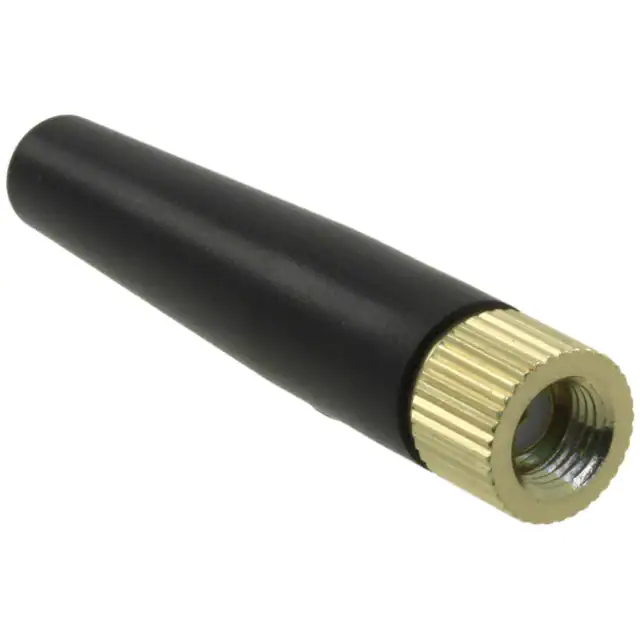

W1911RF ANT 850MHZ/900MHZ WHIP STR Pulse Electronics |
433 | 6.46 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | - | -4dB, -6dB | 1dBi, 2dBi, 2.5dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.929" (49.00mm) | GSM, WCDMA |
|

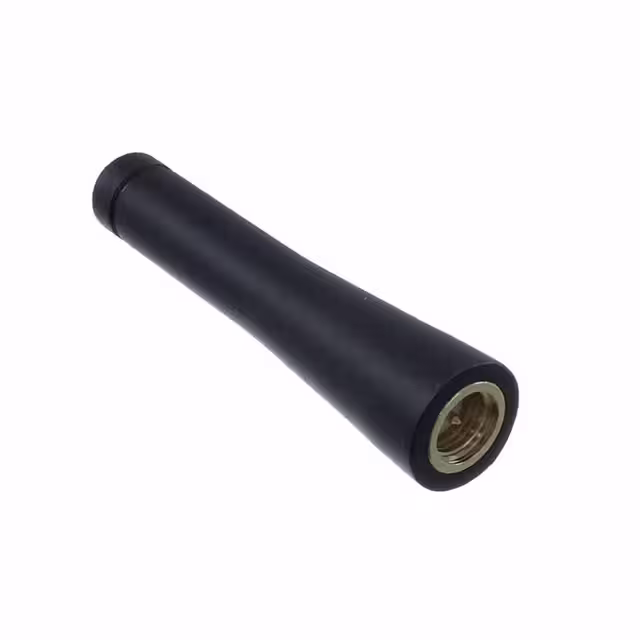

W1910-M3G PENTABAND 824-2170MHZ STRAIGH Pulse Electronics |
345 | 6.46 |
|
Datasheet |
Stubby Antenna | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 5 | - | -4dB, -6dB | 1dBi, 2dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.969" (50.00mm) | GSM, WCDMA |
|

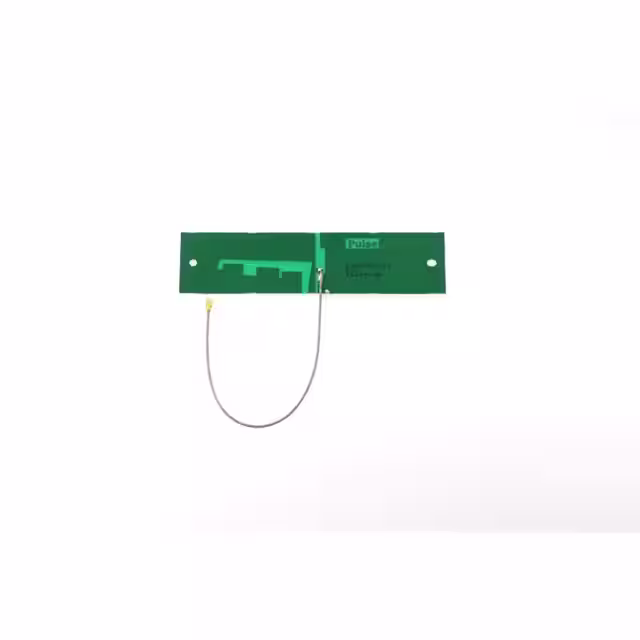

W3554G0384ANTENNA ASSEMBLY 6GHZ 384MM SMA Pulse Electronics |
895 | 8.83 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 384mm | SMA Male | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
|

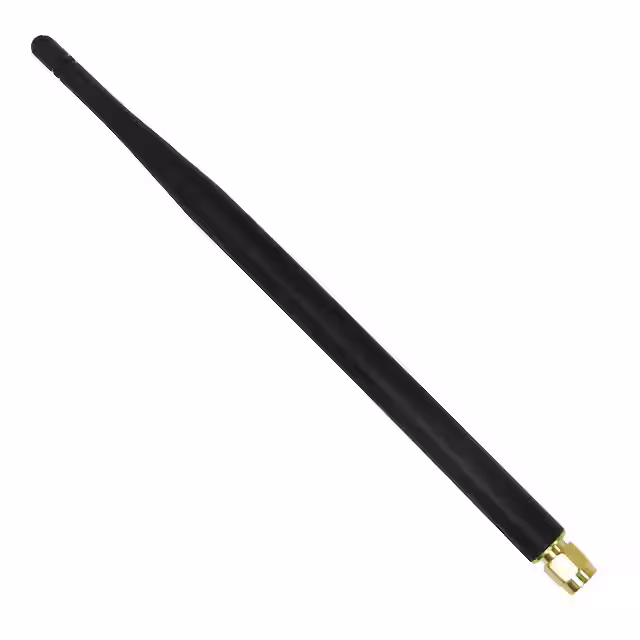

W5012RF ANT 868MHZ/915MHZ WHIP STR Pulse Electronics |
219 | 8.83 |
|
Datasheet |
- | Tray | Active | - | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 868MHz ~ 928MHz | Whip, Straight | 1 | - | -8dB | 2dBi | - | - | RP-SMA Male | IP65 | - | - | Connector Mount | 7.047" (179.00mm) | - |
|

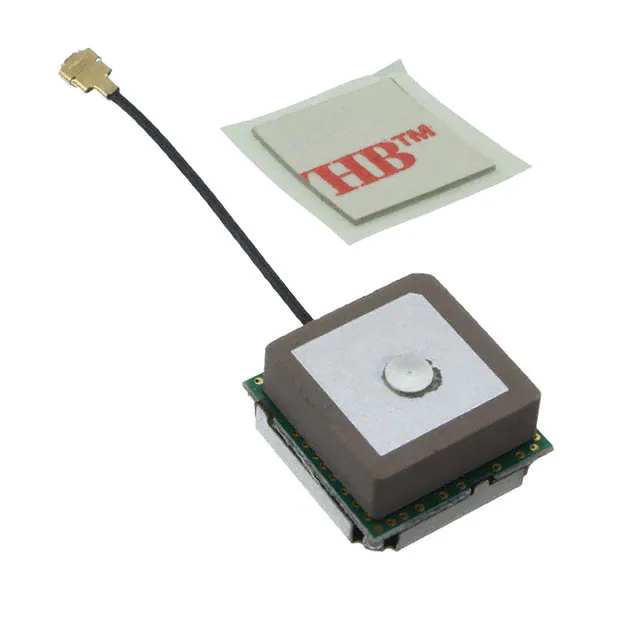

GPSMOD1333RF ANT 1.575GHZ CER PATCH U.FL Pulse Electronics |
170 | 11.98 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | - | 1dB | - | LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | - | GPS |
|

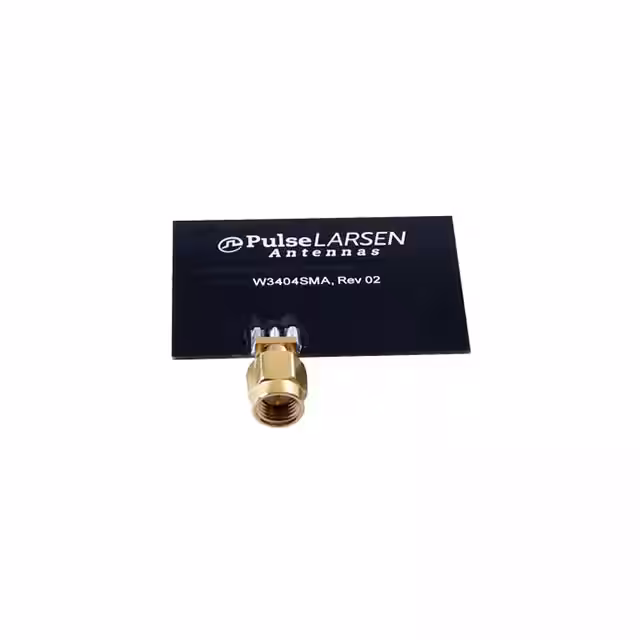

W3404SMAANT INT PCB 698-2690MHZ SMA Pulse Electronics |
142 | 7.54 |
|
Datasheet |
Internal PCB Antenna | Tray | Active | Cellular | Wide Band | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | 2 | -10dB | 2.2dBi, 4.4dBi | 3 W | - | SMA Male | - | - | - | Connector Mount | 0.028" (0.70mm) | LTE |
|
W5151ANTENNA 5G NR 4G LTE BLADE Pulse Electronics |
662 | 8.93 |
|
Datasheet |
- | Bag | Active | Cellular, WiFi | Wide Band | 788.5MHz, 4.2275GHz | 617MHz ~ 960MHz, 1.43GHz ~ 7.125GHz | Blade, Tilt/Swivel | 2 | - | -6dB | 0.9dBi, 3.8dBi | 3 W | - | SMA Male | IP65 | - | - | Connector Mount | 8.789" (223.24mm) | 2G, 3G, 4G, 5G, Wi-Fi 6E |
|

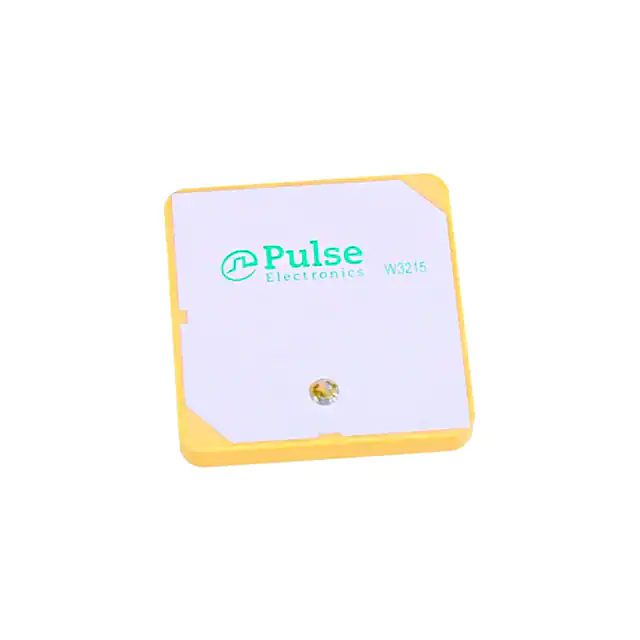

W3215ANT CER 902-928MHZ 40X40X6 PIN Pulse Electronics |
171 | 13.78 |
|
Datasheet |
Patch Antenna | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Ceramic Patch | 1 | - | -4dB, -20dB | 5dBi | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | ISM |
