RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARM52211DMRF ANT 829MHZ/1.582GHZ MOD PANEL Pulse Electronics |
1,839 | 153.21 |
|
Datasheet |
ARMADILLO | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.582GHz, 2.2GHz, 2.45GHz, 5.537GHz | 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Module | 5 | 2, 2.5 | - | 4.9dBi, 5.3dBi, 4.6dBi, 6.6dBi | - | Cable - 5.18m, LNA | SMA Male (3), RP-SMA Male (2) | IP67 | - | - | Panel Mount | 1.772" (45.00mm) | GPS, LTE, Wi-Fi |
|
GPSMB502RF ANT MODULE RP-SMA MALE PAN MT Pulse Electronics |
4,818 | 158.75 |
|
Datasheet |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | - | - | Module | 6 | 1.5 | - | 5dBi | - | LNA, Filter | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 2.992" (76.00mm) | GPS, LTE, Wi-Fi |
|
W3714RF ANT 5.45GHZ PCB TRACE SLDR Pulse Electronics |
2,722 | 0.68 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.45GHz | 4.9GHz ~ 6GHz | PCB Trace | 1 | 2 | - | 4.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.094" (2.40mm) | General Purpose |
|
|
W3713RF ANT 5.45GHZ PCB TRACE SLDR Pulse Electronics |
2,720 | 0.68 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.45GHz | 4.9GHz ~ 6GHz | PCB Trace | 1 | 2 | - | 4.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.094" (2.40mm) | General Purpose |
|
|
W3716RF ANT 2.45GHZ PCB TRACE SLDR Pulse Electronics |
2,409 | 1.40 |
|
Datasheet |
Embedded PCB Ant | Bag | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.6 | - | 3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | General Purpose |
|

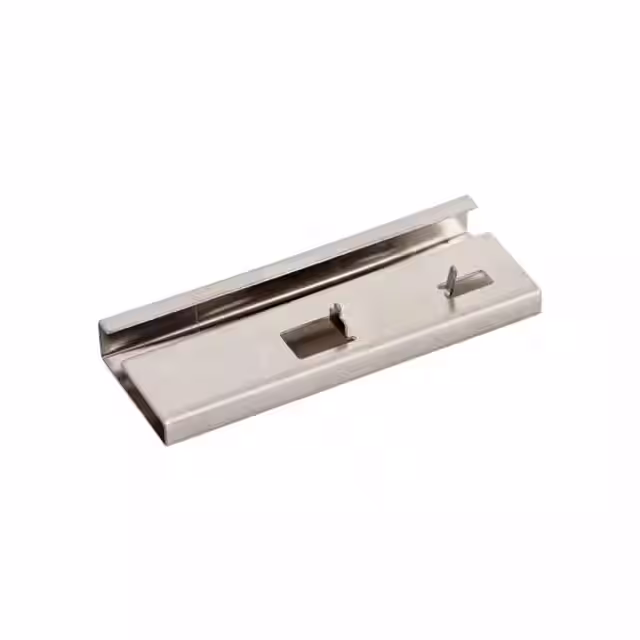

W3403ANT EMBD METAL STAMP 868-920MHZ Pulse Electronics |
2,864 | 1.78 |
|
Datasheet |
EMBEDDED SMT | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 894MHz | 868MHz ~ 920MHz | Stamped Metal | 1 | 2 | -12dB | -1.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.189" (4.80mm) | Sigfox |
|
|
W3014RF ANT 920MHZ CHIP SOLDER SMD Pulse Electronics |
949 | 1.91 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 920MHz | 880MHz ~ 960MHz | Chip | 1 | - | -7dB | -0.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | - |
|

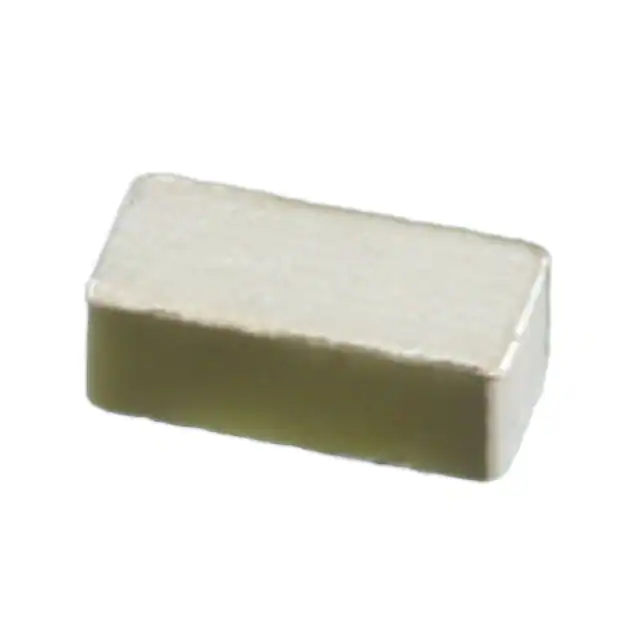

W3078RF ANT 2.4GHZ/5GHZ CHIP SLDR SMD Pulse Electronics |
1,388 | 1.88 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.484GHz, 4.95GHz ~ 5.85GHz | Chip | 2 | - | -10dB, -6dB | 1.7dBi, 4.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | WLAN, Zigbee™ |
|

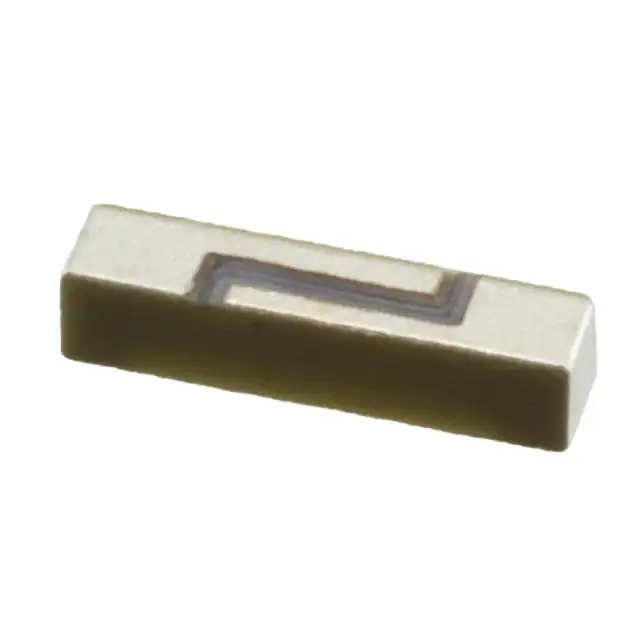

W3062ARF ANT 1.575GHZ CHIP SOLDER SMD Pulse Electronics |
2,053 | 2.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Chip | 1 | - | -10dB | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | GPS |
|
|
W3225ANT CERAMIC PATC H 25X25X4MM GPS Pulse Electronics |
1,600 | 3.16 |
|
Datasheet |
Ceramic Patch | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | - | -10dB | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
