RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3435B0100ANTENNA ASSEMBLY 6GHZ 100MM IPEX Pulse Electronics |
140 | 7.00 |
|
Datasheet |
Internal Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 788.5MHz, 2.2GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | PCB Trace | 2 | - | -5dB | 0dBi, 2.5dBi | 3 W | Cable - 100mm | I-PEX MHF | - | - | - | Adhesive | 0.079" (2.00mm) | 3G, 4G, 5G |
|

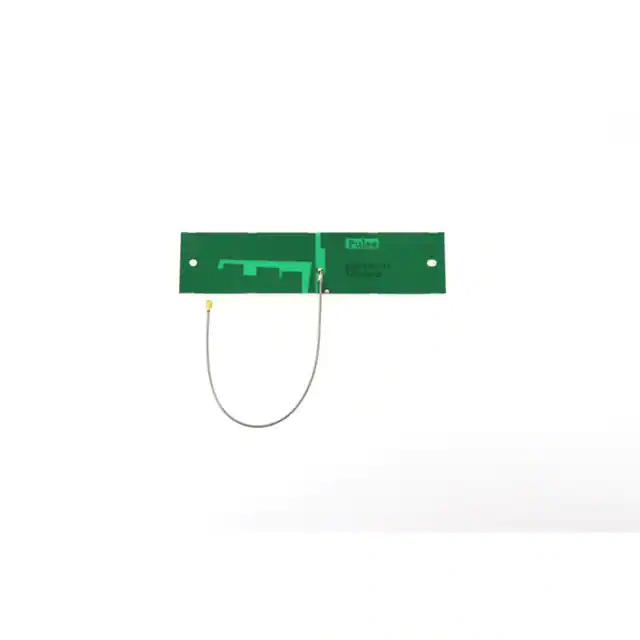

W3554G0100ANTENNA ASSEMBLY 6GHZ 100MM SMA Pulse Electronics |
992 | 9.01 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 100mm | SMA Male | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
|
W5028RF ANT 2.4/5GHZ WHIP RA RP-SMA Pulse Electronics |
102 | 10.29 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Right Angle | 2 | 2 | - | 2.7dBi, 3dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 5.040" (128.02mm) | Bluetooth, WLAN, Zigbee™ |
|
W1920G0915RF ANT 892MHZ/1.9GHZ FLAT BAR Pulse Electronics |
148 | 13.78 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Bar | 2 | - | - | 1dBi, 1.5dBi | - | - | SMA Male | - | - | - | Adhesive | 0.197" (5.00mm) | GSM |
|

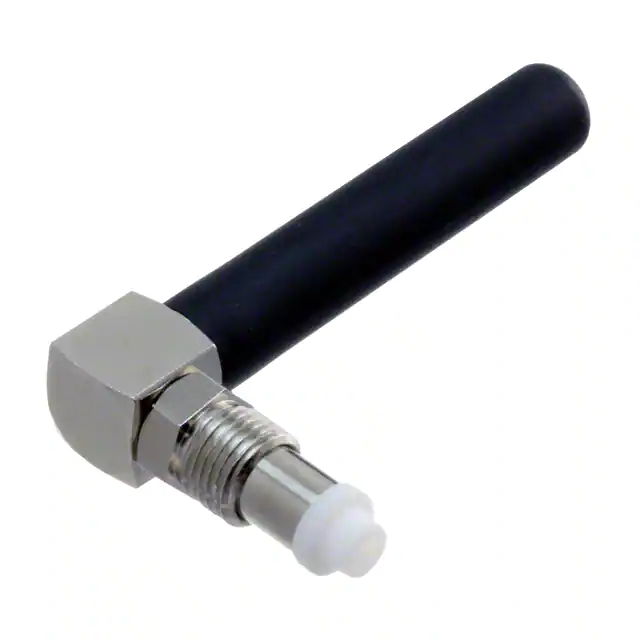

W1903ANT EXT STICK 824-960/1710-2170 Pulse Electronics |
267 | 9.89 |
|
Datasheet |
External Antenna | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 2 | - | - | 0dBi | 2 W | - | FME Female | - | - | - | Connector Mount | 1.969" (50.00mm) | 2G, 3G, 4G |
|

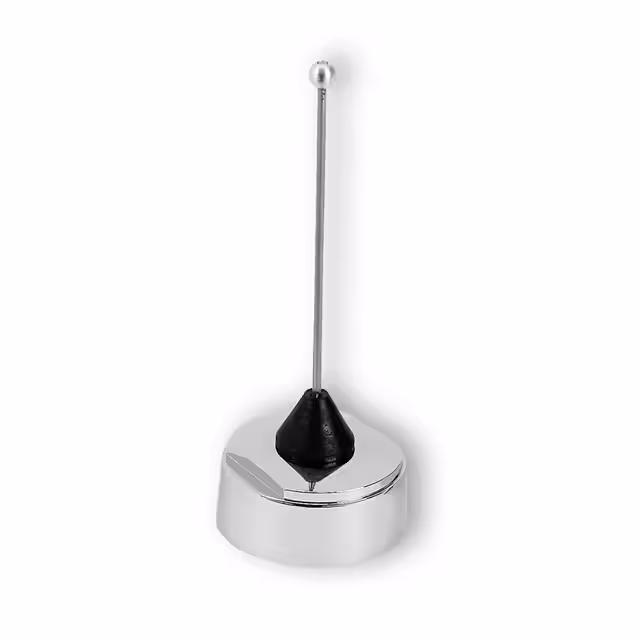

NMOQW700STAINLESS BASE / WHIP, 0 DB / 2 Pulse Electronics |
124 | 17.27 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 773MHz | 740MHz ~ 806MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 3.000" (76.20mm) | - |
|

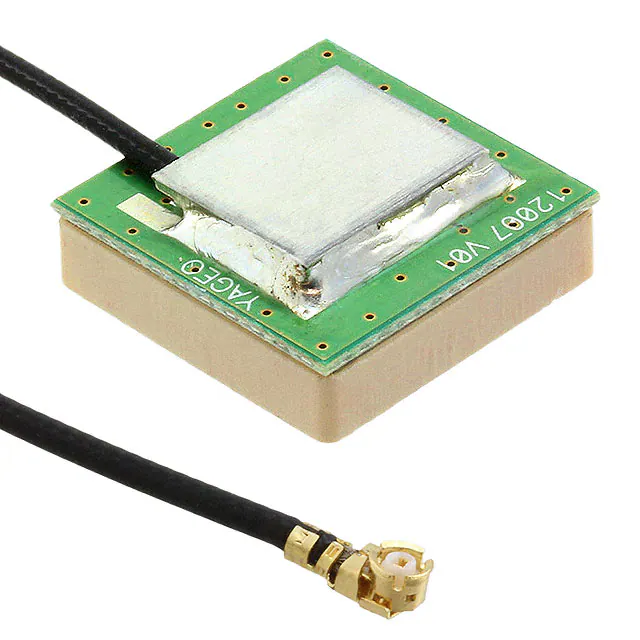

ANT1818JB30B1575ARF ANT 1.575GHZ CER PATCH CAB Pulse Electronics |
118 | 14.95 |
|
Datasheet |
1818 | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.561GHz ~ 1.589GHz | Ceramic Patch | 1 | 2 | - | -2.67dBic | - | Cable - 100mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.276" (7.00mm) | GPS |
|
NMOC/P3EBASE WHIP ENCLOSED, 4 DBI, 806 - Pulse Electronics |
188 | 43.81 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.92GHz | 824MHz ~ 960MHz, 1.85GHz ~ 1.99GHz | Whip, Straight | 1 | - | - | 4dBi | 10 W | - | NMO | - | - | - | Magnetic | 4.700" (119.38mm) | - |
|
ICEFINWDMNRF ANT 2.4GHZ/5.4GHZ BLADE N FEM Pulse Electronics |
134 | 54.44 |
|
Datasheet |
ICEFIN | Bulk | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Dome | 2 | 2 | - | 6.2dB | 30 W | - | N Type Female | IP67 | - | - | Connector Mount | 2.624" (66.66mm) | - |
|

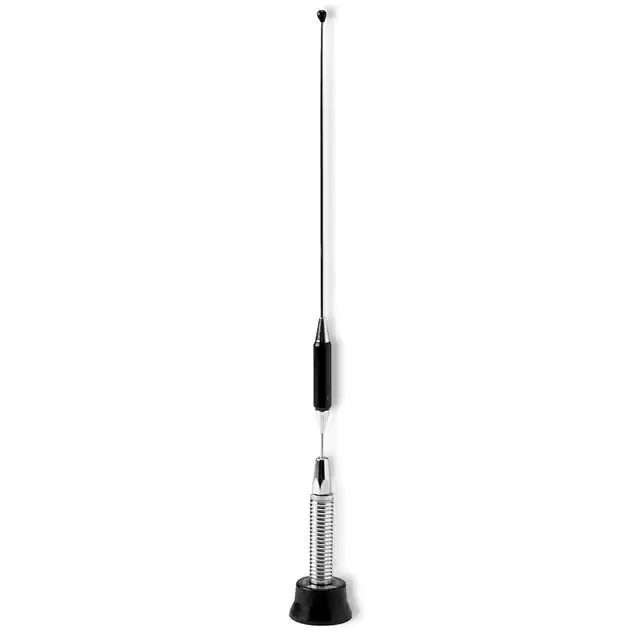

NMO700STAINLESS SPRING BASE / WHIP, EN Pulse Electronics |
1,262 | 53.07 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 773MHz | 740MHz ~ 806MHz | Whip, Straight | 1 | - | - | 5.6dBi | 200 W | - | NMO | - | - | - | Magnetic | 12.750" (323.85mm) | - |
