RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W5029RPG2.4-2.5 / 5.15-5.925 GHZ STICK A Pulse Electronics |
135 | 3.96 |
|
Datasheet |
External Antenna | Bulk | Active | 802.15.4, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.538GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 2 | - | -10dB, -4dB | 1.8dBi, 2.55dBi | 1 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 2.992" (76.00mm) | DSRC, WLAN, Zigbee™ |
|

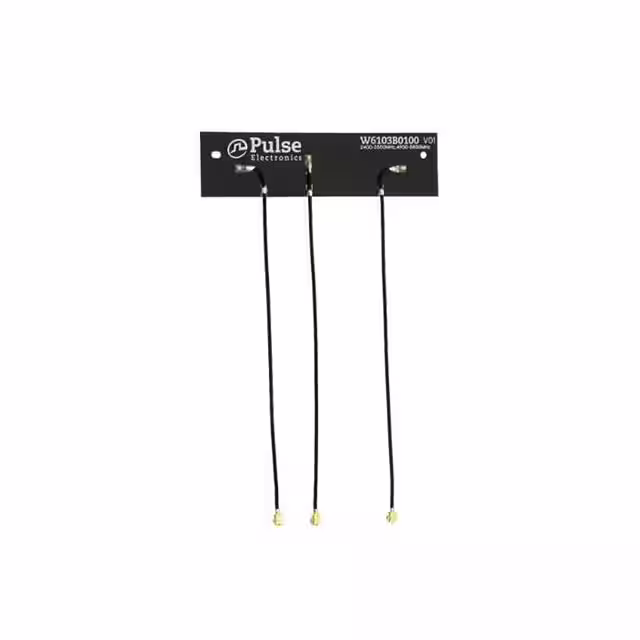

W6103B0100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH Pulse Electronics |
214 | 4.16 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 1 | 2 | - | 4.5dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

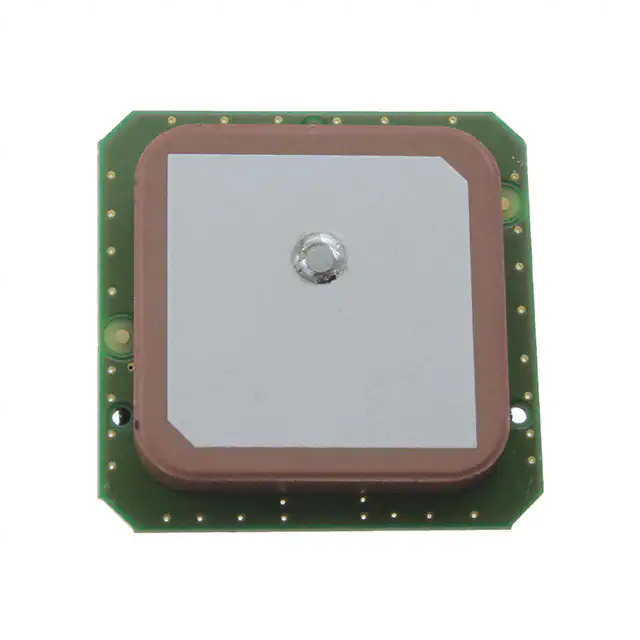

GPSMOD2515RF ANT 1.575GHZ CER PATCH SLD Pulse Electronics |
330 | 8.76 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | - | 1dB | - | LNA | Solder | - | - | - | Surface Mount | - | GPS |
|
|
W6102B0100MHF4ANTENNA MIMO WIFI Pulse Electronics |
330 | 7.08 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ANT8010JLC1B1516AANTENNA PATCH 1.6GHZ GPS/GLO Pulse Electronics |
890 | 8.52 |
|
Datasheet |
8010 | Box | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | - | Ceramic Patch | 2 | 2 | - | 3.62dBi, 3.71dBi | - | Cable - 100mm, LNA, Filter | I-PEX | - | - | - | - | 0.075" (1.90mm) | GLONASS, GPS |
|

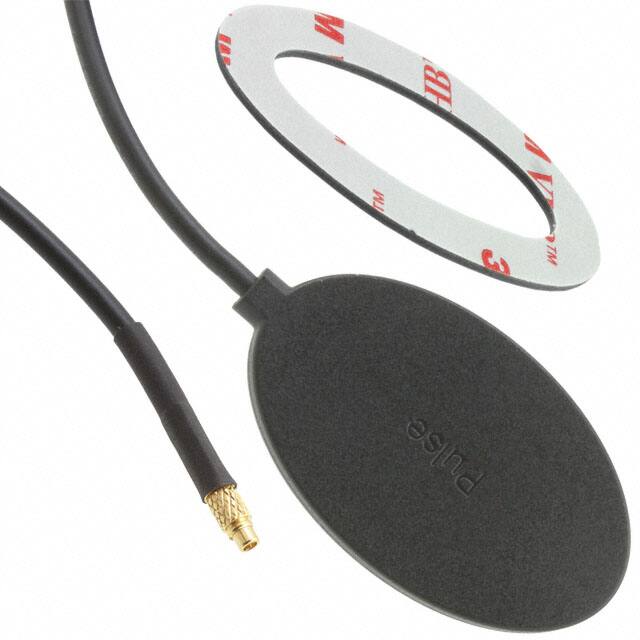

W4000D197RF ANT 1.575GHZ MODULE MMCX MALE Pulse Electronics |
134 | 0.00 |
|
Datasheet |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Module | 1 | 1.5 | - | 1.5dBi | - | LNA | MMCX Male | - | - | - | Adhesive | 1.969" (50.00mm) | GPS |
|
|
OD617-6000M243ANT DAS OMNI 4G LTE 5G CBRS MIMO Pulse Electronics |
4,424 | 0.00 |
|
Datasheet |
Omni Antenna | Box | Active | Cellular | Wide Band | 711.5MHz, 883MHz, 1.45GHz, 2.195GHz, 3.55GHz, 5.45GHz | 617MHz ~ 806MHz, 806MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | Module | 6 | 1.8 | - | 1.5dBi, 2.2dBi, 3.5dBi, 4.5dBi, 6dBi, 6dBi | 50 W | Cable - 300mm | 4.3/10 - Female (2) | IP50 | - | - | Through Hole | 0.709" (18.00mm) | 4G, 5G |
|
|
RO2406NMRF ANT 2.4GHZ WHIP STR N MALE Pulse Electronics |
159 | 41.82 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 6dBi | 20 W | - | N Type Male | IP67 | - | - | Connector Mount | 11.830" (300.48mm) | - |
|
|
LPTNG24-71DMG0457ANT WIFI 6E/7 TRI BAND SMA MALE Pulse Electronics |
4,090 | 0.00 |
|
Datasheet |
Monopole Antenna | Bag | Active | General ISM, WiFi | Wide Band | 2.45GHz, 6.012GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 7.125GHz | Module | 2 | 2, 2.5 | - | 2.6dBi, 2.9dBi | 3 W | Cable - 457.2mm | SMA Male | IP67 | - | - | Direct Mount | 1.420" (36.07mm) | DSRC, ISM, Wi-Fi |
|
GPSLPMB403RF ANT 829MHZ/2.2GHZ MODULE ADH Pulse Electronics |
2,521 | 70.41 |
|
Datasheet |
Jaguar | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 2.2GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz, 4.9GHz ~ 5.9GHz | Module | 3 | 2.2 | - | 5.4dBi | - | Cable - 600mm | RP-SMA Male (1), RP-TNC Male (1), SMA Male (1), TNC Male (1) | IP67 | - | - | Adhesive | 0.949" (24.10mm) | Beidou, Galileo, GLONASS, GPS, LTE, Wi-Fi |
