RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANTX100P112B24553RF ANT 2.45/5.5125GHZ FLAT PATCH Pulse Electronics |
1,958 | 3.99 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Flat Patch | 2 | 2.5 | - | 2.2dBi, 2.2dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

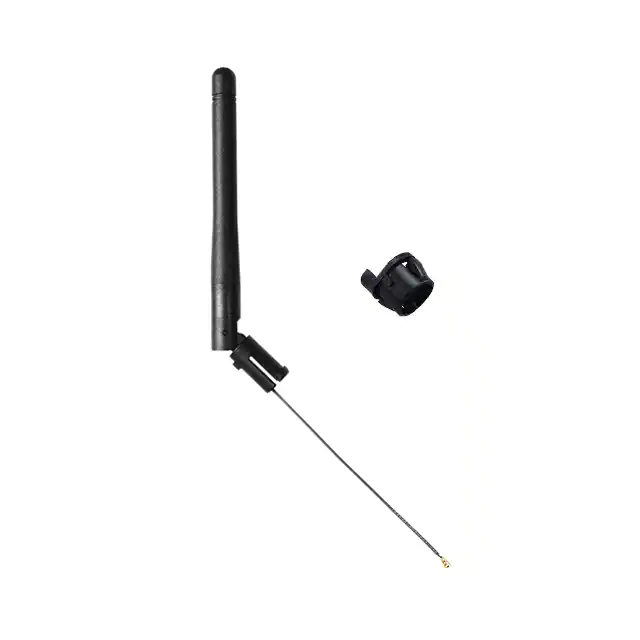

W1049B090RF ANT 2.4GHZ WHIP/TILT CONN MT Pulse Electronics |
798 | 4.10 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2dBi | - | Cable - 229mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.248" (82.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

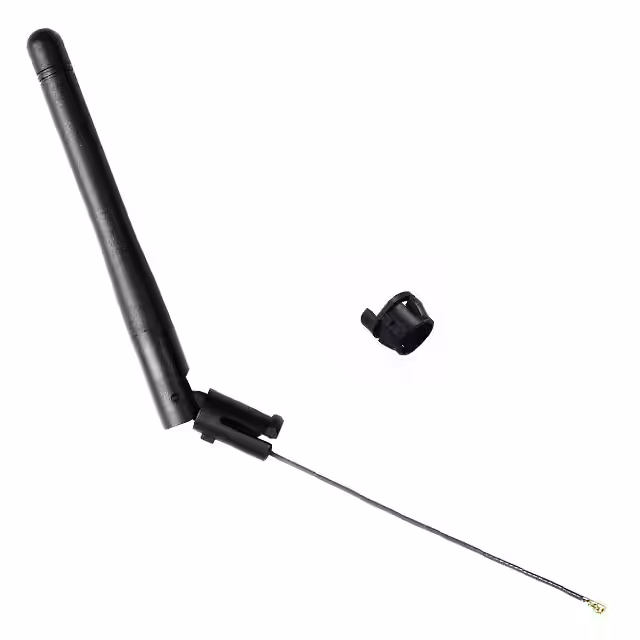

W1049B120RF ANT 2.4GHZ WHIP/TILT CONN MT Pulse Electronics |
833 | 4.41 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 2dBi | - | Cable - 305mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 3.248" (82.50mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

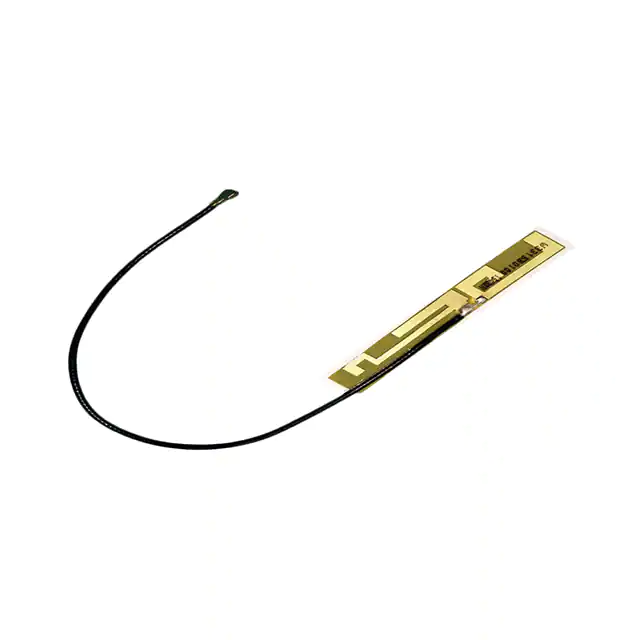

W3315B0100RF ANT 2.4/5.4GHZ PATCH IPEX Pulse Electronics |
664 | 4.33 |
|
Datasheet |
Internal Antenna | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 2dBi, 5dBi | 2 W | Cable - 100mm | I-PEX MHF-A13 | - | - | - | Adhesive | - | Bluetooth, WLAN, Zigbee™ |
|
W3915RF ANT 920MHZ/1.59GHZ CAB 100MM Pulse Electronics |
190 | 4.75 |
|
Datasheet |
- | Bulk | Active | Navigation | Wide Band | 920MHz, 1.59GHz, 1.94GHz | 880MHz ~ 960MHz, 1.575GHz ~ 1.605GHz, 1.71GHz ~ 2.17GHz | Flat Patch | 3 | - | 8dB | 2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | GNSS |
|

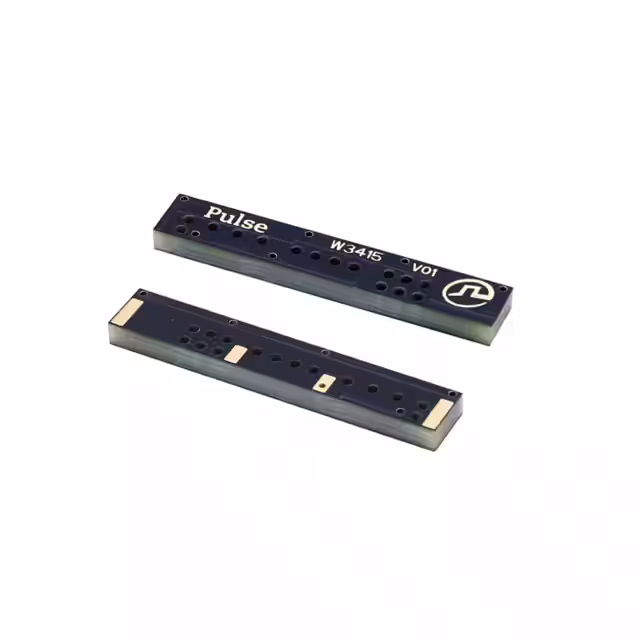

W3415ANTENNA EMBED PCB 617MHZ-6GHZ Pulse Electronics |
2,303 | 5.20 |
|
Datasheet |
Embedded Antenna | Tape & Reel (TR) | Active | Cellular | Wide Band | 788.5MHz, 1.55GHz, 2.2GHz, 3.65GHz, 5.45GHz | 617MHz ~ 960MHz, 1.4GHz ~ 1.7GHz, 1.71GHz ~ 2.69GHz, 3.4GHz ~ 3.9GHz, 4.9GHz ~ 6GHz | Chip | 5 | - | -4dB | -1dBi, -1dBi, 2.5dBi, 2.5dBi, 2.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | 4G, 5G |
|

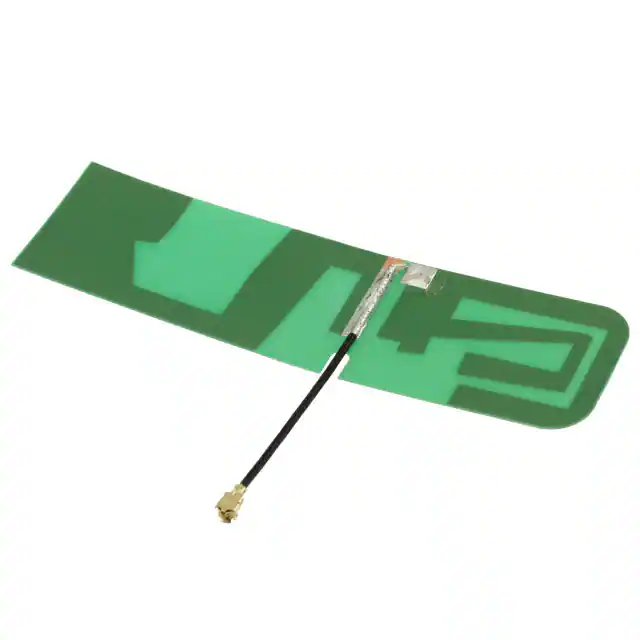

W3501RF ANT 892MHZ/1.9GHZ PCB TRACE Pulse Electronics |
374 | 5.39 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | - | -7dB, -8dB | 1.5dBi, 3.75dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.008" (0.20mm) | GSM |
|

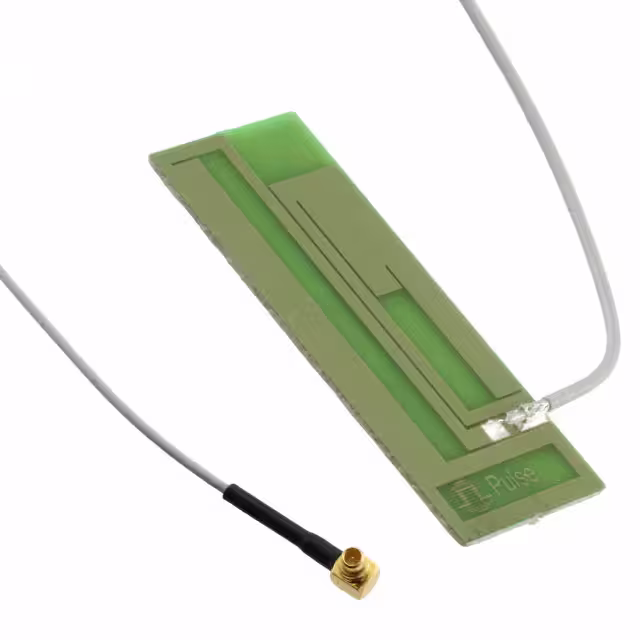

W3538E0200RF ANT 850/900MHZ PCB TRAC 200MM Pulse Electronics |
547 | 5.84 |
|
Datasheet |
- | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | -6dB | 2.8dBi, 5.8dBi, 6.3dBi | - | Cable - 200mm | MMCX Male | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
|

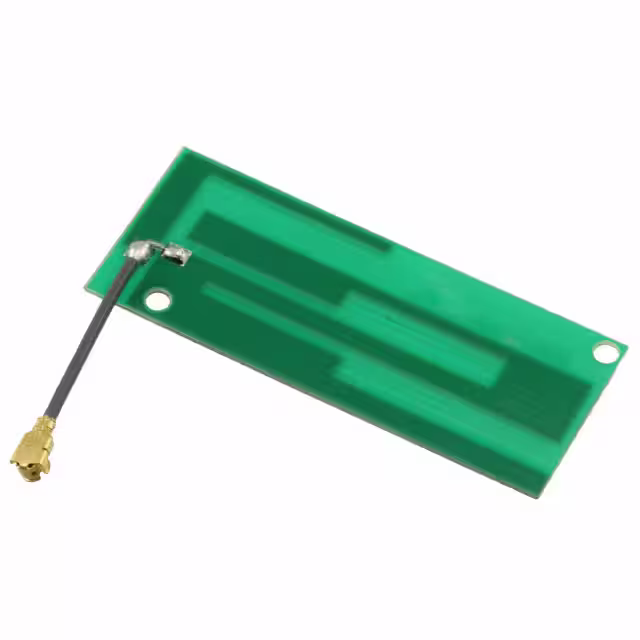

W3502RF ANT 892MHZ/1.9GHZ PCB TRACE Pulse Electronics |
389 | 4.97 |
|
Datasheet |
- | Bulk | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | PCB Trace | 2 | - | -6dB, -4dB | 2dBi, 1dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.020" (0.50mm) | GSM |
|
W3554G0457ANTENNA ASSEMBLY 6GHZ 457MM SMA Pulse Electronics |
957 | 8.93 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 457mm | SMA Male | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
