RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

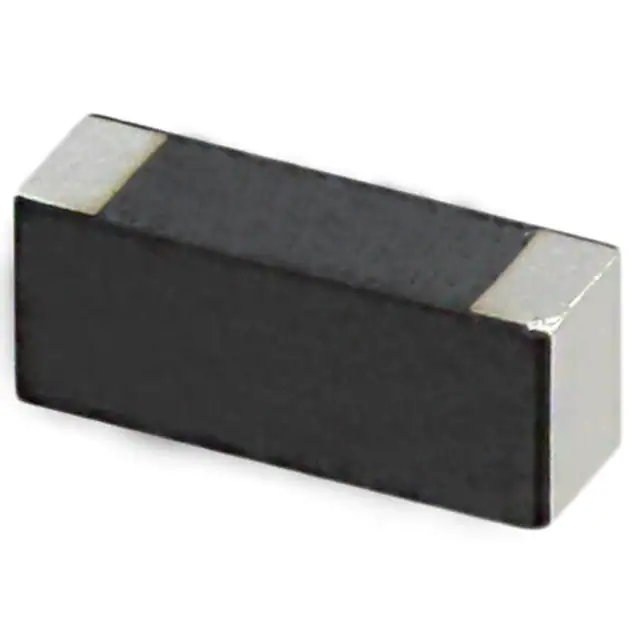

W3016RF ANT 868MHZ CHIP SOLDER SMD Pulse Electronics |
7,321 | 1.78 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 844MHz ~ 904MHz | Chip | 1 | - | -15dB | -2.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | - |
|

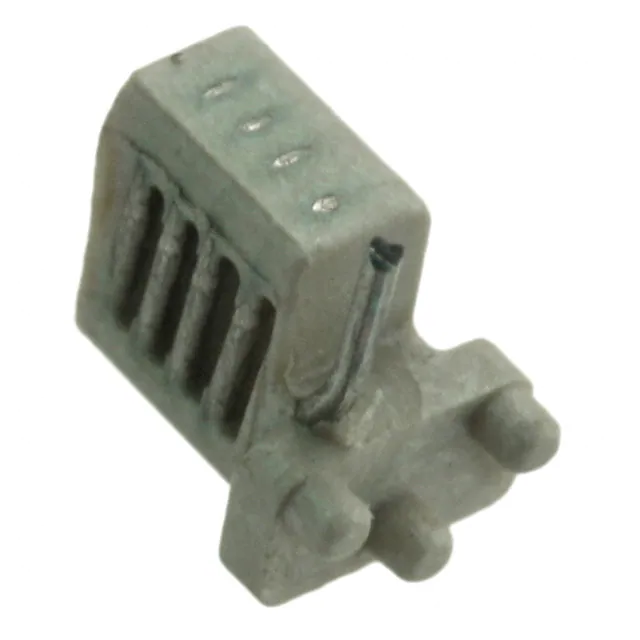

W3110RF ANT 1.575GHZ HELICAL SLDR SMD Pulse Electronics |
581 | 1.81 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Helical | 1 | - | -16dB | 1.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.217" (5.50mm) | GPS |
|
W3047ARF ANT 850MHZ/1.9GHZ CHIP SLD Pulse Electronics |
7,184 | 1.91 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 1.9GHz | 869MHz ~ 894MHz, 1.93GHz ~ 1.99GHz | Chip | 2 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | GSM |
|

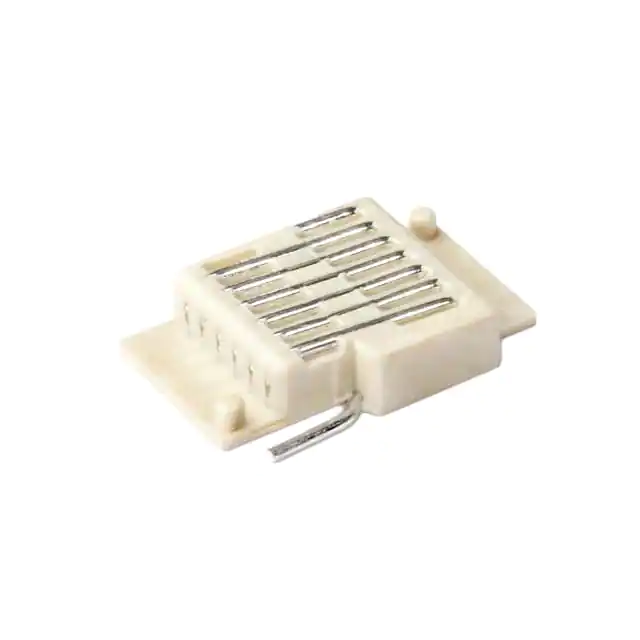

W3117RF ANT 881MHZ HELICAL SOLDER SMD Pulse Electronics |
437 | 1.91 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 881MHz | 869MHz ~ 894MHz | Helical | 1 | - | -9dB | 0dBi | - | - | Solder | - | - | - | Surface Mount | 0.098" (2.50mm) | - |
|

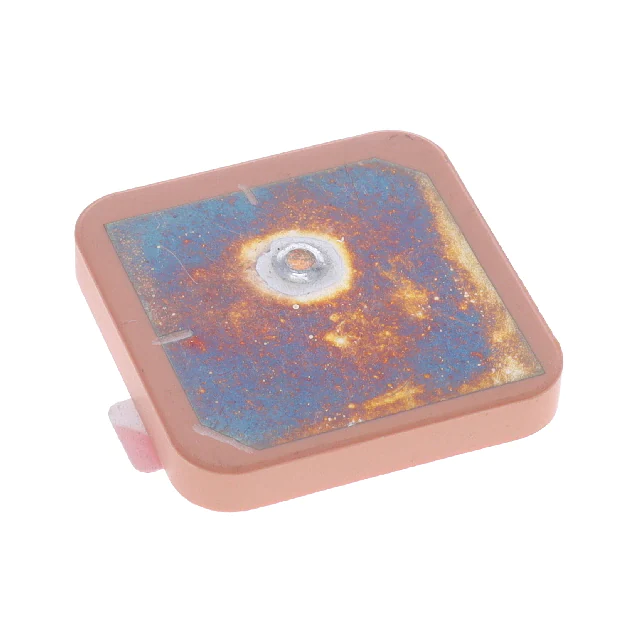

ANT2525B00FT1516SRF ANT 1.59GHZ CER PATCH PIN ADH Pulse Electronics |
460 | 2.92 |
|
Datasheet |
2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 1 | 2 | - | 4.66dBi, 4.97dBi | 1 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|

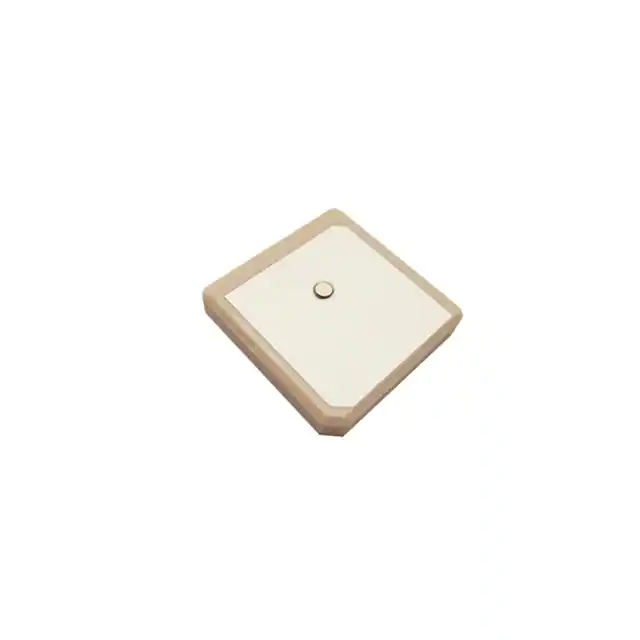

ANT1818B00FTGNSSSANTENNA PATCH GNSS Pulse Electronics |
960 | 2.41 |
|
Datasheet |
1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 1 | - | 3dB | -2dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GNSS |
|

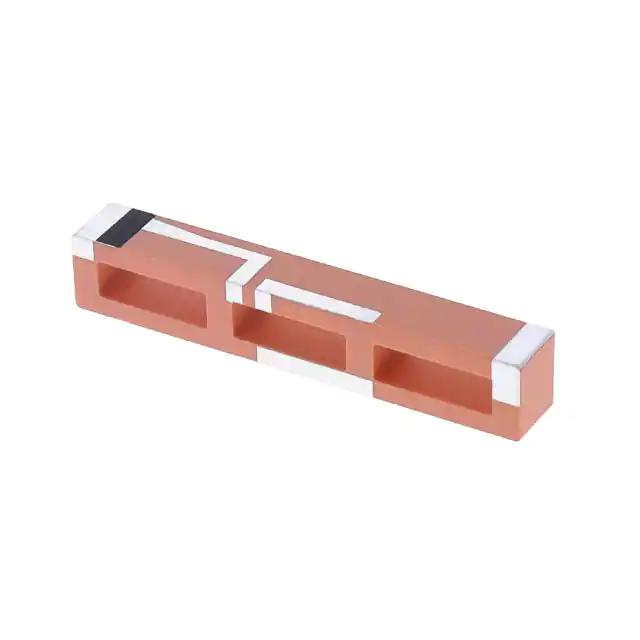

ANT3505B002TWPENSRF ANT 892MHZ/1.9GHZ CHIP SLD Pulse Electronics |
5,001 | 3.79 |
|
Datasheet |
3505 | Tray | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | 2.5, 3.8 | - | 2.91dBi | 4 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | GSM |
|

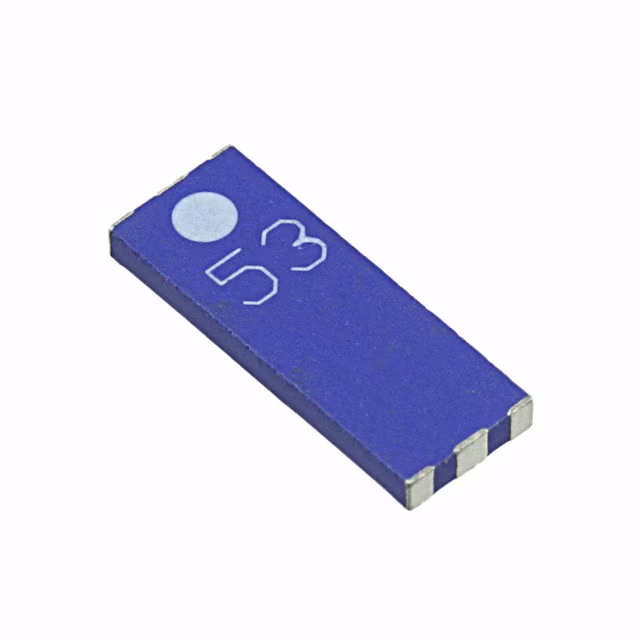

ANT1204LL00R0918ARF ANT 900MHZ/1.8GHZ CHIP SLD Pulse Electronics |
4,768 | 3.15 |
|
Datasheet |
1204 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 890MHz ~ 910MHz, 1.79GHz ~ 1.81GHz | Chip | 2 | 3 | -10dB | -1.6dBi, 1.08dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
|
ANT4010F000RWPENAANTENNA CHIP 4010 PIFA Pulse Electronics |
1,000 | 0.00 |
|
Datasheet |
4010 | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | 3 | - | 3.3dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.134" (3.40mm) | LTE |
|
|
W3208ANT CER GPS/GLONASS 18X18X4 PIN Pulse Electronics |
696 | 3.65 |
|
Datasheet |
Ceramic Patch | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.565GHz ~ 1.585GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | - | -15dB, -9dB | 1dBic, 3dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
