RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

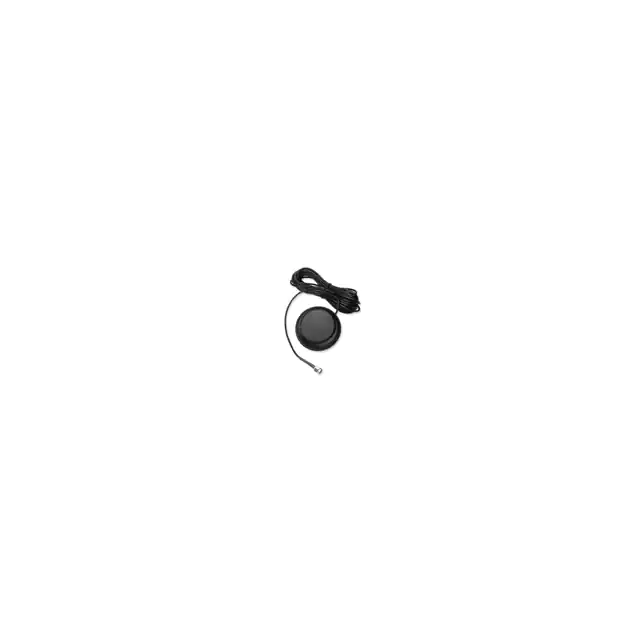

GPSDM08BLACK GPS DIRECT MOUNT, 1575.4 M Pulse Electronics |
2,174 | 53.68 |
|
Datasheet |
- | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Dome | 1 | - | - | 5dBi, 28dBi | - | Cable - 431.8mm | SMA | - | - | - | Adhesive | 0.700" (17.78mm) | GPS |
|
LP800NMOWWHITE NMO LOW PROFILE, UNITY 806 Pulse Electronics |
4,539 | 61.16 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 883MHz | 806MHz ~ 960MHz | Whip, Straight | 1 | - | - | 2dBi | 100 W | - | NMO | - | - | - | Magnetic | 1.500" (38.10mm) | - |
|

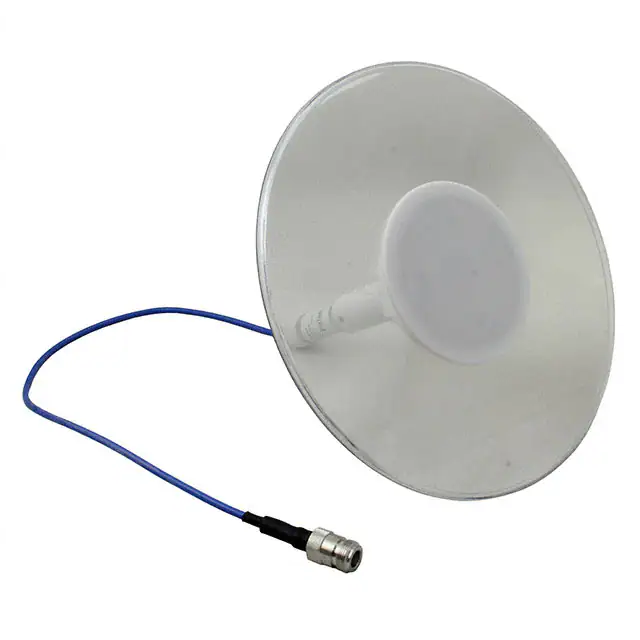

DASUTCC500NFRF ANT 700MHZ/850MHZ FLAT PATCH Pulse Electronics |
1,018 | 182.79 |
|
Datasheet |
Clarity™ | Bulk | Active | Cellular, WiFi | Wide Band | 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 7dBi, 7dBi, 5dBi | 40 W | Cable - 500mm | N Type Female | - | - | - | Panel Mount | 0.331" (8.40mm) | LTE, Wi-Fi |
|
ANT8010LL05R1575AANTENNA CHIP GPS Pulse Electronics |
2,970 | 0.24 |
|
Datasheet |
8010 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | - | 10dB | 0.67dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | GPS |
|

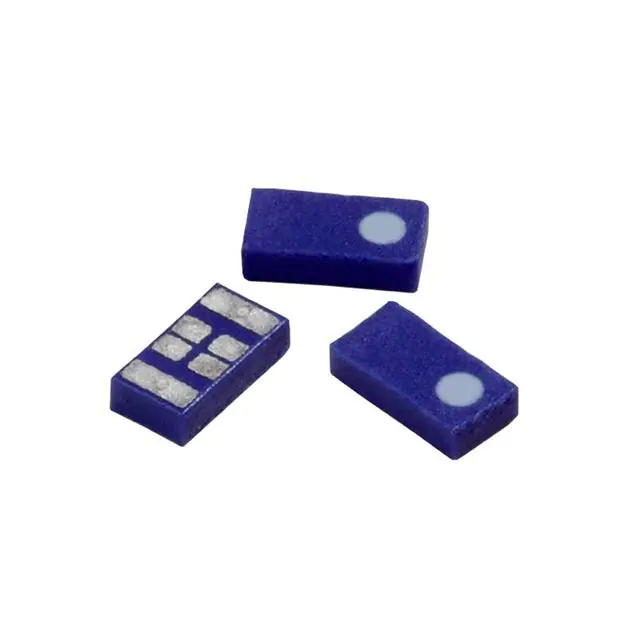

ANT1608LL14R2460AANT 2.4/6GHZ WIFI 6 2.4G/5-7G Pulse Electronics |
23,928 | 0.03 |
|
Datasheet |
1608 | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 6.1375GHz | 5.15GHz ~ 7.125GHz | Chip | 2 | - | 7dB | 3.65dBi, 3.69dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.016" (0.40mm) | Wi-Fi 6E |
|
|
ANT3216A063R2455AANTENNA CHIP 2.4/5GHZ PIFA Pulse Electronics |
8,970 | 0.09 |
|
Datasheet |
3216 | Tape & Reel (TR) | Active | General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | - | Chip | 2 | - | 10dB | 1.59dBi, 2.23dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.022" (0.55mm) | ISM, Wi-Fi |
|

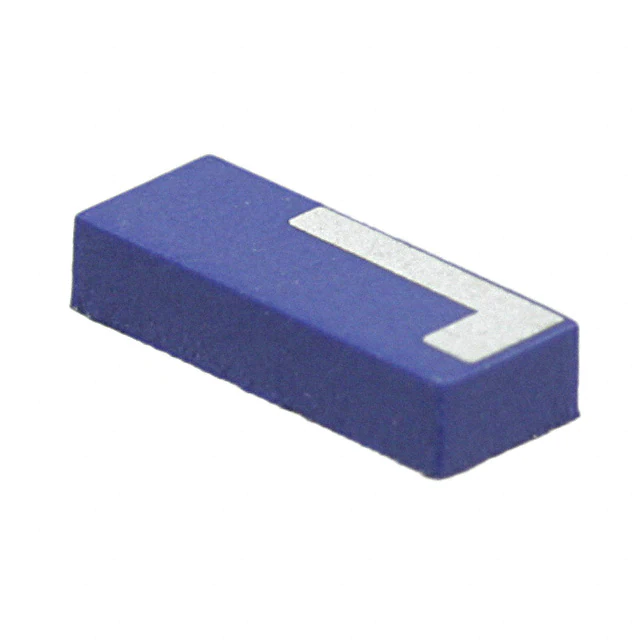

ANT5320LL24R2400ARF ANT 2.4GHZ CHIP SOLDER SMD Pulse Electronics |
9,152 | 0.30 |
|
Datasheet |
5320 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.408GHz ~ 2.492GHz | Chip | 1 | - | -19dB | 2.78dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, WLAN, Zigbee™ |
|
|
W3154ANTENNA CBRS 3500-3980MHZ SMD Pulse Electronics |
5,980 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | General ISM | UHF (3GHz ~ 4GHz) | 3.74GHz | 3.5GHz ~ 3.98GHz | Chip | 1 | - | 6dB | 2.5dBi | 3 W | - | - | - | - | - | Surface Mount | 0.043" (1.10mm) | General Purpose |
|
|
BTPA0061204G0C4A03ANTENNA FPC 698-2700MHZ Pulse Electronics |
457 | 0.00 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | - | -10dB, -5dB | 4.5dBi, 4.5dBi, 4.5dBi | 1 W | Cable - 200mm | I-PEX | - | - | - | Adhesive | 0.016" (0.40mm) | 4G, LTE |
|
|
BTPA0061204G0C4A02ANTENNA FPC 698-2700MHZ Pulse Electronics |
428 | 0.00 |
|
Datasheet |
- | Box | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | - | -10dB, -5dB | 4.5dBi, 4.5dBi, 4.5dBi | 1 W | Cable - 312.3mm | I-PEX | - | - | - | Adhesive | 0.016" (0.40mm) | 4G, LTE |
