RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PD617-4200S143ANT DAS DIR 4G LTE 5G CBRS SISO Pulse Electronics |
2,013 | 0.00 |
|
Datasheet |
Directional DAS | Box | Active | Cellular | Wide Band | 720.5MHz, 892MHz, 1.45GHz, 2.755GHz, 4GHz | 617MHz ~ 824MHz, 824MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.71GHz ~ 3.8GHz, 3.8GHz ~ 4.2GHz | Module | 5 | 1.7, 1.8, 2 | - | 6dBi, 6dBi, 8dBi, 9dBi, 9dBi | 50 W | Cable - 300mm | 4.3/10 - Female | IP50 | - | - | Wall Mount | 2.402" (61.00mm) | 4G, 5G |
|
|
RO450NFKITANTENNA UHG 410-520 MHZ N-FEMALE Pulse Electronics |
3,390 | 0.00 |
|
Datasheet |
- | Box | Active | Cellular | UHF (300MHz ~ 1GHz) | 465MHz | 410MHz ~ 520MHz | Dome | 1 | 1.5 | - | 2.3dBi | 60 W | - | N Type Female | IP67 | - | - | Bracket Mount | 8.638" (219.40mm) | LTE |
|
|
OD617-6000M443ANT DAS OMNI 5G CBRS 4 PORT MIMO Pulse Electronics |
4,461 | 0.00 |
|
Datasheet |
Omni Antenna | Box | Active | Cellular | Wide Band | 657.5MHz, 829MHz, 2.025GHz, 3.65GHz, 5.4GHz | 617MHz ~ 698MHz, 698MHz ~ 960MHz, 1.35GHz ~ 2.7GHz, 3.3GHz ~ 4GHz, 4.8GHz ~ 6GHz | Dome | 5 | 1.8 | - | 3dBi, 3dBi, 4.5dBi, 4.5dBi, 4.5dBi | 50 W | Cable - 300mm | 4.3/10 - Female (4) | IP50 | - | - | Through Hole | 0.945" (24.00mm) | 4G, 5G |
|

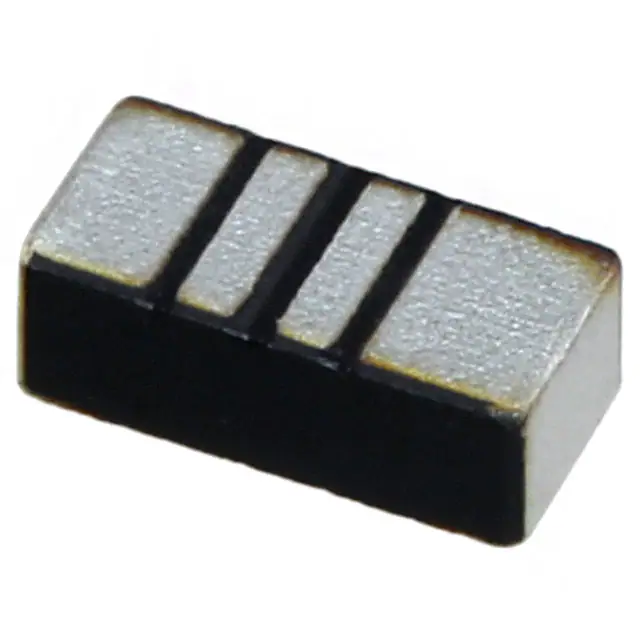

W3008GRF ANT 2.4GHZ CHIP SOLDER SMD Pulse Electronics |
2,675 | 1.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Chip | 1 | 1.6 | - | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth |
|

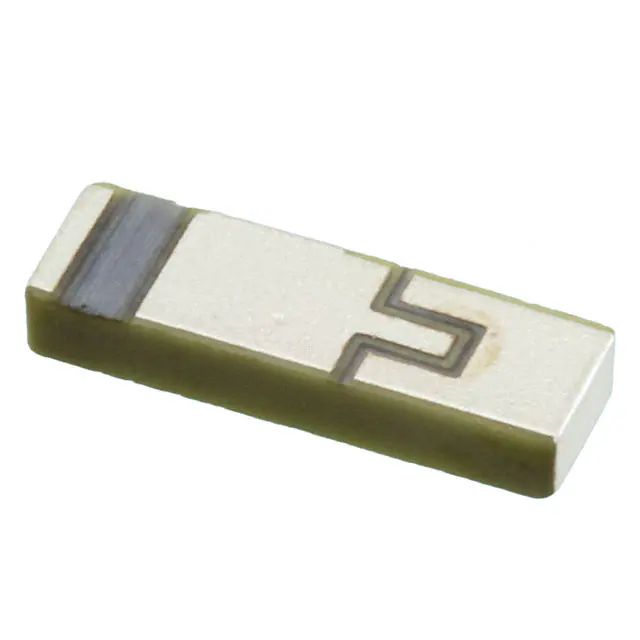

W3056RF ANT 1.575GHZ/2.4GHZ CHIP SLD Pulse Electronics |
1,930 | 2.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.575GHz, 2.4GHz ~ 2.5GHz | Chip | 2 | - | -20dB | - | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Bluetooth, GPS, WLAN |
|

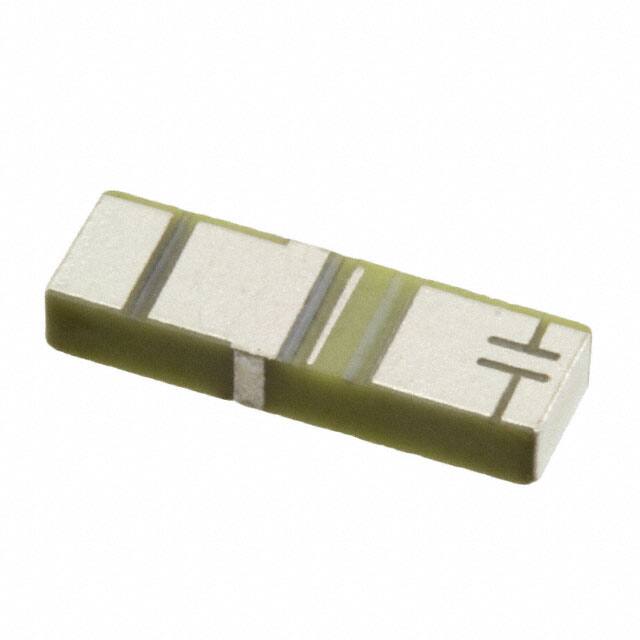

W3095RF ANT 1.575GHZ/1.602GHZ CHIP Pulse Electronics |
2,098 | 2.03 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | Wide Band | 1.575GHz, 1.602GHz, 2.4GHz, 5.4GHz | 1.575GHz ~ 1.61GHz, 2.4GHz ~ 2.49GHz, 4.9GHz ~ 5.85GHz | Chip | 3 | 1.2 | - | 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | GLONASS, GPS |
|

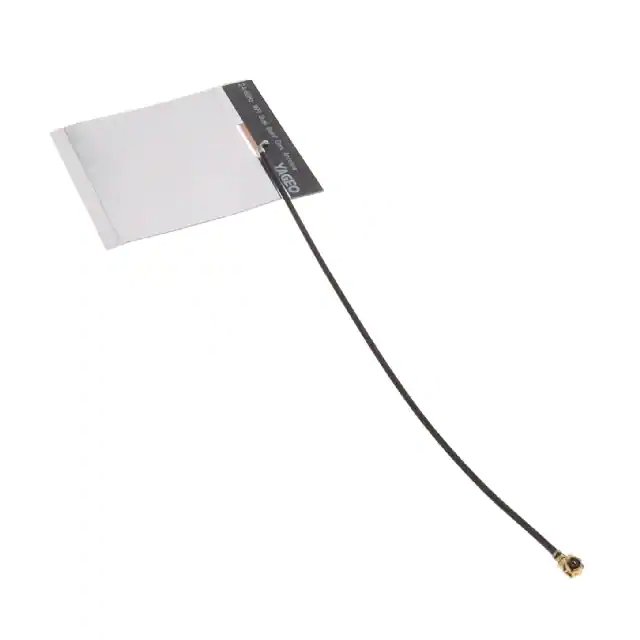

ANTX100P002B24553RF ANT 2.45GHZ/5.3685GHZ PCB Pulse Electronics |
3,427 | 4.61 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.3685GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.587GHz | PCB Trace | 2 | 2.5 | - | 0.7dBi, 1.9dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
W3224ANT CERAMIC PATCH 18X18X4MM GPS/ Pulse Electronics |
129 | 4.69 |
|
Datasheet |
Ceramic Patch | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | - | -10dB | 2dBi, 2.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GLONASS, GPS |
|

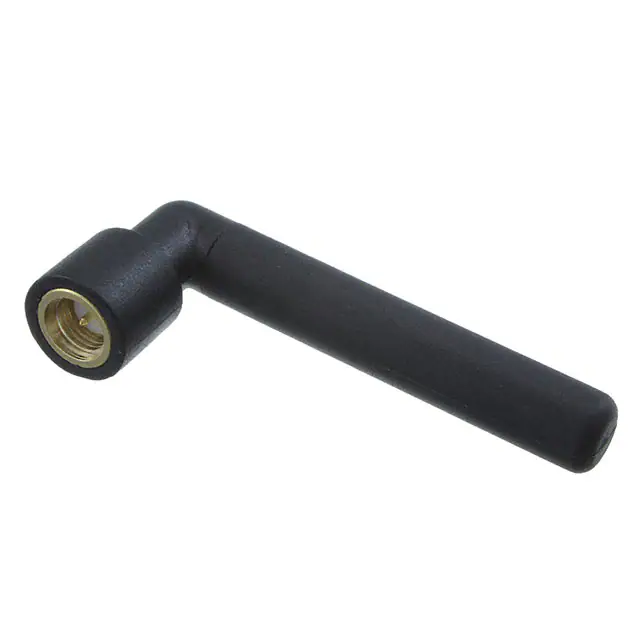

W1900-M3G PENTABAND 824-2170MHZ RIGHT A Pulse Electronics |
300 | 6.46 |
|
Datasheet |
Stubby Antenna | Bulk | Obsolete | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | - | -4dB, -6dB | 1dBi, 2dBi | 5 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.988" (50.50mm) | GSM, WCDMA |
|

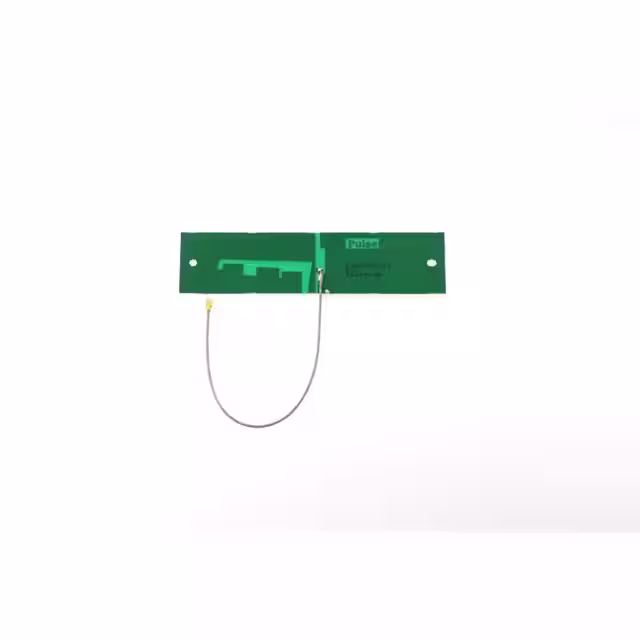

W3554E0193ANTENNA ASSEMBLY 6GHZ 193MM MMCX Pulse Electronics |
128 | 8.65 |
|
Datasheet |
- | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi | Wide Band | 829MHz, 1.5GHz, 2.2GHz, 3.55GHz, 5.45GHz | 698MHz ~ 960MHz, 1.4GHz ~ 1.6GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 4.9GHz ~ 6GHz | PCB Trace | 5 | - | -4dB, -3dB, -6dB, -5dB, -4dB | 1.9dBi, 2.5dBi, 3.2dBi, 3.3dBi, 3.5dBi | 5 W | Cable - 193mm | MMCX | - | - | - | Adhesive | 0.008" (0.20mm) | 2G, 3G, 4G, 5G, Bluetooth, GNSS, ISM, Wi-Fi, Zigbee™ |
