RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3538B0035ANTENNA PCB Pulse Electronics |
2,070 | 0.70 |
|
Datasheet |
Internal PCB Antenna | Box | Active | Cellular | Wide Band | 892MHz, 1.94GHz, 2.045GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | PCB Trace | 3 | - | -4dB, -7dB | -1.2dBi, 1dBi, 1.1dBi | - | Cable - 35mm | U.FL | - | - | - | Adhesive | 0.028" (0.70mm) | GSM, WCDMA |
|
|
TWA422CC01ANT WIFI 2.4-2.5GHZ/5.15-5.85GHZ Pulse Electronics |
976 | 0.00 |
|
Datasheet |
- | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -9dB, -7dB | 1.75dBi, 5.72dBi | 1 W | Cable - 95mm | U.FL | - | - | - | Adhesive | 0.096" (2.44mm) | Wi-Fi |
|
|
ANTX100ETHAB24553ANT 2.4GHZ 5GHZ WHIP SWIVEL Pulse Electronics |
1,146 | 0.00 |
|
Datasheet |
- | Bag | Active | General ISM | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 2, 2.5 | - | 2dBi, 3dBi | - | Cable - 100mm | I-PEX | - | - | - | Connector Mount | - | General Purpose |
|

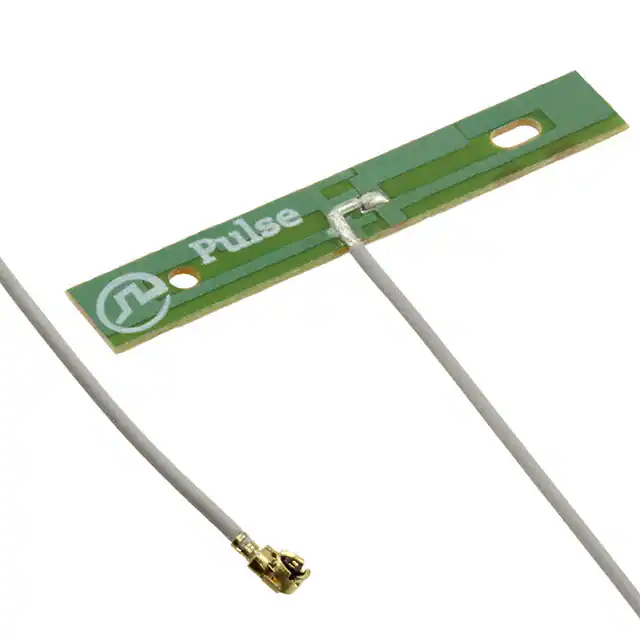

W3593B0100RF ANT 5GHZ PCB TRACE IPEX ADH Pulse Electronics |
1,275 | 1.29 |
|
Datasheet |
- | Bulk | Active | - | Wide Band | 5GHz | 4.9GHz ~ 5.85GHz | PCB Trace | 1 | - | - | 2dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | - |
|
|
W6109B0100ANT MIMO WIFI 6E FPC 100MM 2X2 Pulse Electronics |
951 | 0.00 |
|
Datasheet |
- | Bag | Active | WiFi | Wide Band | 2.44GHz, 6.137GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 7.125GHz | Flat Patch | 2 | - | 7dB | 3.2dBi, 6.9dBi | 1 W | Cable - 100mm | U.FL | - | - | - | Adhesive | - | Wi-Fi |
|
|
W3079RF ANT 2.4/5.5GHZ INTEG CHIP SLD Pulse Electronics |
2,800 | 0.97 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | Integrated, Chip | 2 | 1.9 | - | 2.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth, WLAN, Zigbee™ |
|
|
W3312BB0100ANTENNA 860-930MHZ Pulse Electronics |
567 | 1.06 |
|
Datasheet |
Internal Antenna | Box | Active | General ISM | UHF (300MHz ~ 1GHz) | 895.5MHz | 863MHz ~ 928MHz | PCB Trace | 1 | - | -8dB | 0.8dBi | 2 W | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | ISM |
|
|
SWA425AANT WIFI 6E IPEX MHF 4L 95MM Pulse Electronics |
244 | 0.00 |
|
- |
- | Bag | Active | WiFi | Wide Band | 2.45GHz, 6.137GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.125GHz | Flat Patch | 2 | - | -5dB | 3dBi, 4.5dBi | - | Cable - 95mm | I-PEX MHF4L | - | - | - | Surface Mount | 0.144" (3.65mm) | Wi-Fi |
|
|
W5029RPGT2.4-2.5 / 5.15-5.925 GHZ STICK A Pulse Electronics |
492 | 3.96 |
|
Datasheet |
External Antenna | Bulk | Active | 802.15.4, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.538GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.925GHz | Whip, Straight | 2 | - | -10dB, -4dB | 1.8dBi, 2.55dBi | 1 W | - | RP-SMA Male | IP65 | - | - | Connector Mount | 2.992" (76.00mm) | DSRC, WLAN, Zigbee™ |
|
|
W3326ANTENNA 791-2170MHZ Pulse Electronics |
1,989 | 2.61 |
|
Datasheet |
Domino | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 875.5MHz, 1.94GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 2 | - | 5dB | 0.6dBi, 2.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | LTE |
