RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

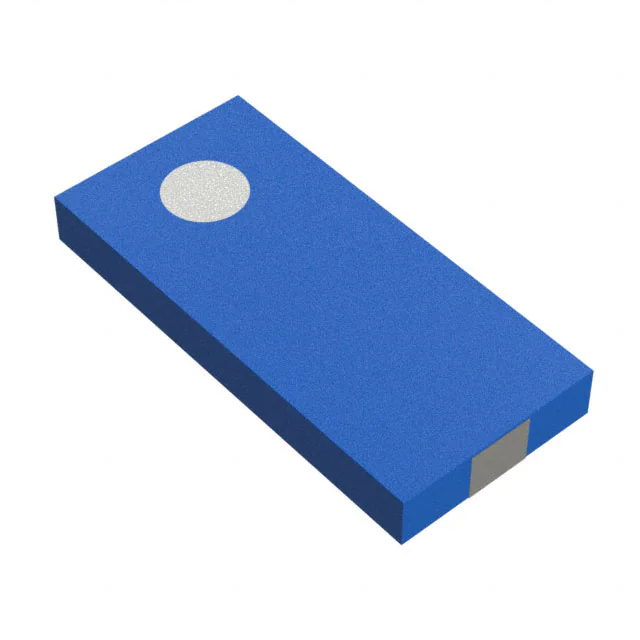

ANT7836LL15R2400ARF ANT 2.45GHZ CHIP SOLDER SMD Pulse Electronics |
7,174 | 1.74 |
|
Datasheet |
7836 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | 10dB | 4.1dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.035" (0.90mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

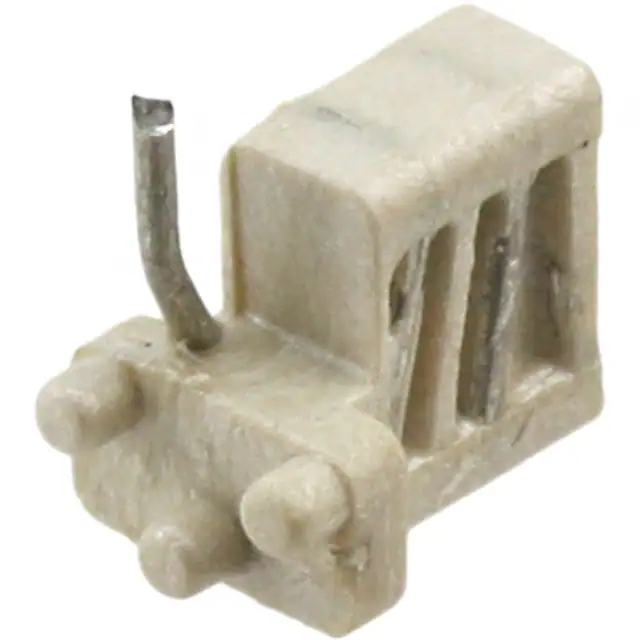

W3108RF ANT 2.4GHZ HELICAL SOLDER SMD Pulse Electronics |
1,510 | 2.06 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Helical | 1 | - | -8dB | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.217" (5.50mm) | - |
.jpg)
|
W3214ANT CER 863-873MHZ 10X3.2X5MM Pulse Electronics |
1,065 | 2.50 |
|
Datasheet |
Chip Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 873MHz | Chip | 1 | - | -5dB, -20dB | 1dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | ISM |
|
W3043RF ANT 1.575GHZ/2.4GHZ CHIP SLD Pulse Electronics |
992 | 1.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.4GHz | 1.575GHz, 2.4GHz ~ 2.483GHz | Chip | 2 | - | -15dB, -12dB | 0.35dBi, 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | - |
|

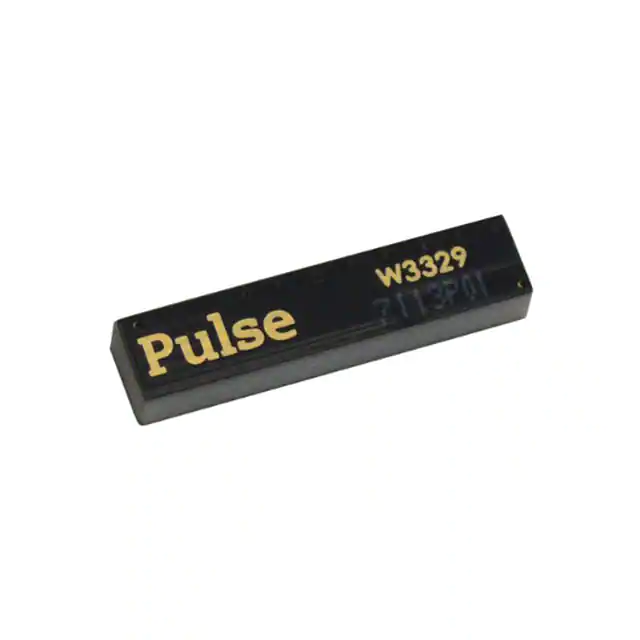

W3329ANT EMBD 868MHZ FR4 Pulse Electronics |
714 | 1.78 |
|
Datasheet |
Domino | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Chip | 1 | 2 | -10dB | 0.17dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | ISM |
|
|
W3315B0100MHF1WIFI ANTENNA Pulse Electronics |
942 | 3.00 |
|
Datasheet |
Internal Antenna | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 2dBi, 5dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|

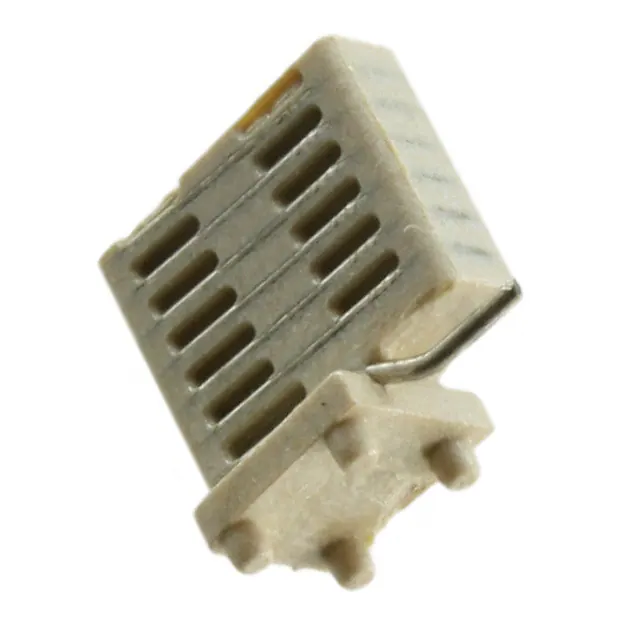

W3112ARF ANT 900MHZ HELICAL SOLDER SMD Pulse Electronics |
3,053 | 1.91 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Helical | 1 | - | -10dB | 0.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.315" (8.00mm) | - |
|

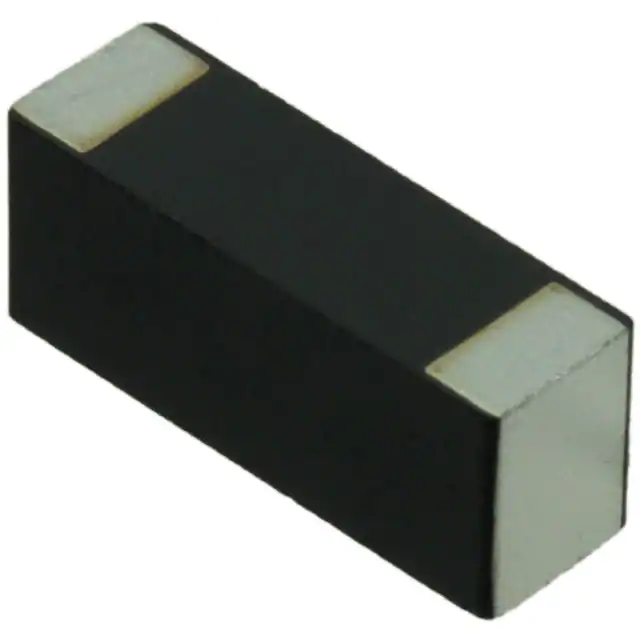

W3012RF ANT 900MHZ CHIP SOLDER SMD Pulse Electronics |
3,701 | 2.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 900MHz | 902MHz ~ 928MHz | Chip | 1 | - | -6dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | - |
|

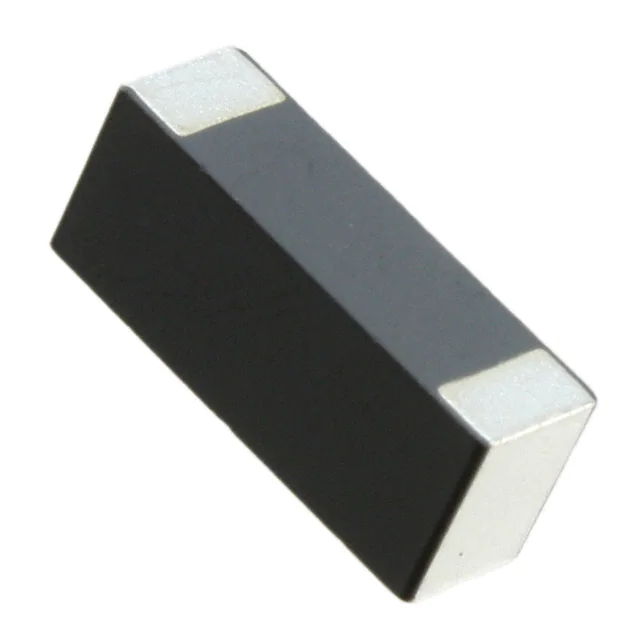

W3009RF ANT 1.575GHZ CHIP SOLDER SMD Pulse Electronics |
1,009 | 2.10 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.565GHz ~ 1.585GHz | Chip | 1 | - | -10dB | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
|
W3136ANTENNA HELIX SMT 860-930MHZ Pulse Electronics |
2,149 | 2.25 |
|
Datasheet |
SMD Helical Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 860MHz ~ 930MHz | Helical | 2 | 2.5 | - | 2dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.346" (8.78mm) | ISM |
