RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

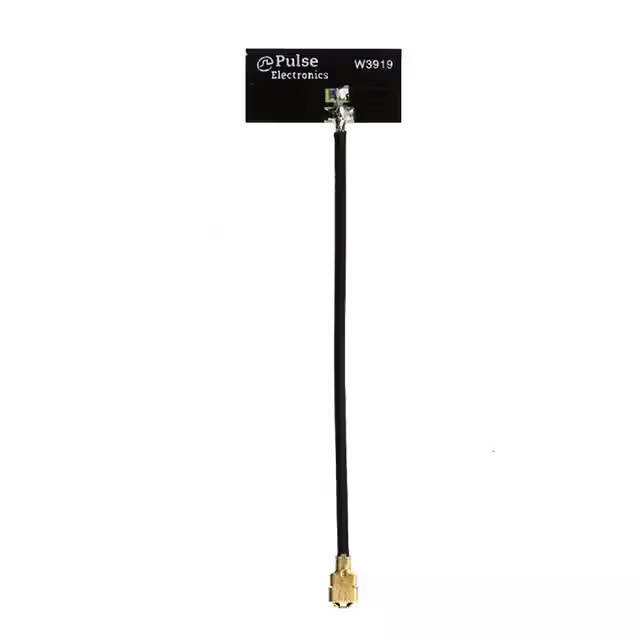

W3919B0100RF ANT 5.4GHZ FLAT PATCH CAB ADH Pulse Electronics |
2,441 | 2.28 |
|
Datasheet |
- | Bulk | Active | WiFi | SHF (f > 4GHz) | 5.4GHz | 4.9GHz ~ 5.925GHz | Flat Patch | 1 | 2 | - | 3dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.018" (0.45mm) | Wi-Fi |
|

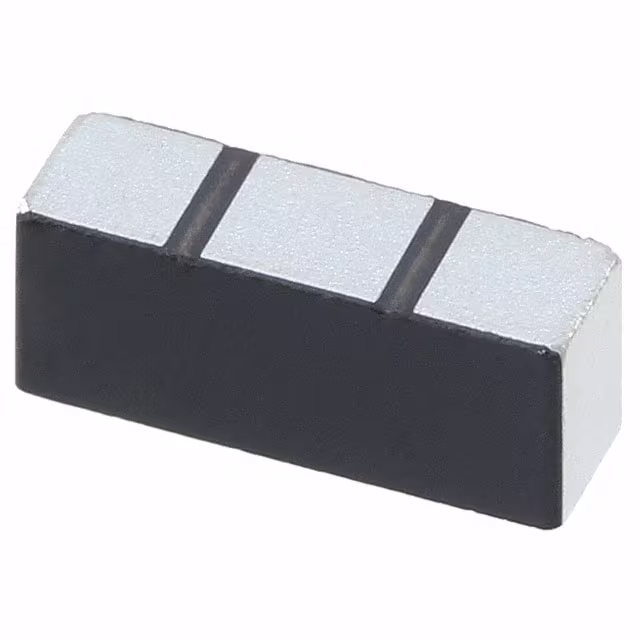

W3001RF ANT 2.4GHZ CHIP SOLDER SMD Pulse Electronics |
3,550 | 2.31 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Chip | 1 | - | -6dB | 1.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, WLAN |
|
W1699ANT EXT ISM868/915/2.4 RPSMA Pulse Electronics |
1,343 | 6.38 |
|
Datasheet |
Stubby Antenna | Tray | Active | Bluetooth, General ISM, WiFi | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 868MHz, 915MHz, 2.45GHz | 868MHz ~ 928MHz, 2.4GHz ~ 2.5GHz | Whip, Straight | 3 | 3 | - | 0.3dBi, 1.2dBi | 5 W | - | RP-SMA Male | IP42 | - | - | Connector Mount | 1.953" (49.60mm) | Bluetooth, LoRa, Sigfox, Wi-Fi |
|

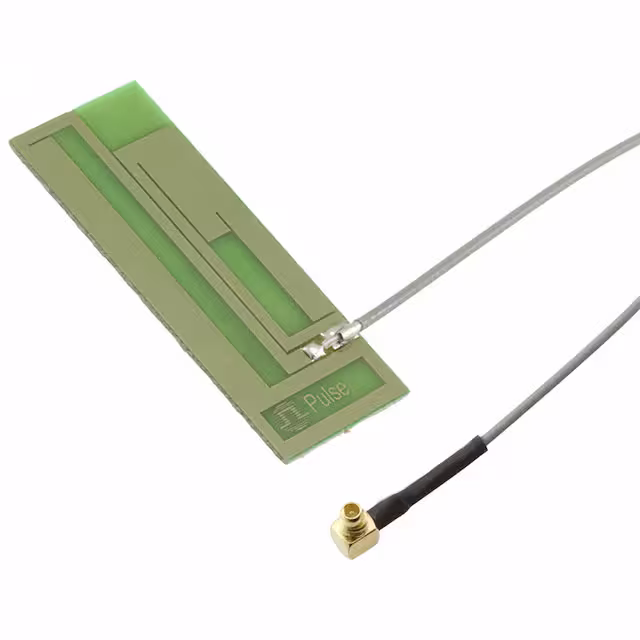

W3538E0150RF ANT 850/900MHZ PCB TRAC 150MM Pulse Electronics |
1,397 | 5.53 |
|
Datasheet |
- | Tray | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 5 | - | -3dB, -6dB | 1.5dBi, 4.5dBi, 3.9dBi | - | Cable - 150mm | MMCX Male | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
|

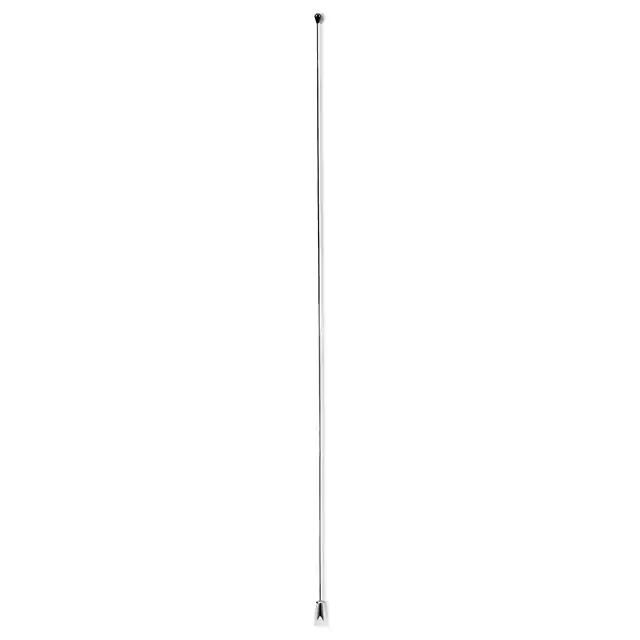

QSTAINLESS CONE / WHIP, UNITY, 13 Pulse Electronics |
3,244 | 11.82 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 324MHz | 136MHz ~ 512MHz | Whip, Straight | 1 | 1 | - | 2dBi | 200 W | - | - | - | - | - | Magnetic | 22.000" (558.80mm) | - |
|

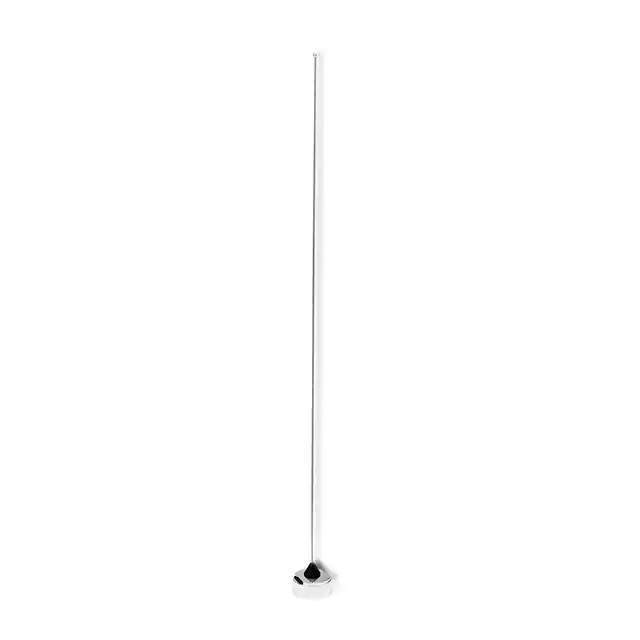

NMOQW152STAINLESS BASE / WHIP, UNITY, 15 Pulse Electronics |
3,014 | 23.92 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 157MHz | 152MHz ~ 162MHz | Whip, Straight | 1 | - | - | 2dBi | 200 W | - | NMO | - | - | - | Magnetic | 19.000" (482.60mm) | - |
|
|
GNSSCGMSMAANT ACTIVE GNSS ADH MNT 5M SMA Pulse Electronics |
1,931 | 18.79 |
|
Datasheet |
GNSS Active Antenna | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5845GHz | 1.559GHz ~ 1.61GHz | Module | 1 | 2.5 | - | -2dBi, -1.5dBi, -2.5dBi | - | Cable - 5m, LNA | SMA Male | IP65 | - | - | Adhesive | 0.260" (6.60mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
NMO3E800BBASE / WHIP ENCLOSED, 3 DB, 806 Pulse Electronics |
4,884 | 40.95 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Whip, Straight | 1 | - | - | 5.4dBi | 200 W | - | NMO | - | - | - | Magnetic | 13.500" (342.90mm) | - |
|

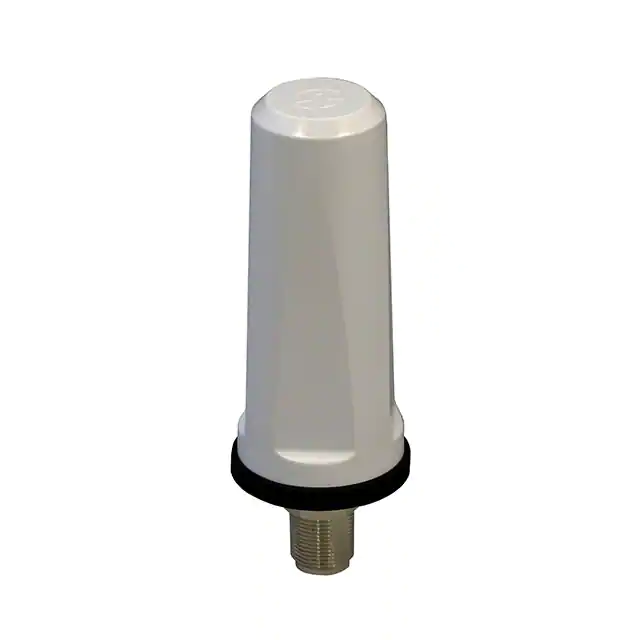

LPT600/71DMNWANTENNA 617-7125MHZ MONOPOLE Pulse Electronics |
4,685 | 56.28 |
|
Datasheet |
Monopole Antenna | Bag | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.94GHz, 2.5GHz, 3.6GHz, 6.0125GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.8GHz, 4.9GHz ~ 7.125GHz | Dome | 5 | 2, 3 | - | 2dBi, 3.9dBi, 5.3dBi, 4.7dBi, 6.1dBi | 60 W | - | N Type Female | IP67 | - | - | Connector Mount | 3.776" (95.90mm) | 4G, 5G, Wi-Fi |
|
W4165MMSMA5RF ANT 892MHZ/1.58GHZ MOD CAB 5' Pulse Electronics |
1,502 | 76.13 |
|
Datasheet |
Disc | Bulk | Active | Cellular, Navigation | Wide Band | 892MHz, 1.58GHz, 1.94GHz | 824MHz ~ 960MHz, 1.56GHz ~ 1.608GHz, 1.71GHz ~ 2.17GHz | Module | 3 | 2 | - | 4.5dB | - | Cable - 1.5m | SMA Male (2) | IP67 | - | - | Magnetic | 1.689" (42.90mm) | Beidou, Galileo, GLONASS, GPRS, GPS, GSM |
