Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA5000.003NLXFMR FWD P-P DC/DC CONV 100UH SM Pulse Electronics |
1,215 | 0.00 |
|
Datasheet |
PA5000.XXXNL | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 75V | 10V @ 50mA | 5000Vrms | 100µH | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.697" L x 0.531" W (17.70mm x 13.50mm) | Wirewound |
|
PA5111.003NLTXFMR FLYBACK DC/DC CONV 80UH SMD Pulse Electronics |
3,183 | 5.38 |
|
Datasheet |
PA5111.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 75V | - | 3000Vrms | 80µH @ 200kHz | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
|
|
PA0491NLTXFMR FWD P-P DC/DC CONV 140UH SM Pulse Electronics |
3,436 | 0.00 |
|
Datasheet |
Spyglass | Tape & Reel (TR) | Obsolete | For DC/DC Converters | Forward, Push-Pull Converters | LT1952 | Linear Technology | 36 ~ 72V | - | 1500Vrms | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.790" L x 0.920" W (20.07mm x 23.37mm) | 0.348" (8.85mm) | 0.790" L x 0.920" W (20.07mm x 23.37mm) | Planar |
|

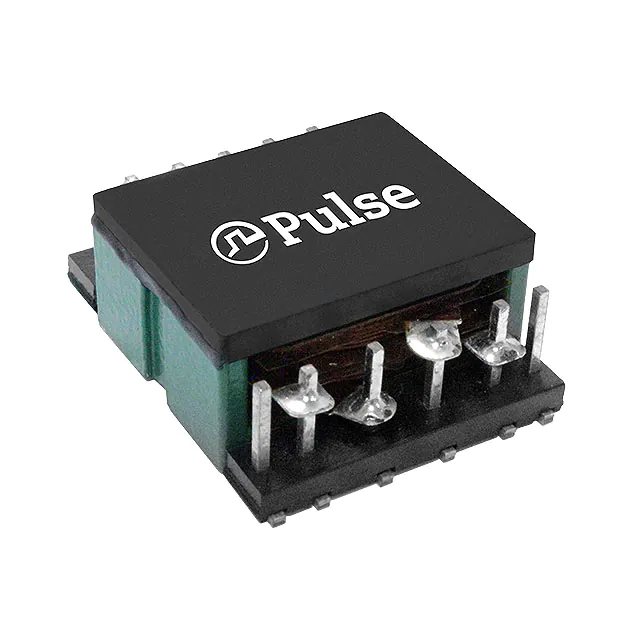

PH0803CNLTXFMR DC/DC CONV SMD Pulse Electronics |
3,285 | 6.79 |
|
Datasheet |
PH08XXCNL | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.64mm) | 0.358" (9.10mm) | - | Planar |
|
|
PH0804CNLTXFMR DC/DC CONV SMD Pulse Electronics |
3,387 | 6.79 |
|
Datasheet |
PH08XXCNL | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.64mm) | 0.378" (9.60mm) | - | Planar |
|
|
PH0805CNLTXFMR DC/DC CONV SMD Pulse Electronics |
2,080 | 6.79 |
|
Datasheet |
PH08XXCNL | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.64mm) | 0.378" (9.60mm) | - | Planar |
|
|
PH0807CNLTXFMR DC/DC CONV SMD Pulse Electronics |
3,240 | 6.79 |
|
Datasheet |
PH08XXCNL | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.64mm) | 0.358" (9.10mm) | - | Planar |
|
|
PH0808CNLTXFMR DC/DC CONV SMD Pulse Electronics |
4,960 | 6.79 |
|
Datasheet |
PH08XXCNL | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.64mm) | 0.358" (9.10mm) | - | Planar |
|
|
PH0809CNLTXFMR DC/DC CONV SMD Pulse Electronics |
2,082 | 6.79 |
|
Datasheet |
PH08XXCNL | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.64mm) | 0.378" (9.60mm) | - | Planar |
|
|
PH0811CNLTXFMR DC/DC CONV SMD Pulse Electronics |
2,530 | 6.79 |
|
Datasheet |
PH08XXCNL | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.64mm) | 0.358" (9.10mm) | - | Planar |
