Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

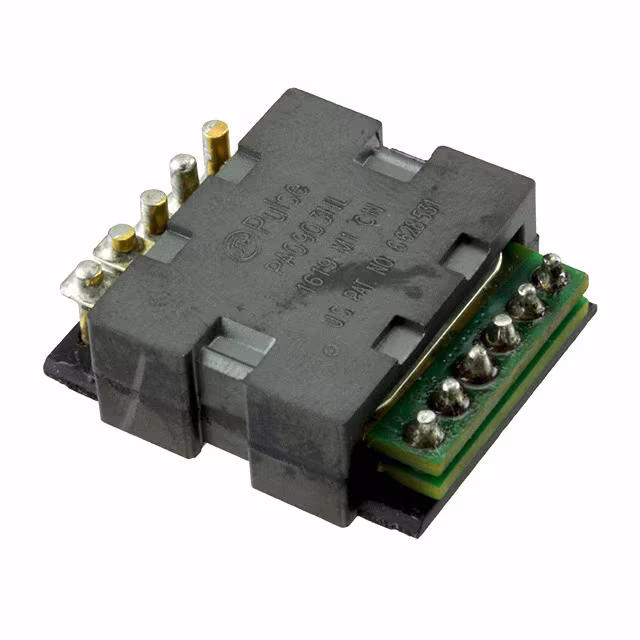

PA0903NLXFMR SMD Pulse Electronics |
3,740 | 19.69 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.000" L x 1.160" W (25.40mm x 29.46mm) | - |
|

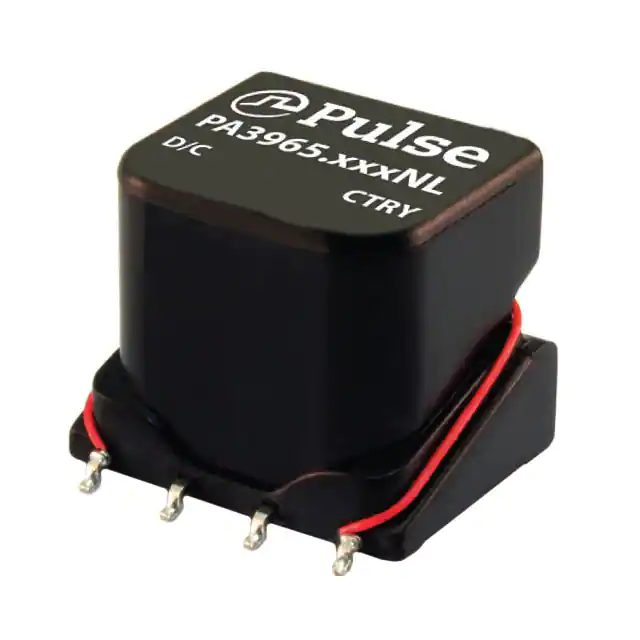

PA3965.001NLXFRMR FLYBACK 7W Pulse Electronics |
4,785 | 0.00 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.557" (14.15mm) | 0.657" L x 0.650" W (16.70mm x 16.50mm) | - |
|
PA0423NLXFMR FWD P-P DC/DC CONV SMD Pulse Electronics |
3,706 | 0.00 |
|
- |
Spyglass | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | ADP1074, LT1725, LTC3900, LT8310, LT8311 | Analog Devices, Linear Technology | - | - | 1500VDC | - | 235 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.790" L x 0.920" W (20.07mm x 23.37mm) | 0.339" (8.60mm) | - | Planar |
|
|
PH0256NLTXFMR FLYBACK AC/DC CONV TH Pulse Electronics |
4,256 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | TNY264/274 | Power Integrations | 80 ~ 375V | 9V @ 20mA | 500Vrms | - | 132kHz | - | - | - | Through Hole | 0.689" L x 0.748" W (17.50mm x 19.00mm) | 0.571" (14.50mm) | 0.689" L x 0.748" W (17.50mm x 19.00mm) | - |
|
|
PH0259NLTXFMR FLYBACK AC/DC CONV TH Pulse Electronics |
1,013 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | TNY266/274 | Power Integrations | 85 ~ 375V | - | 500Vrms | - | 132kHz | - | - | - | Through Hole | 0.630" L x 0.720" W (16.00mm x 18.30mm) | 0.709" (18.00mm) | 0.630" L x 0.720" W (16.00mm x 18.30mm) | - |
|
|
PH0262NLTXFMR FLYBACK AC/DC CONV TH Pulse Electronics |
3,296 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | 95 ~ 265V | - | 3000Vrms | - | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.886" L x 0.854" W (22.50mm x 21.70mm) | 0.689" (17.50mm) | 0.886" L x 0.854" W (22.50mm x 21.70mm) | - |
|
|
PH0270NLTXFMR FLYBACK AC/DC CONV TH Pulse Electronics |
4,444 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | 85 ~ 265V | - | 1500Vrms | - | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 1.120" L x 0.740" W (28.45mm x 18.80mm) | 1.100" (27.94mm) | 1.120" L x 0.740" W (28.45mm x 18.80mm) | - |
