Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PH0811CNLXFMR DC/DC CONV SMD Pulse Electronics |
288 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0814CNLXFMR DC/DC CONV SMD Pulse Electronics |
268 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.388" (9.85mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0813CNLXFMR DC/DC CONV SMD Pulse Electronics |
226 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0808CNLXFMR DC/DC CONV SMD Pulse Electronics |
171 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
|
PH0806CNLXFMR DC/DC CONV SMD Pulse Electronics |
203 | 0.00 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|

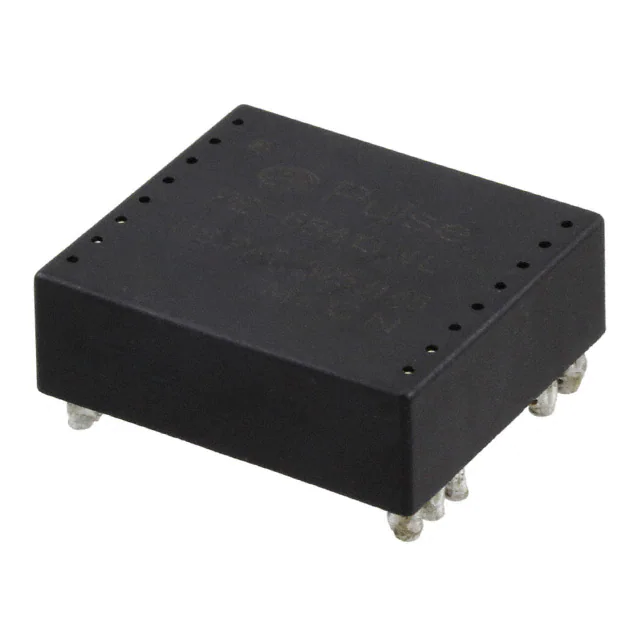

PE-68413NLXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
239 | 0.00 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 18 ~ 36V | - | 1500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.920" L x 1.040" W (23.37mm x 26.42mm) | 0.480" (12.19mm) | 0.920" L x 1.040" W (23.37mm x 26.42mm) | - |
|
PM2277NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
172 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, ACPL-302J | Broadcom, ROHM | 8 ~ 18V | - | 2500V | - | 51 ~ 69kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.433" L x 0.433" W (11.00mm x 11.00mm) | 0.500" (12.70mm) | - | Laminated Core |
|
PA3856.001NLTXFMR FWD P-P DC/DC CONV SMD Pulse Electronics |
348 | 2.44 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3856.006NLTXFMR FWD P-P DC/DC CONV 128UH SM Pulse Electronics |
1,138 | 2.44 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
PA4470.003NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
1,256 | 2.80 |
|
Datasheet |
PA4470 | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | - | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | - | 0.236" (6.00mm) | 0.315" L x 0.374" W (8.00mm x 9.50mm) | - |
