Heat Sinks
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-02A-95-C2-R0HEATSINK 40X40X30MM R-TAB T766 |
2,376 | 7.60 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-11A-190-C2-R0HEATSINK 45X45X25MM R-TAB T766 |
2,825 | 7.60 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.62°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-03B-95-C2-R0HEATSINK 40X40X30MM R-TAB T766 |
1,995 | 7.60 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14B-162-C2-R0HEATSINK 45X45X25MM L-TAB T766 |
4,500 | 7.60 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.62°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-18C-95-C2-R0HEATSINK 40X40X30MM R-TAB T766 |
3,517 | 7.60 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-06D-95-C2-R0HEATSINK 40X40X30MM R-TAB T766 |
3,086 | 7.60 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-07E-65-C2-R0HEATSINK 40X40X30MM L-TAB T766 |
3,878 | 7.60 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

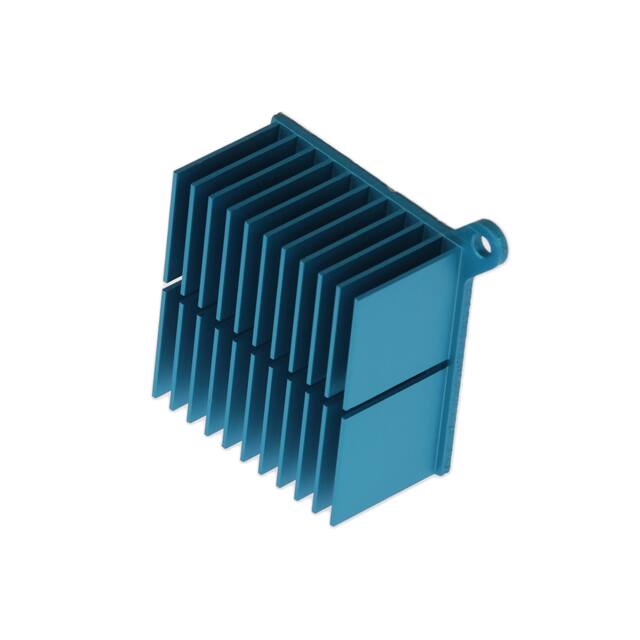

ATS-14E-190-C2-R0HEATSINK 45X45X25MM R-TAB T766 |
1,134 | 7.60 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.62°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-20E-65-C2-R0HEATSINK 40X40X30MM L-TAB T766 |
2,167 | 7.60 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 7.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-08-C2-R0HEATSINK 45X45X15MM XCUT T766 |
2,065 | 5.85 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 14.61°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX045045010-105-C2-R1HEATSINK 45X45X9.5MM XCUT SFP |
4,528 | 5.85 |
|
Datasheet |
pushPIN™ | Bulk | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.374" (9.50mm) | - | 28.22°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-P1-160-C2-R0HEATSINK 45X45X15MM L-TAB T766 |
1,194 | 6.89 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 6.67°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
WAVE-35-21ANCHOR HEATSINK 35X35X21MM |
2,338 | 4.72 |
|
Datasheet |
Wave 3x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.827" (21.00mm) | - | 2.11°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|
|
ATS-P2-59-C2-R0HEATSINK 35X35X30MM L-TAB T766 |
2,942 | 7.64 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.181" (30.00mm) | - | 7.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-P2-64-C2-R0HEATSINK 40X40X25MM L-TAB T766 |
3,519 | 7.64 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 9.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-06G-137-C2-R0HEATSINK 25X25X10MM L-TAB T766 |
3,645 | 5.24 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.394" (10.00mm) | - | 18.36°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX045045035-102-C1-R0HEATSINK 45X45X35MM R-TAB FP |
4,409 | 5.24 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 5.22°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-FPX045045035-72-C1-R0HEATSINK 45X45X35MM L-TAB FP |
2,039 | 5.24 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 5.09°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040035-66-C1-R0HEATSINK 40X40X35MM L-TAB FP |
2,077 | 4.87 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.75°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-17G-126-C2-R0HEATSINK 54X54X15MM XCUT T766 |
3,107 | 6.95 |
|
Datasheet |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.590" (15.00mm) | - | 5.47°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
