SCRs - Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TT104N14KOFHPSA1SCR MODULE 1.4KV 160A MODULE |
3,238 | 0.00 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 104 A | 160 A | 1.4 V | 120 mA | 2050A @ 50Hz | 200 mA | -40°C ~ 140°C | - | - | Chassis Mount |
|

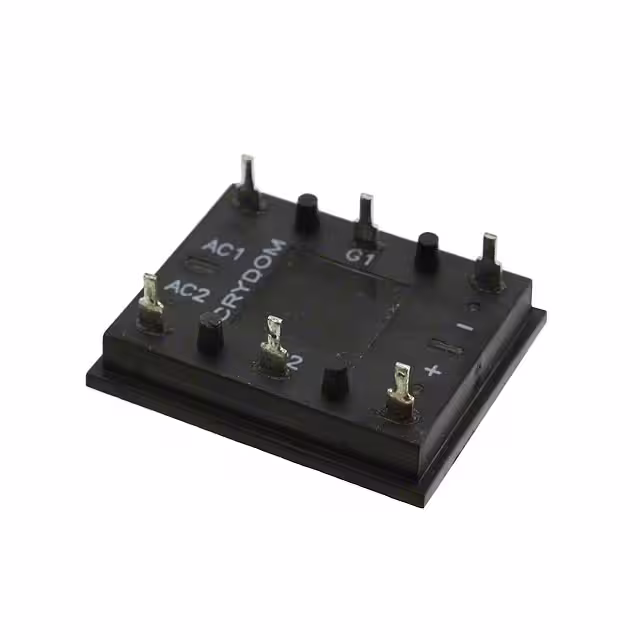

L514FMODULE SCR/DIODE 25A 480VAC PCB |
2,342 | 0.00 |
|
Datasheet |
L | Module | Bulk | Not For New Designs | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 100 mA | 300A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|
MCNA220P2200YABIPOLAR MODULE - THYRISTOR Y4-M |
7,996 | 0.00 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 220 A | 345 A | 2 V | 150 mA | 7200A, 7780A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
xxx-xxIO1.jpg)
|
MCC255-14IO1MOD THYRISTOR DUAL 1400V Y1-CU |
6,953 | 0.00 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 250 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

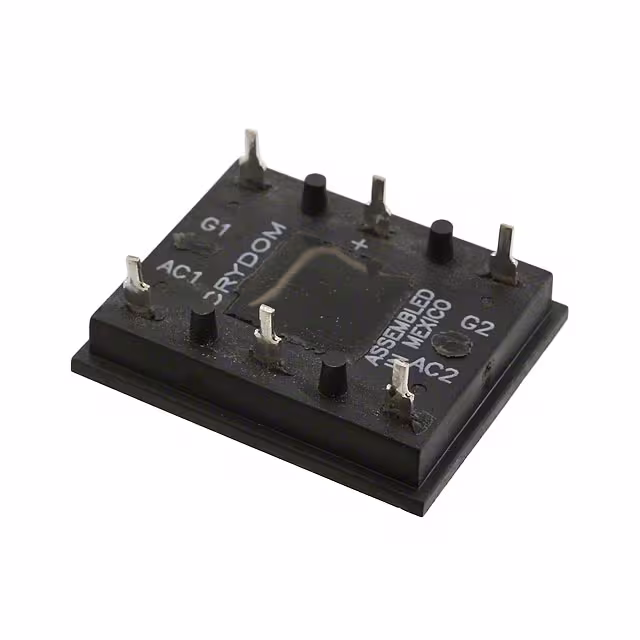

L612FMODULE SCR/DIO 42.5A 240VAC PCB |
8,780 | 0.00 |
|
Datasheet |
L | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 100 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|
|
MCC312-12IO1MOD THYRISTOR DUAL 1200V Y1-CU |
5,039 | 0.00 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 320 A | 520 A | 2 V | 150 mA | 9200A, 10100A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
F1827SD1000MODULE SCR/DIODE 25A 380VAC |
4,858 | 0.00 |
|
Datasheet |
F18 | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1 kV | - | - | 3 V | 150 mA | 400A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
PGH200N16THYRISTOR MODULE 3PHASE LEG T+D |
7,173 | 0.00 |
|
Datasheet |
- | Module | Bulk | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 200 A | - | 3 V | 150 mA | 4000A @ 50Hz | 100 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MCMA700P1600NCASCR MODULE 1.6KV 700A COMPACK |
3,292 | 0.00 |
|
Datasheet |
- | ComPack | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 700 A | 1100 A | 2 V | 300 mA | 19000A, 20500A | 300 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
T1400N16H75VTXPSA1STD THYR/DIODEN DISC BG-T7526K-1 |
8,941 | 0.00 |
|
Datasheet |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TT425N16KOFHPSA3SCR MODULE 1.6KV 800A MODULE |
8,829 | 0.00 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 471 A | 800 A | 1.5 V | 250 mA | 14500A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
T1700N16H75VTXPSA1STD THYR/DIODEN DISC BG-T7526K-1 |
7,324 | 0.00 |
|
Datasheet |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TT430N22KOFHPSA2SCR MODULE 2.2KV 800A MODULE |
8,133 | 0.00 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 430 A | 800 A | 2.2 V | 250 mA | - | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TT520N22KOFHPSA2THYRISTOR MODULE 2200V 520A |
1 | 0.00 |
|
Datasheet |
- | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 520 A | 1050 A | 2.2 V | 250 mA | - | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
TD780N18KOFHPSA1THYR / DIODE MODULE DK |
8,691 | 0.00 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 775 A | 1050 A | 2 V | 250 mA | 23500A | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
TT780N18KOFHPSA1THYR / DIODE MODULE DK |
9,059 | 0.00 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 775 A | 1050 A | 2 V | 250 mA | 23500A | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
TT700N22KOFTIMHPSA1THYR / DIODE MODULE DK BG-PB60AT |
1 | 0.00 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 700 A | 1050 A | 2.2 V | 250 mA | 20400A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
T1900N16TOFVTXPSA1STD THYR/DIODEN DISC BG-T7526K-1 |
1 | 0.00 |
|
Datasheet |
- | TO-200AC | Tray | Active | Single | 1 SCR | 1.8 kV | 1810 A | 2840 A | 2 V | 250 mA | 39000A @ 50Hz | 500 mA | 135°C (TJ) | - | - | Clamp On |
|
T1900N18TOFVTXPSA1STD THYR/DIODEN DISC BG-T7526K-1 |
1 | 0.00 |
|
Datasheet |
- | TO-200AC | Tray | Active | Single | 1 SCR | 1.8 kV | 1810 A | 2840 A | 2 V | 250 mA | 39000A @ 50Hz | 500 mA | 135°C (TJ) | - | - | Clamp On |
|
T2600N16TOFVTXPSA1STD THYR/DIODEN DISC BG-T10035-1 |
9,224 | 0.00 |
|
Datasheet |
- | TO-200AD | Tray | Active | Single | 1 SCR | 1.8 kV | 2610 A | 4100 A | 2 V | 250 mA | 44000A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
