SCRs - Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TT500N18KOFXPSA1THYR / DIODE MODULE DK |
6,939 | 0.00 |
|
Datasheet |
TT | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 500 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
TD570N18KOFXPSA1THYR / DIODE MODULE DK |
2,855 | 0.00 |
|
Datasheet |
TD | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 566 A | 1050 A | 2 V | 250 mA | 20000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
TD430N22KOFTIMHPSA1SCR MODULE 2200V 800A MODULE |
7,457 | 0.00 |
|
Datasheet |
- | Module | Tray | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 430 A | 800 A | 2.2 V | 250 mA | 14000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TD520N22KOFHPSA2SCR MODULE 2.2KV 1050A MODULE |
2,720 | 0.00 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 520 A | 1050 A | 2.2 V | 250 mA | - | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
TD520N22KOFXPSA1THYR / DIODE MODULE DK |
5,230 | 0.00 |
|
Datasheet |
TD | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 520 A | 1050 A | 2.2 V | 250 mA | 18000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
ETD630N16P60APSA1THYR / DIODE MODULE DK |
7,993 | 0.00 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 635 A | 700 A | 2 V | 250 mA | 19800A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
|
TT430N22KOFXPSA1THYR / DIODE MODULE DK |
6,272 | 0.00 |
|
Datasheet |
TT | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 430 A | 800 A | 2.2 V | 250 mA | 14000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
MCA500-12IO1SCR THRYRISTOR CA 1200V WC-500 |
5,383 | 0.00 |
|
Datasheet |
- | WC-500 | Tray | Obsolete | Common Anode - All SCRs | 2 SCRs | 1.2 kV | 545 A | 1294 A | 3 V | 300 mA | 16500A @ 50Hz | 1 A | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
STT800N16P55XPSA2THYR / DIODE MODULE DK |
6,097 | 0.00 |
|
Datasheet |
TT | Module | Tray | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.6 kV | - | - | 2 V | 200 mA | 6300A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|

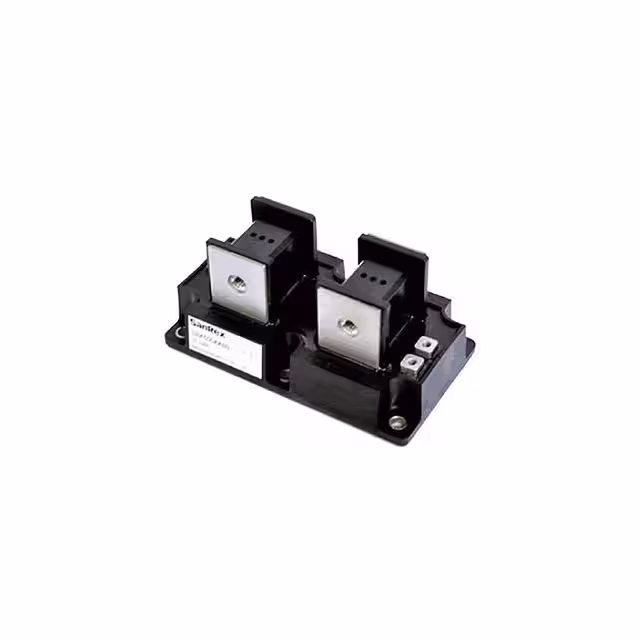

SBB500AA80THYRISTOR MODULE 800V 500A |
4,340 | 0.00 |
|
Datasheet |
- | Module | Active | Independent - SCR/Diode | 1 SCR, 1 Diode | 800 V | 500 A | 785 A | 3 V | 200 mA | 9100A, 10000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount | |
|
|
TT570N16KOFXPSA1THYR / DIODE MODULE DK |
9,409 | 0.00 |
|
Datasheet |
TT | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 600 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
ETD540N22P60XPSA1THYR / DIODE MODULE DK |
8,026 | 0.00 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 542 A | 700 A | 2.2 V | 250 mA | 16300A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
T1190N18TOFVTXPSA1SCR MODULE 1800V 2800A DO200AC |
9,905 | 0.00 |
|
Datasheet |
- | TO-200AC | Tray | Active | Single | 1 SCR | 1.8 kV | 1190 A | 2800 A | 2 V | 250 mA | 25500A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Clamp On |
|
|
ETT580N16P60XPSA1THYR / DIODE MODULE DK |
7,446 | 0.00 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 586 A | 700 A | 2 V | 250 mA | 16500A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
|
TD600N16KOFXPSA1THYR / DIODE MODULE DK |
5,514 | 0.00 |
|
Datasheet |
TD | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 600 A | 1050 A | 2 V | 250 mA | 21000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
MCA500-18IO1SCR THRYRISTOR CA 1800V WC-500 |
3,232 | 0.00 |
|
Datasheet |
- | WC-500 | Tray | Obsolete | Common Anode - All SCRs | 2 SCRs | 1.8 kV | 545 A | 1294 A | 3 V | 300 mA | 16500A @ 50Hz | 1 A | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
TT570N18KOFXPSA1THYR / DIODE MODULE DK |
5,619 | 0.00 |
|
Datasheet |
TT | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 566 A | 1050 A | 2 V | 250 mA | 20000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
TT520N22KOFXPSA1THYR / DIODE MODULE DK |
8,401 | 0.00 |
|
Datasheet |
TT | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 520 A | 1050 A | 2.2 V | 250 mA | 18000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
ETT630N16P60XPSA1THYR / DIODE MODULE DK |
7,146 | 0.00 |
|
Datasheet |
- | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 635 A | 700 A | 2 V | 250 mA | 19800A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
|
STT800N18P55XPSA2THYR / DIODE MODULE DK |
8,527 | 0.00 |
|
Datasheet |
TT | Module | Tray | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.8 kV | - | - | 2 V | 200 mA | 6300A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
