Bipolar RF Transistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Voltage - Collector Emitter Breakdown (Max) | Frequency - Transition | Noise Figure (dB Typ @ f) | Gain | Power - Max | DC Current Gain (hFE) (Min) @ Ic, Vce | Current - Collector (Ic) (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPR175RF TRANS NPN 55V 1.09GHZ 55CX |
2,855 | 0.00 |
|
- |
- | 55CX | Bulk | Obsolete | NPN | 55V | 1.03GHz ~ 1.09GHz | - | 8dB ~ 9dB | 290W | 10 @ 20mA, 5V | 9A | 200°C (TJ) | - | - | Chassis Mount | 55CX |
|
SD1728RF TRANS NPN 55V M177 |
7,316 | 0.00 |
|
Datasheet |
- | M177 | Box | Obsolete | NPN | 55V | - | - | 15dB ~ 17dB | 330W | 23 @ 10A, 6V | 40A | 200°C (TJ) | - | - | Surface Mount | M177 |
|
|
PH1617-2TRANSISTOR,BIPOLAR,WLESS,2W,1.6- |
2,017 | 0.00 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 65V | 1.7GHz | - | 10dB | 13.5W | - | 2A | 200°C | - | - | Chassis Mount | - |
|
|
2307RF TRANS NPN 42V 2.3GHZ 55BT |
2,134 | 0.00 |
|
Datasheet |
- | 55BT | Bulk | Obsolete | NPN | 42V | 2.3GHz | - | 8dB | 20.5W | 10 @ 500mA, 5V | 1A | 200°C (TJ) | - | - | Chassis Mount | 55BT |
|
|
23A025RF TRANS NPN 22V 3.7GHZ 55BT |
2,621 | 0.00 |
|
Datasheet |
- | 55BT | Bulk | Obsolete | NPN | 22V | 3.7GHz | - | 6dB ~ 6.3dB | 9W | 20 @ 420mA, 5V | 1.2A | 200°C (TJ) | - | - | Chassis Mount | 55BT |
|
|
0912-7RF TRANS NPN 60V 1.215GHZ 55CX |
4,705 | 0.00 |
|
Datasheet |
- | 55CX | Bulk | Obsolete | NPN | 60V | 960MHz ~ 1.215GHz | - | 8.5dB | 50W | 10 @ 100mA, 5V | 1A | 200°C (TJ) | - | - | Chassis Mount | 55CX |
|
|
2304RF TRANS NPN 45V 2.3GHZ 55BT |
5,661 | 0.00 |
|
Datasheet |
- | 55BT | Bulk | Obsolete | NPN | 45V | 2.3GHz | - | 8dB | 10.2W | 10 @ 300mA, 5V | 600mA | 200°C (TJ) | - | - | Chassis Mount | 55BT |
|
|
0912-45RF TRANS NPN 60V 1.215GHZ 55CT |
4,191 | 0.00 |
|
Datasheet |
- | 55CT | Bulk | Obsolete | NPN | 60V | 960MHz ~ 1.215GHz | - | 8dB ~ 9dB | 225W | 10 @ 300mA, 5V | 4.5A | 200°C (TJ) | - | - | Chassis Mount | 55CT |
|

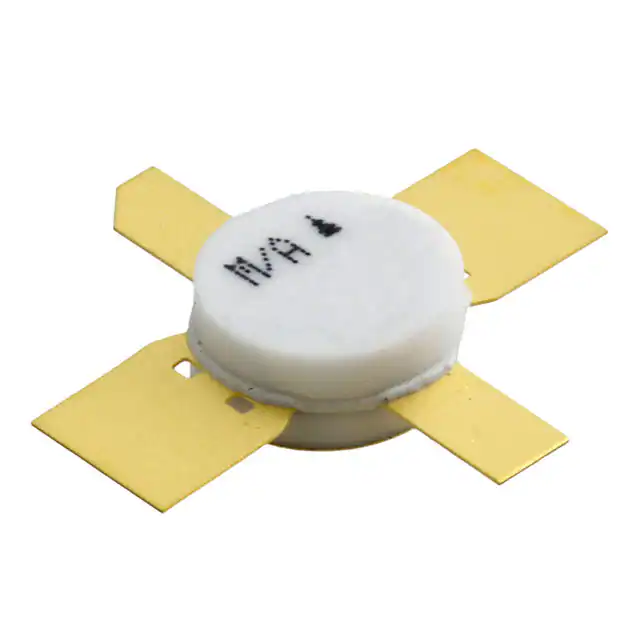

MRF1004MBTRANS NPN 4W 960MHZ-1215MHZ |
9,973 | 0.00 |
|
Datasheet |
- | 332A-03 | Tray | Active | NPN | 20V | - | - | 11dB | 4W | 10 @ 75mA, 5V | 250mA | - | - | - | Chassis Mount | 332A-03, Style 1 |
|

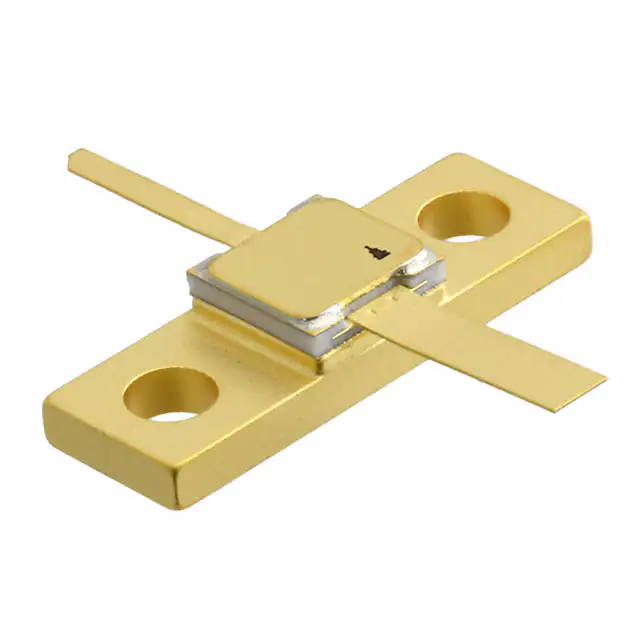

MRF10005TRANS 5W 960MHZ-1215MHZ |
3,290 | 0.00 |
|
Datasheet |
- | 336E-02 | Tray | Active | NPN | 55V | - | - | 8.5dB ~ 10.3dB | 25W | 20 @ 500mA, 5V | 1.25mA | 200°C (TJ) | - | - | Chassis Mount | 336E-02, Style 1 |
|
|
MDS70RF TRANS NPN 65V 1.09GHZ 55CX |
8,534 | 0.00 |
|
Datasheet |
- | 55CX | Bulk | Obsolete | NPN | 65V | 1.03GHz ~ 1.09GHz | - | 10.3dB ~ 11.65dB | 225W | 20 @ 500mA, 5V | 5A | 200°C (TJ) | - | - | Chassis Mount | 55CX |
|
|
MRF455MPTRANSISTOR,<30MHZ,12.5V,60W,MATC |
6,798 | 0.00 |
|
- |
- | 211-07, Style 1 | Bulk | Active | NPN | 18V | 30MHz | - | 13dB | 175W | 10 @ 5A, 5V | 15A | - | - | - | Chassis Mount | 211-07, Style 1 |
|
|
1014-12RF TRANS NPN 50V 1.4GHZ 55LT |
6,391 | 0.00 |
|
Datasheet |
- | 55LT | Bulk | Obsolete | NPN | 50V | 1GHz ~ 1.4GHz | - | 6.8dB | 39W | 10 @ 200mA, 5V | 5A | 200°C (TJ) | - | - | Chassis Mount | 55LT |
|
|
1014-6ARF TRANS NPN 50V 1.4GHZ 55LV |
9,561 | 0.00 |
|
Datasheet |
- | 55LV | Bulk | Obsolete | NPN | 50V | 1GHz ~ 1.4GHz | - | 7dB ~ 7.5dB | 19W | - | 1A | 200°C (TJ) | - | - | Chassis Mount | 55LV |
|
|
MS1582RF TRANS NPN 30V 860MHZ M173 |
2,633 | 0.00 |
|
- |
- | M173 | Bulk | Obsolete | NPN | 30V | 470MHz ~ 860MHz | - | 9dB | 135W | 10 @ 3A, 5V | 8A | 200°C (TJ) | - | - | Chassis Mount | M173 |
|
|
MRF448ATRANSISTOR,<30MHZ,50V,250W |
6,481 | 0.00 |
|
- |
- | 211-11, Style 2 | Bulk | Active | NPN | 50V | - | - | 14dB | 290W | 25 @ 5A, 10V | 16A | - | - | - | Chassis Mount | 211-11, Style 2 |
|
|
MDS140LRF TRANS NPN 70V 1.09GHZ 55AW |
6,506 | 0.00 |
|
Datasheet |
- | 55AW | Bulk | Obsolete | NPN | 70V | 1.03GHz ~ 1.09GHz | - | 9.5dB | 500W | 20 @ 1A, 5V | 12A | 200°C (TJ) | - | - | Chassis Mount | 55AW |
|
|
TAN150RF TRANS NPN 55V 1.215GHZ 55AT |
3,089 | 0.00 |
|
Datasheet |
- | 55AT | Bulk | Obsolete | NPN | 55V | 960MHz ~ 1.215GHz | - | 7dB | 583W | 10 @ 1A, 5V | 15A | 200°C (TJ) | - | - | Chassis Mount | 55AT |
|
|
MS2212RF TRANS NPN 55V 1.215GHZ M222 |
9,928 | 0.00 |
|
- |
- | M222 | Bulk | Obsolete | NPN | 55V | 960MHz ~ 1.215GHz | - | 8.1dB ~ 8.9dB | 50W | 15 @ 500mA, 5V | 1.8A | 250°C (TJ) | - | - | Chassis Mount | M222 |
|
|
PH1090-15LTRANSISTOR,15W,1.03-1.09GHZ,45V |
6,371 | 0.00 |
|
- |
- | 2L-FLG | Bulk | Active | NPN | 60V | 1.09GHz | - | 9dB | 58W | - | 1A | 200°C (TJ) | - | - | Chassis Mount | 2L-FLG |
