Single Bipolar Transistors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Transistor Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce Saturation (Max) @ Ib, Ic | Current - Collector Cutoff (Max) | DC Current Gain (hFE) (Min) @ Ic, Vce | Power - Max | Frequency - Transition | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

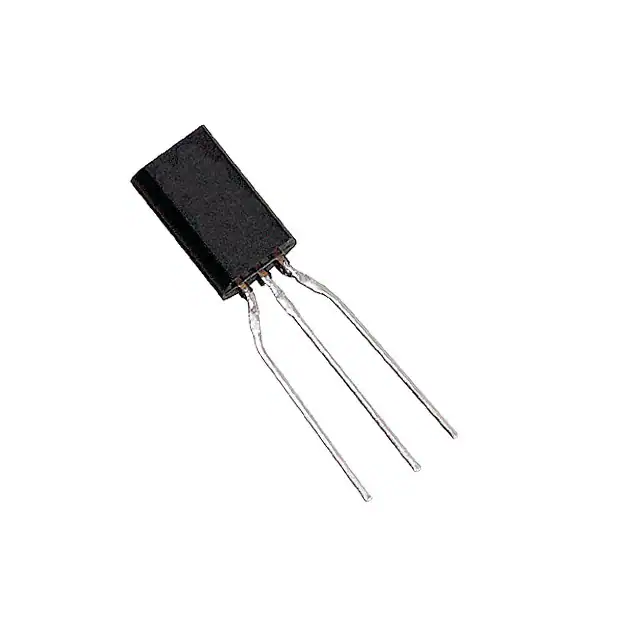

2SA1619ARATRANS PNP 50V 0.5A TO-92NL-A1 |
4,538 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Tape & Box (TB) | Obsolete | PNP | 500 mA | 50 V | 600mV @ 30mA, 300mA | 100nA (ICBO) | 120 @ 150mA, 10V | 1 W | 200MHz | 150°C (TJ) | - | - | Through Hole | TO-92NL-A1 |
|
|
2SA1619ASATRANS PNP 50V 0.5A TO-92NL-A1 |
7,813 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Tape & Box (TB) | Obsolete | PNP | 500 mA | 50 V | 600mV @ 30mA, 300mA | 100nA (ICBO) | 170 @ 150mA, 10V | 1 W | 200MHz | 150°C (TJ) | - | - | Through Hole | TO-92NL-A1 |
|
KSE13003H1ASTRANS NPN 400V 1.5A TO-126-3 |
7,452 | 0.00 |
|
Datasheet |
- | TO-225AA, TO-126-3 | Bulk | Obsolete | NPN | 1.5 A | 400 V | 3V @ 500mA, 1.5A | - | 9 @ 500mA, 2V | 20 W | 4MHz | 150°C (TJ) | - | - | Through Hole | TO-126-3 |
|
|
KSE13003H2ASTRANS NPN 400V 1.5A TO-126-3 |
3,822 | 0.00 |
|
Datasheet |
- | TO-225AA, TO-126-3 | Bulk | Obsolete | NPN | 1.5 A | 400 V | 3V @ 500mA, 1.5A | - | 14 @ 500mA, 2V | 20 W | 4MHz | 150°C (TJ) | - | - | Through Hole | TO-126-3 |
|
|
KSE13003ASTRANS NPN 400V 1.5A TO-126-3 |
2,753 | 0.00 |
|
Datasheet |
- | TO-225AA, TO-126-3 | Bulk | Obsolete | NPN | 1.5 A | 400 V | 3V @ 500mA, 1.5A | - | 8 @ 500mA, 2V | 20 W | 4MHz | 150°C (TJ) | - | - | Through Hole | TO-126-3 |
|
KSA1242YTUTRANS PNP 20V 5A IPAK |
8,301 | 0.00 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | PNP | 5 A | 20 V | 1V @ 100mA, 4A | 100µA (ICBO) | 160 @ 500mA, 2V | 10 W | 180MHz | 150°C (TJ) | - | - | Through Hole | IPAK |
, SC-63.JPG)
|
KSH29ITUTRANS NPN 40V 1A IPAK |
7,248 | 0.00 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | NPN | 1 A | 40 V | 700mV @ 125mA, 1A | 50µA | 15 @ 1A, 4V | 1.56 W | 3MHz | 150°C (TJ) | - | - | Through Hole | IPAK |
|
KSH29CITUTRANS NPN 100V 1A IPAK |
9,335 | 0.00 |
|
Datasheet |
- | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | NPN | 1 A | 100 V | 700mV @ 125mA, 1A | 50µA | 15 @ 1A, 4V | 1.56 W | 3MHz | 150°C (TJ) | - | - | Through Hole | IPAK |
|
BCP 56-10 H6433TRANS NPN 80V 1A PG-SOT223-4 |
6,931 | 0.00 |
|
Datasheet |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Discontinued at Digi-Key | NPN | 1 A | 80 V | 500mV @ 50mA, 500mA | 100nA (ICBO) | 63 @ 150mA, 2V | 2 W | 100MHz | 150°C (TJ) | - | - | Surface Mount | PG-SOT223-4 |
|
|
2SC4208ARATRANS NPN 50V 0.5A TO-92NL-A1 |
4,652 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Tape & Box (TB) | Obsolete | NPN | 500 mA | 50 V | 600mV @ 30mA, 300mA | - | 120 @ 150mA, 10V | 1 W | 150MHz | 150°C (TJ) | - | - | Through Hole | TO-92NL-A1 |
|
|
KSB795OSTUTRANS PNP DARL 80V 1.5A TO-126-3 |
8,468 | 0.00 |
|
Datasheet |
- | TO-225AA, TO-126-3 | Tube | Obsolete | PNP - Darlington | 1.5 A | 80 V | 1.5V @ 1mA, 1A | 10µA (ICBO) | 4000 @ 1A, 2V | 1 W | - | 150°C (TJ) | - | - | Through Hole | TO-126-3 |
|
PBSS4620PA-QXPBSS4620PA-Q/SOT1061/HUSON3 |
2,386 | 0.00 |
|
- |
- | 3-PowerUDFN | Tape & Reel (TR) | Active | NPN | 6 A | 20 V | 275mV @ 300mA, 6A | 100nA | 280 @ 500mA, 2V | 500 mW | 80MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 3-HUSON (2x2) |
|
2STL2580TRANS NPN 400V 1A TO-92MOD |
8,524 | 0.00 |
|
Datasheet |
- | TO-226-3, TO-92-3 Long Body | Bag | Obsolete | NPN | 1 A | 400 V | 1V @ 200mA, 1A | 10µA (ICBO) | 60 @ 250mA, 5V | 1.5 W | - | 150°C (TJ) | - | - | Through Hole | TO-92MOD |
|
2SA1585STPQTRANS PNP 20V 2A SPT |
9,463 | 0.00 |
|
Datasheet |
- | SC-72 Formed Leads | Tape & Box (TB) | Obsolete | PNP | 2 A | 20 V | 500mV @ 100mA, 2A | 100nA (ICBO) | 120 @ 100mA, 2V | 400 mW | 240MHz | 150°C (TJ) | - | - | Through Hole | SPT |
|
|
2SA1585STPRTRANS PNP 20V 2A SPT |
3,742 | 0.00 |
|
Datasheet |
- | SC-72 Formed Leads | Tape & Box (TB) | Obsolete | PNP | 2 A | 20 V | 500mV @ 100mA, 2A | 100nA (ICBO) | 180 @ 100mA, 2V | 400 mW | 240MHz | 150°C (TJ) | - | - | Through Hole | SPT |
|
FMMT459TCTRANS NPN 450V 0.15A SOT-23-3 |
4,324 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 150 mA | 450 V | 90mV @ 6mA, 50mA | 100nA | 50 @ 30mA, 10V | 625 mW | 50MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
PBSS4520X-QFTRANS NPN 20V 5A SOT-89 |
8,395 | 0.00 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | NPN | 5 A | 20 V | 220mV @ 500mA, 5A | 100nA | 300 @ 1A, 2V | 550 mW | 125MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-89 |
|
|
KSE13003ASTUTRANS NPN 400V 1.5A TO-126-3 |
3,002 | 0.00 |
|
Datasheet |
- | TO-225AA, TO-126-3 | Tube | Obsolete | NPN | 1.5 A | 400 V | 3V @ 500mA, 1.5A | - | 8 @ 500mA, 2V | 20 W | 4MHz | 150°C (TJ) | - | - | Through Hole | TO-126-3 |
|
|
ZXT11N15DFTCTRANS NPN 15V 3A SOT-23-3 |
3,824 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 3 A | 15 V | 150mV @ 150mA, 3A | 100nA | 300 @ 200mA, 2V | 625 mW | 145MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
ZXT11N20DFTCTRANS NPN 20V 2.5A SOT-23-3 |
8,115 | 0.00 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Obsolete | NPN | 2.5 A | 20 V | 130mV @ 250mA, 2.5A | 100nA | 300 @ 100mA, 2V | 625 mW | 160MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
