Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

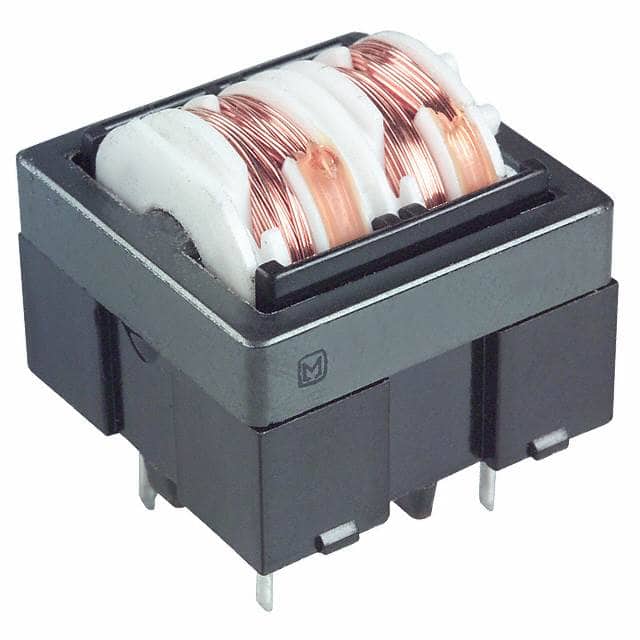

ELF-18D225CMC 6.8MH 800MA 2LN TH Panasonic Electronic Components |
3,775 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.8 mH @ 1 kHz | 800mA | 519mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D213CMC 3.3MH 2LN TH Panasonic Electronic Components |
4,463 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | - | - | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D219CMC 2.7MH 1.3A 2LN TH Panasonic Electronic Components |
1,989 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.7 mH @ 1 kHz | 1.3A | 197mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D235FCMC 47MH 300MA 2LN TH Panasonic Electronic Components |
3,555 | 1.74 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 47 mH @ 1 kHz | 300mA | 2.768Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|

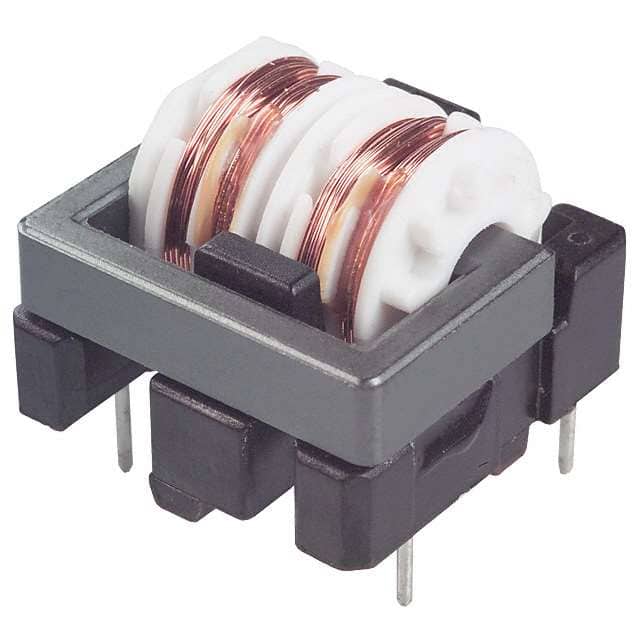

ELF-18D270JCMC 300MA 2LN TH Panasonic Electronic Components |
2,811 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 300mA | 2.691Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D270BCMC 400MA 2LN TH Panasonic Electronic Components |
2,392 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 400mA | 1.707Ohm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D270DCMC 1.1A 2LN TH Panasonic Electronic Components |
2,525 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.1A | 248mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
ELF-18D270CCMC 1.5A 2LN TH Panasonic Electronic Components |
4,451 | 2.88 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 1.5A | 162mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-18D423CMC 27MH 600MA 2LN TH Panasonic Electronic Components |
1,680 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 27 mH @ 1 kHz | 600mA | 1.136Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D417CMC 18MH 700MA 2LN TH Panasonic Electronic Components |
2,046 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 700mA | 700mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
