Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

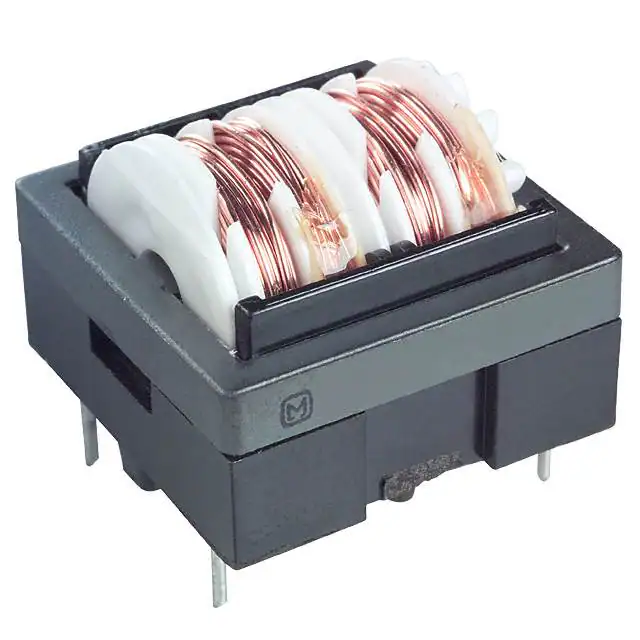

ELF-18D433CMC 3.9MH 1.5A 2LN TH Panasonic Electronic Components |
4,193 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.9 mH @ 1 kHz | 1.5A | 176mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D414CMC 3.3MH 1.8A 2LN TH Panasonic Electronic Components |
1,824 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 3.3 mH @ 1 kHz | 1.8A | 138mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D437FCMC 68MH 400MA 2LN TH Panasonic Electronic Components |
3,545 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 68 mH @ 1 kHz | 400mA | 2.319Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D417FCMC 18MH 800MA 2LN TH Panasonic Electronic Components |
3,251 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 800mA | 655mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D434FCMC 2.7MH 2A 2LN TH Panasonic Electronic Components |
4,623 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 2.7 mH @ 1 kHz | 2A | 111mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D420FCMC 1.2MH 3A 2LN TH Panasonic Electronic Components |
4,360 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.2 mH @ 1 kHz | 3A | 43mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|

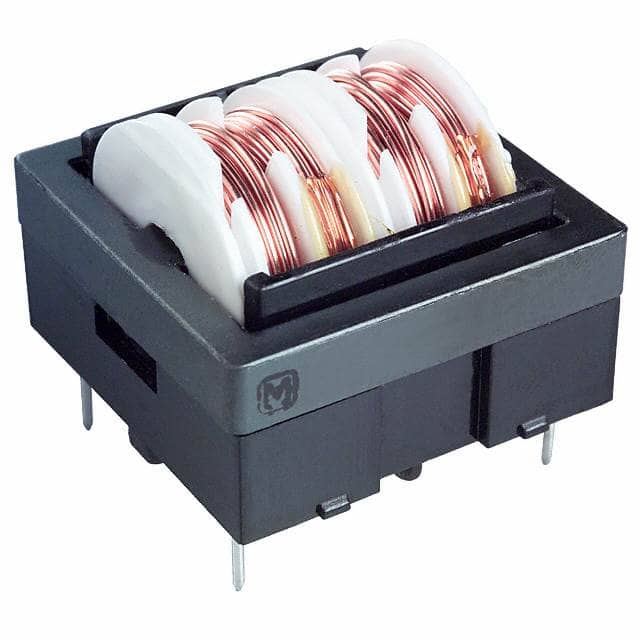

ELF-18D620CMC 100MH 400MA 2LN TH Panasonic Electronic Components |
2,933 | 4.33 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 100 mH @ 1 kHz | 400mA | 2.448Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D615CMC 39MH 700MA 2LN TH Panasonic Electronic Components |
4,587 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 39 mH @ 1 kHz | 700mA | 1.075Ohm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D618CMC 27MH 800MA 2LN TH Panasonic Electronic Components |
1,134 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 27 mH @ 1 kHz | 800mA | 708mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D606CMC 18MH 1A 2LN TH Panasonic Electronic Components |
2,909 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 1A | 462mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
