Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELF-18D609CMC 12MH 1.3A 2LN TH Panasonic Electronic Components |
2,143 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12 mH @ 1 kHz | 1.3A | 309mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D604CMC 4.7MH 2A 2LN TH Panasonic Electronic Components |
4,990 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.7 mH @ 1 kHz | 2A | 125mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D614CMC 1.8MH 2.8A 2LN TH Panasonic Electronic Components |
1,521 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.8 mH @ 1 kHz | 2.8A | 62mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D606FCMC 18MH 1.2A 2LN TH Panasonic Electronic Components |
3,638 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 1.2A | 331mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D609FCMC 12MH 1.6A 2LN TH Panasonic Electronic Components |
4,624 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12 mH @ 1 kHz | 1.6A | 226mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D601FCMC 10MH 1.6A 2LN TH Panasonic Electronic Components |
3,209 | 2.40 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 1.6A | 214mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D603FCMC 5.6MH 2.2A 2LN TH Panasonic Electronic Components |
1,175 | 4.33 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.6 mH @ 1 kHz | 2.2A | 111mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
ELF-18D604FCMC 4.7MH 2.5A 2LN TH Panasonic Electronic Components |
3,245 | 2.40 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.7 mH @ 1 kHz | 2.5A | 87mOhm (Typ) | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|

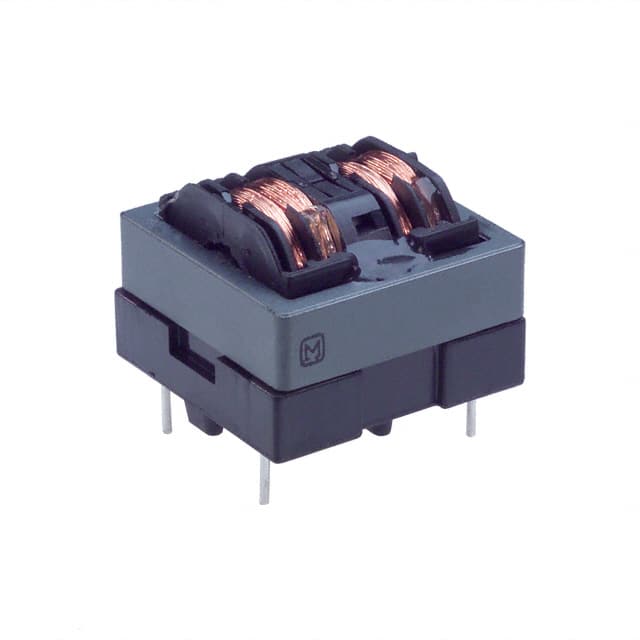

ELF-25C016ACMC 1.6A 2LN TH Panasonic Electronic Components |
3,055 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.6A | 180mOhm (Typ) | - | 250V | -20°C ~ 115°C | - | - | - | - | - |
|
|
ELF-25C032ACMC 3.2A 2LN TH Panasonic Electronic Components |
2,102 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 3.2A | 53mOhm (Typ) | - | 250V | -20°C ~ 115°C | - | - | - | - | - |
