Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0426.201NLTFIXED IND 200NH 26A 2.2 MOHM SMD Pulse Electronics |
2,095 | 3.22 |
|
Datasheet |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 200 nH | ±20% | 26 A | 46A | Shielded | 2.2mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|

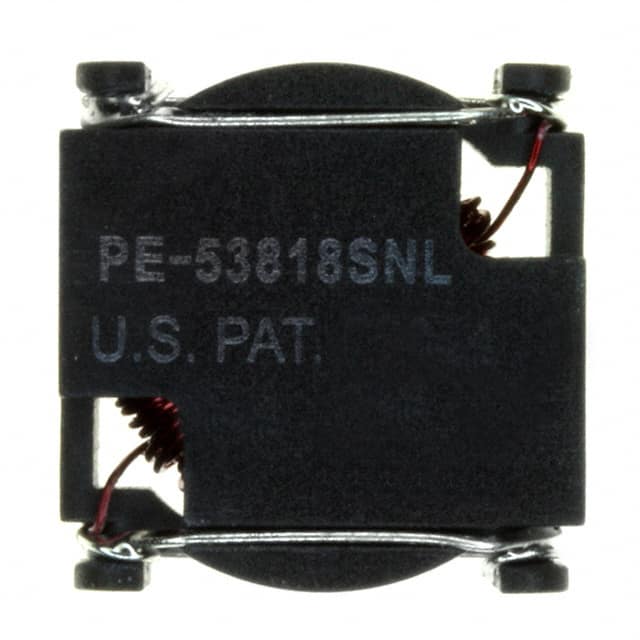

PE-53818SNLFIXED IND 252UH 440MA 900MOHM SM Pulse Electronics |
182 | 3.10 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 252 µH | ±20% | 440 mA | - | Shielded | 900mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

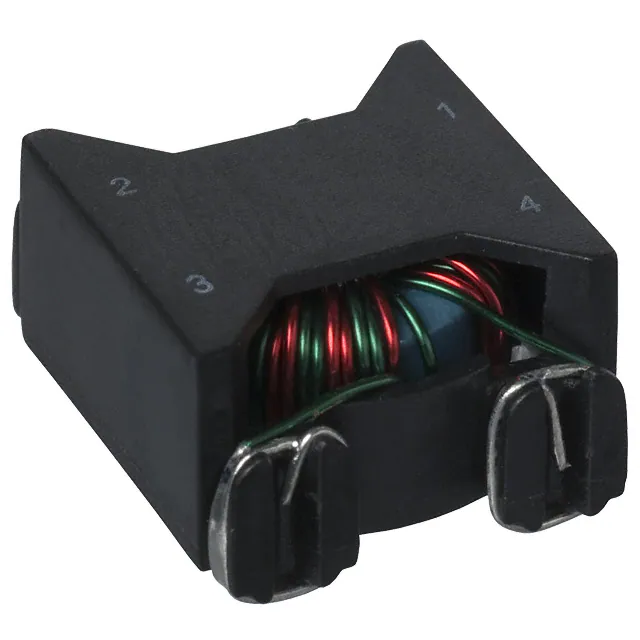

PE-53718NLFIXED IND 21.9UH 2.7A 90.5 MOHM Pulse Electronics |
1,010 | 3.27 |
|
Datasheet |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 21.9 µH | - | 2.7 A | - | Unshielded | 90.5mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.390" (9.91mm) |
|

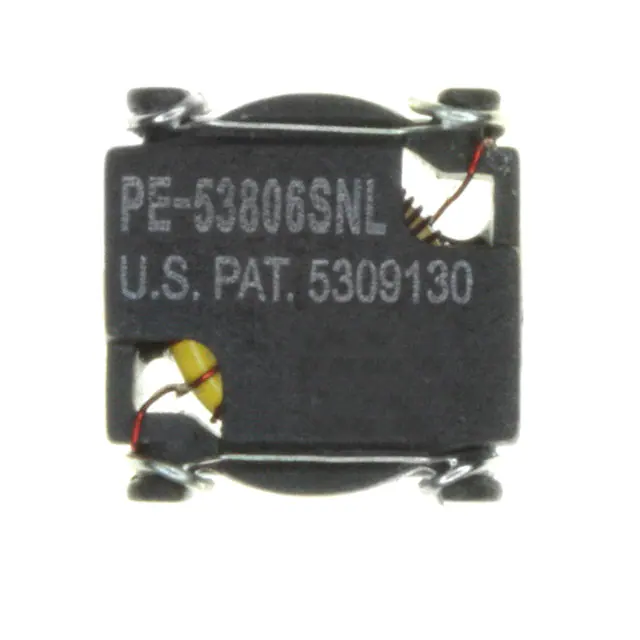

PE-53806SNLFIXED IND 39UH 340MA 800MOHM SMD Pulse Electronics |
1,268 | 3.18 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 39 µH | ±20% | 340 mA | - | Shielded | 800mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
PE-53823SNLFIXED IND 38UH 1.2A 100 MOHM SMD Pulse Electronics |
617 | 3.18 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 38 µH | ±20% | 1.2 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-54041SNLTFIXED IND 25UH 3A 40 MOHM SMD Pulse Electronics |
520 | 3.31 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±20% | 3 A | - | Shielded | 40mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|

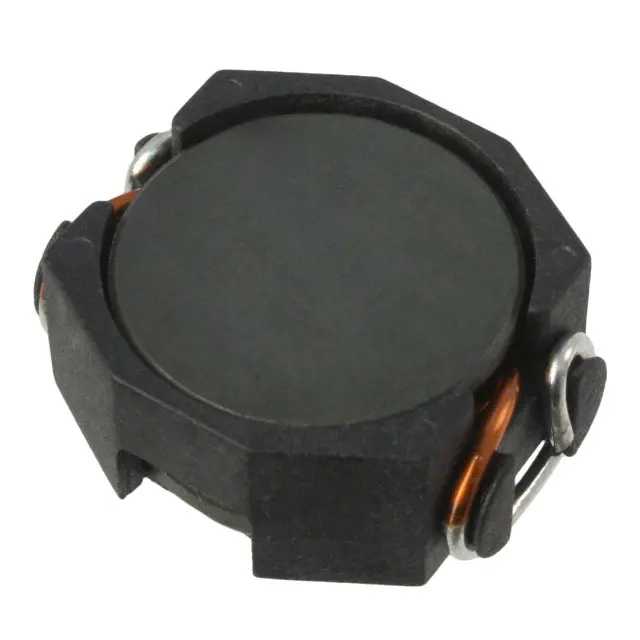

PB2020.153NLFIXED IND 15UH 9.7A 13 MOHM SMD Pulse Electronics |
1,271 | 3.94 |
|
Datasheet |
PB2020NL | Nonstandard | Tube | Active | Wirewound | - | 15 µH | ±20% | 9.7 A | 18A | Unshielded | 13mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.820" W (23.87mm x 20.83mm) | 0.400" (10.16mm) |
|
|
PA2050.233NLFIXED IND 23UH 8A 13.7 MOHM SMD Pulse Electronics |
695 | 5.23 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 23 µH | ±10% | 8 A | 9.8A | Shielded | 13.7mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
PG0077.202NLTFIXED IND 2UH 23A 2.9 MOHM SMD Pulse Electronics |
1,909 | 3.09 |
|
Datasheet |
PG0077NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 2 µH | ±20% | 23 A | 24A | Unshielded | 2.9mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.256" (6.50mm) |
|
PA2729.383NLFIXED IND 38.3UH 6.5A 19.7 MOHM Pulse Electronics |
1,040 | 3.56 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 38.3 µH | ±15% | 6.5 A | 7.8A | Shielded | 19.7mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
