Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

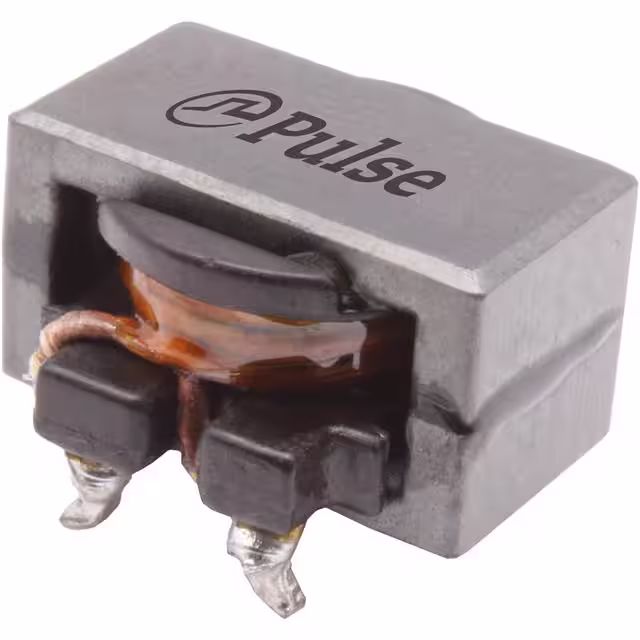

PH9499.122CNLTINDUCTOR 1.25UH 3.5A ER11 SMD Pulse Electronics |
400 | 4.03 |
|
Datasheet |
PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.25 µH | ±6% | 3.5 A | 22A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | 0.299" (7.60mm) |
|

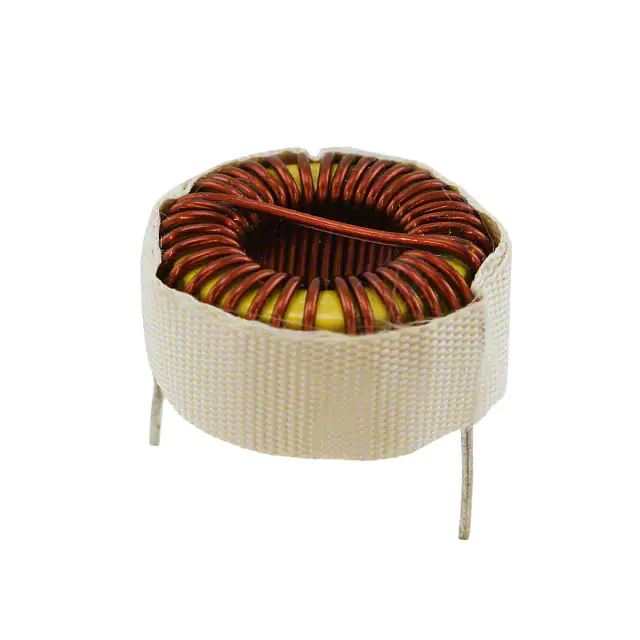

PE-92408NLFIXED IND 67UH 3.6A 45 MOHM TH Pulse Electronics |
548 | 3.94 |
|
Datasheet |
- | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 67 µH | ±20% | 3.6 A | - | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia (26.67mm) | 0.550" (13.97mm) |
|

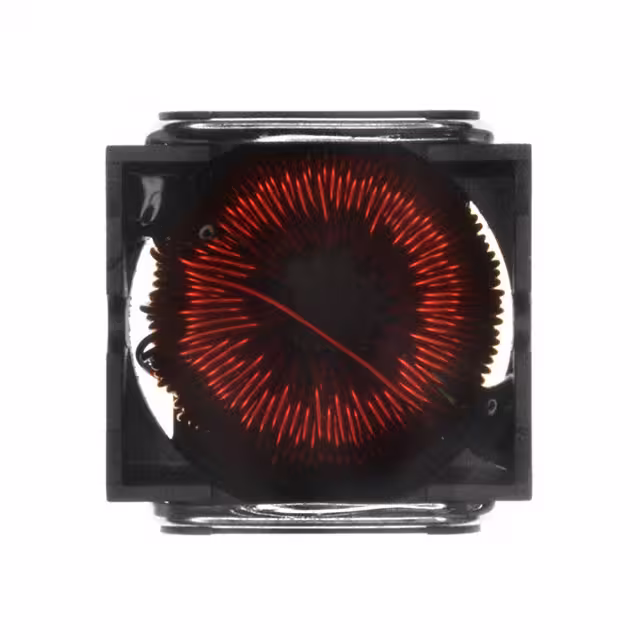

PE-53935SNLFIXED IND 250UH 1.5A 230MOHM SMD Pulse Electronics |
417 | 3.69 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 250 µH | ±20% | 1.5 A | - | Shielded | 230mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|

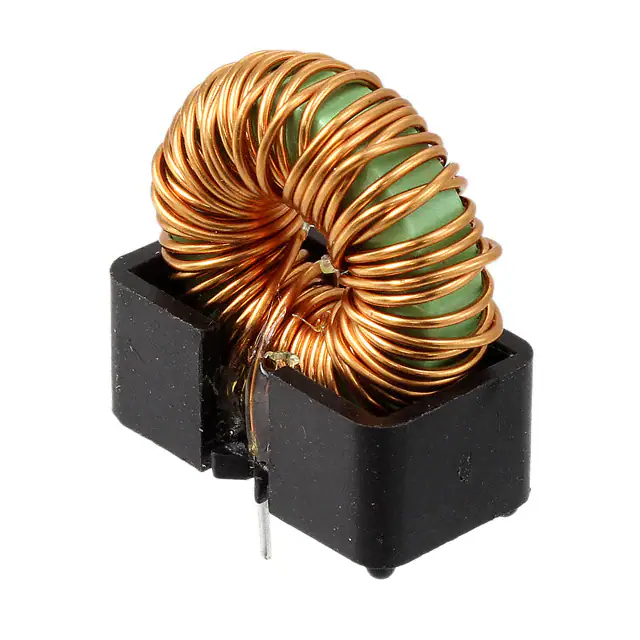

PE-54044NLFIXED IND 77UH 3A 80 MOHM TH Pulse Electronics |
1,101 | 4.00 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 77 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
|
PH9499.102CNLTINDUCTOR 1.05UH 3.5A ER11 SMD Pulse Electronics |
377 | 4.03 |
|
Datasheet |
PH9499.XXXCNL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.05 µH | ±6% | 3.5 A | 25A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.384" W (11.20mm x 9.75mm) | 0.299" (7.60mm) |
|
PG0936.682NLTFIXED IND 6.8UH 18A 3.5 MOHM SMD Pulse Electronics |
989 | 4.07 |
|
Datasheet |
PG0936NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 18 A | 18A | Unshielded | 3.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
|
PE-92104NLFIXED IND 70UH 3A 52 MOHM TH Pulse Electronics |
555 | 3.98 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 70 µH | ±20% | 3 A | - | Unshielded | 52mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.850" Dia x 0.410" W (21.59mm x 10.41mm) | - |
|
PA4344.102NLTFIXED IND 1UH 52A 2 MOHM SMD Pulse Electronics |
1,052 | 4.57 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | - | 52 A | 60A | Shielded | 2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|
PE-53820SNLFIXED IND 115UH 670MA 400MOHM SM Pulse Electronics |
222 | 4.17 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 115 µH | ±20% | 670 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PA4344.222NLTFIXED IND 2.2UH 43.5A 2.7MOHM SM Pulse Electronics |
434 | 4.57 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | - | 43.5 A | 46A | Shielded | 2.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
