Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2729.243NLFIXED IND 24.5UH 8.1A 12.5 MOHM Pulse Electronics |
975 | 3.56 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 24.5 µH | ±15% | 8.1 A | 9.8A | Shielded | 12.5mOhm | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
|
PA2729.173NLFIXED IND 17.1UH 9.9A 9.1MOHM SM Pulse Electronics |
636 | 3.56 |
|
Datasheet |
PA2729.XXXNL | Nonstandard | Tray | Active | Wirewound | - | 17.1 µH | ±15% | 9.9 A | 11.7A | Shielded | 9.1mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
PG0077.401NLTFIXED IND 450NH 45A 0.8 MOHM SMD Pulse Electronics |
555 | 3.43 |
|
Datasheet |
PG0077NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 450 nH | ±20% | 45 A | 48A | Unshielded | 0.8mOhm Max | - | - | - | -40°C ~ 95°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.256" (6.50mm) |
|
PE-53821SNLTFIXED IND 78UH 820MA 300MOHM SMD Pulse Electronics |
2,021 | 2.00 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 78 µH | ±20% | 820 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53828SNLFIXED IND 168UH 1.02A 400MOHM SM Pulse Electronics |
1,199 | 3.18 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 168 µH | ±20% | 1.02 A | - | Shielded | 400mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PE-53683NLTFIXED IND 9.4UH 10.9A 12.3 MOHM Pulse Electronics |
1,103 | 3.34 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 9.4 µH | - | 10.9 A | - | Unshielded | 12.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.390" (9.91mm) |
|

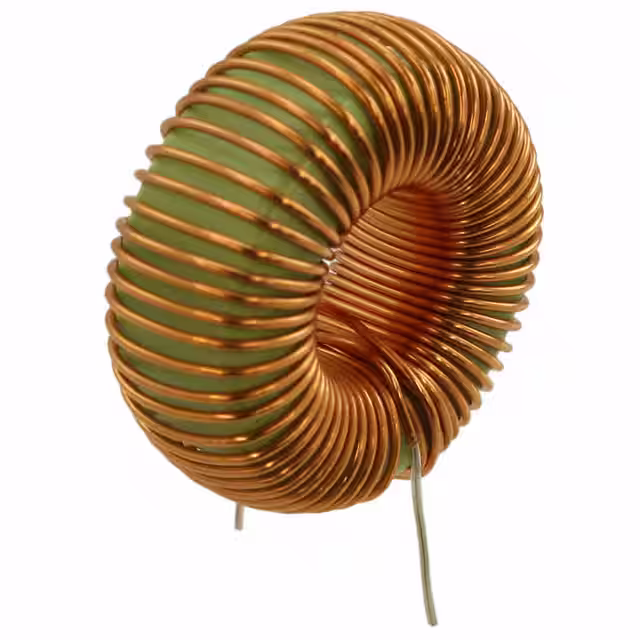

PE-92106NLFIXED IND 285UH 3A 140 MOHM TH Pulse Electronics |
615 | 0.00 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 285 µH | ±20% | 3 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.400" Dia x 0.700" W (35.56mm x 17.78mm) | - |
|

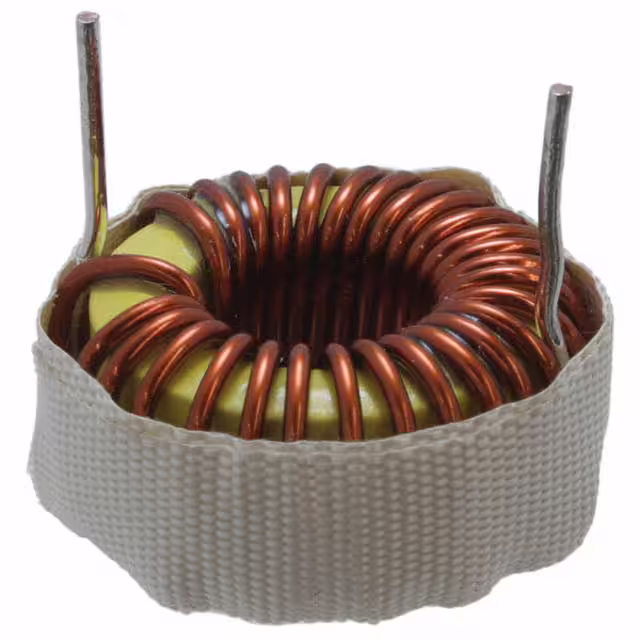

PE-92414NLFIXED IND 35.6UH 5A 23 MOHM TH Pulse Electronics |
592 | 5.31 |
|
Datasheet |
- | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 35.6 µH | ±20% | 5 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia (26.67mm) | 0.550" (13.97mm) |
|

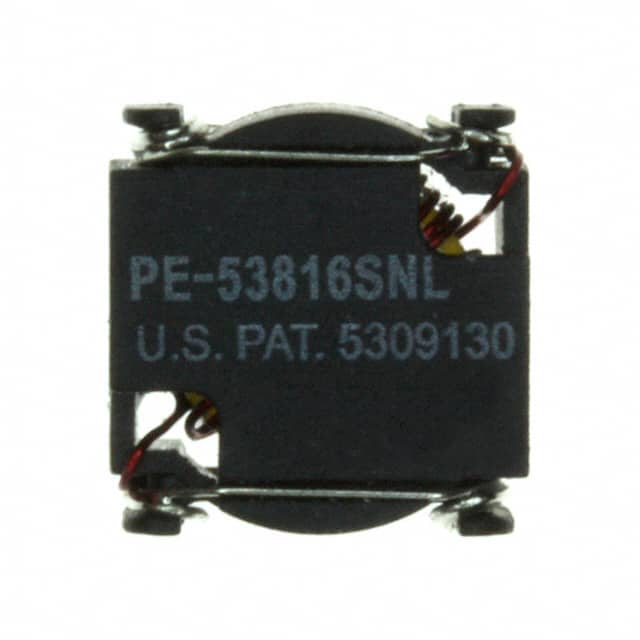

PE-53816SNLFIXED IND 17UH 1.02A 100MOHM SMD Pulse Electronics |
213 | 3.18 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 17 µH | ±20% | 1.02 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|

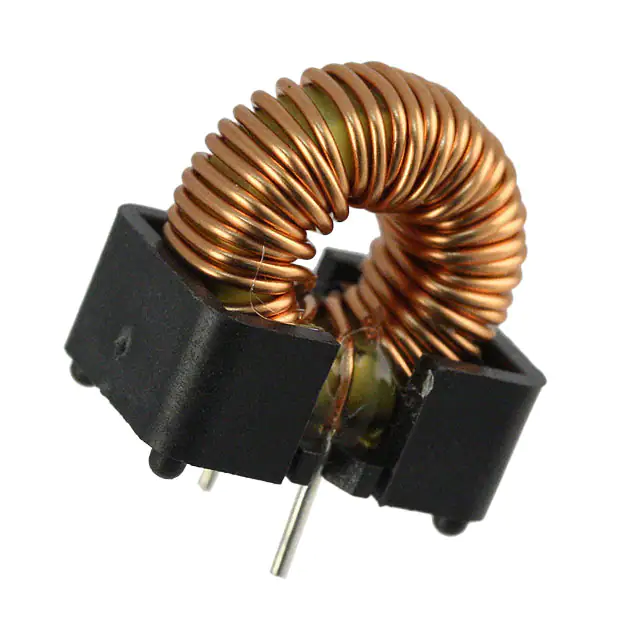

PE-54041NLFIXED IND 25UH 3A 40 MOHM TH Pulse Electronics |
1,104 | 3.58 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 25 µH | ±20% | 3 A | - | Shielded | 40mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.700" (17.78mm) |
