Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-92106KNLFIXED IND 285UH 3A 140 MOHM TH Pulse Electronics |
569 | 5.94 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 285 µH | ±20% | 3 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|

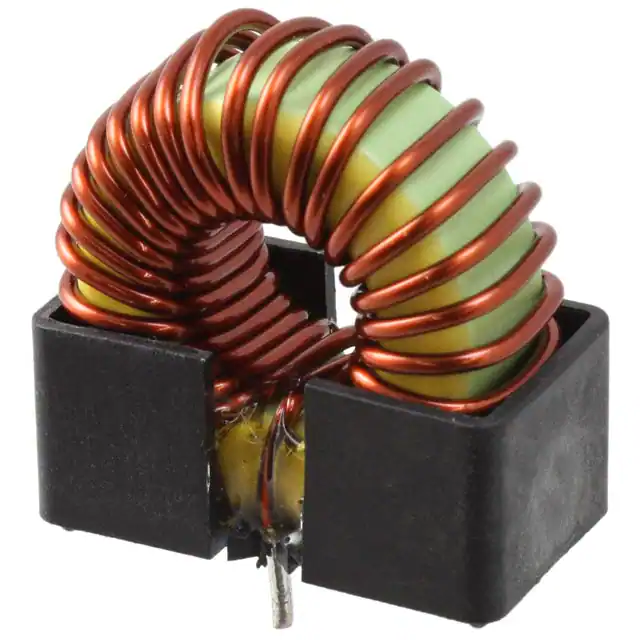

PE-92116KNLFIXED IND 55UH 7A 17 MOHM TH Pulse Electronics |
1,803 | 5.56 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 55 µH | ±20% | 7 A | - | Unshielded | 17mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|
P0144NLTFIXED IND 10.4UH 3.8A 31MOHM SMD Pulse Electronics |
2,351 | 5.76 |
|
Datasheet |
Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 10.4 µH | - | 3.8 A | - | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
P0146NLTFIXED IND 25UH 2.43A 75 MOHM SMD Pulse Electronics |
785 | 5.76 |
|
Datasheet |
Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | - | 2.43 A | - | Unshielded | 75mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
PA1494.622NLTFIXED IND 6.2UH 9A 1.8 MOHM SMD Pulse Electronics |
877 | 6.64 |
|
Datasheet |
PA1494NL | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 6.2 µH | ±15% | 9 A | 11A | Shielded | 1.8mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.780" L x 0.770" W (19.81mm x 19.56mm) | 0.290" (7.37mm) |
|

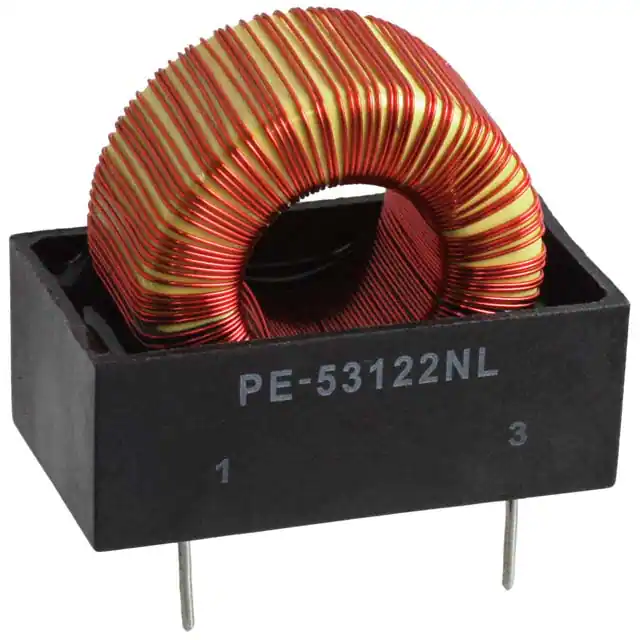

PE-53122NLFIXED IND 2.2MH 420MA 1.8 OHM TH Pulse Electronics |
245 | 7.44 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 2.2 mH | ±20% | 420 mA | - | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.440" L x 0.800" W (36.57mm x 20.32mm) | 1.440" (36.57mm) |
|

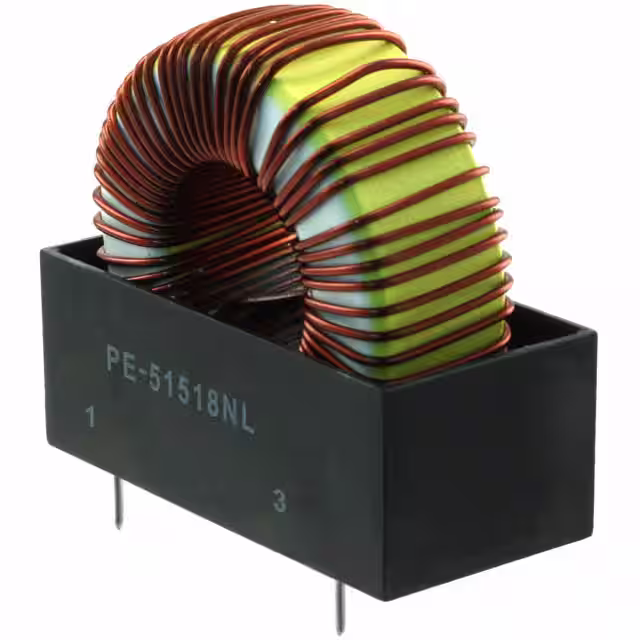

PE-51518NLFIXED IND 335UH 6A 95 MOHM TH Pulse Electronics |
142 | 13.15 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 335 µH | - | 6 A | - | Unshielded | 95mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 2.300" L x 1.110" W (58.42mm x 28.19mm) | 2.300" (58.42mm) |
|
BSCH001005052N0SCSINDUCTOR RF Pulse Electronics |
288,902 | 0.01 |
|
Datasheet |
BSCH | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2 nH | ±0.3nH | 400 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 8.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
BSCQ0006030322NH00FIXED IND 22NH 190MA 1.29OHM SMD Pulse Electronics |
227,300 | 0.10 |
|
Datasheet |
BSCQ | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 22 nH | ±3% | 190 mA | - | Unshielded | 1.29Ohm Max | 14 @ 500MHz | 1.9GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
BBSY00060303102Y00IND BEAD 1000 OHM Pulse Electronics |
225,000 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
