Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2206.102NLTFIXED IND 1UH 11A 10.8 MOHM SMD Pulse Electronics |
819 | 2.97 |
|
Datasheet |
PM2206.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 11 A | 23A | Unshielded | 10.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.081" (2.05mm) |
|
|
PM2207.222NLTFIXED IND 2.2UH 13A 12.4MOHM SMD Pulse Electronics |
969 | 3.00 |
|
Datasheet |
PM2207.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 13 A | 19A | Unshielded | 12.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
PM2207.332NLTFIXED IND 3.3UH 10A 16.3MOHM SMD Pulse Electronics |
4,704 | 3.00 |
|
Datasheet |
PM2207.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 10 A | 15A | Unshielded | 16.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.307" L x 0.299" W (7.80mm x 7.60mm) | 0.122" (3.10mm) |
|
PG0255.102NLFIXED IND 1UH 21A 3.2 MOHM SMD Pulse Electronics |
1,361 | 3.24 |
|
Datasheet |
PG0255NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±15% | 21 A | 27A | Shielded | 3.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
PA4344.103NLTFIXED IND 10UH 16.5A 13 MOHM SMD Pulse Electronics |
3,296 | 4.57 |
|
Datasheet |
PA4344.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | - | 16.5 A | 24A | Shielded | 13mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.697" L x 0.677" W (17.70mm x 17.20mm) | 0.276" (7.00mm) |
|

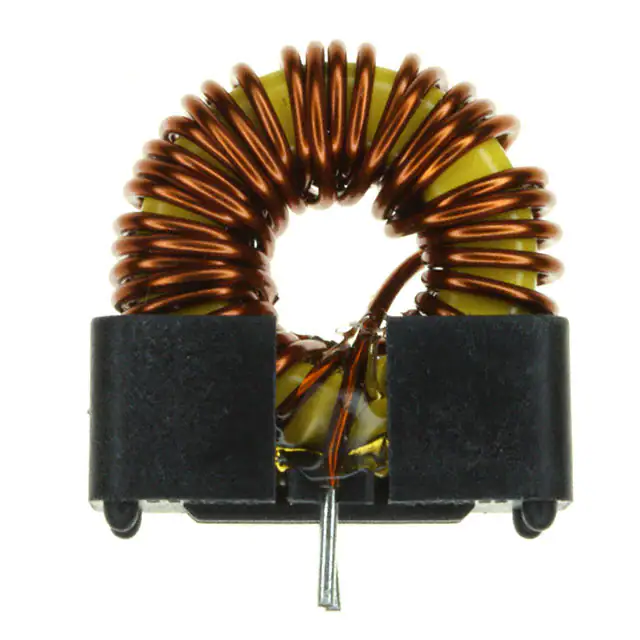

P0841NLFIXED IND 22.8UH 4.9A 36 MOHM TH Pulse Electronics |
2,535 | 5.38 |
|
Datasheet |
KlipMount™ | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 22.8 µH | ±20% | 4.9 A | - | Shielded | 36mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|

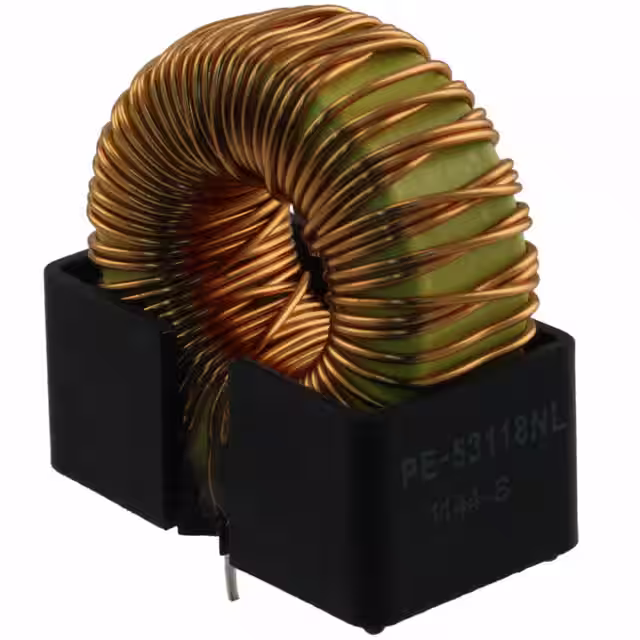

PE-53118NLFIXED IND 470UH 2A 170 MOHM TH Pulse Electronics |
4,660 | 5.83 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 470 µH | ±20% | 2 A | - | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|
PE-53819SNLFIXED IND 173UH 540MA 600MOHM SM Pulse Electronics |
1,405 | 2.62 |
|
Datasheet |
- | Nonstandard | Tube | Active | Toroidal | - | 173 µH | ±20% | 540 mA | - | Shielded | 600mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

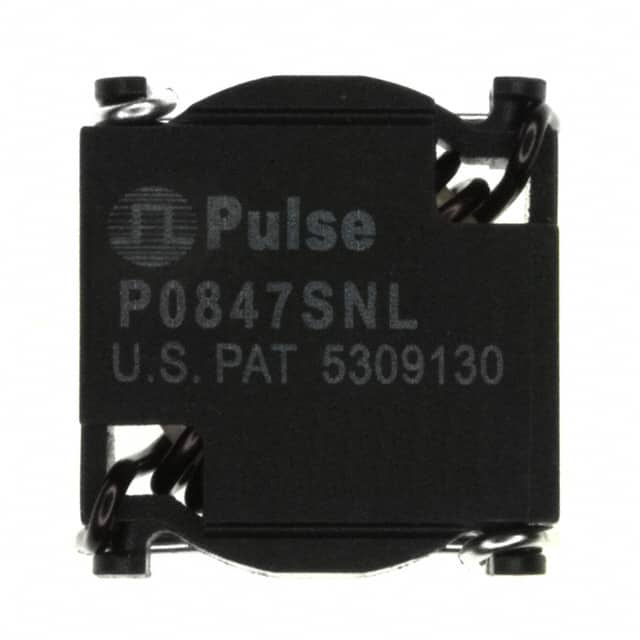

P0847SNLFIXED IND 10UH 5A 25 MOHM SMD Pulse Electronics |
2,273 | 3.24 |
|
Datasheet |
LCI-50 | Nonstandard | Tube | Active | Toroidal | - | 10 µH | ±20% | 5 A | - | Shielded | 25mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|

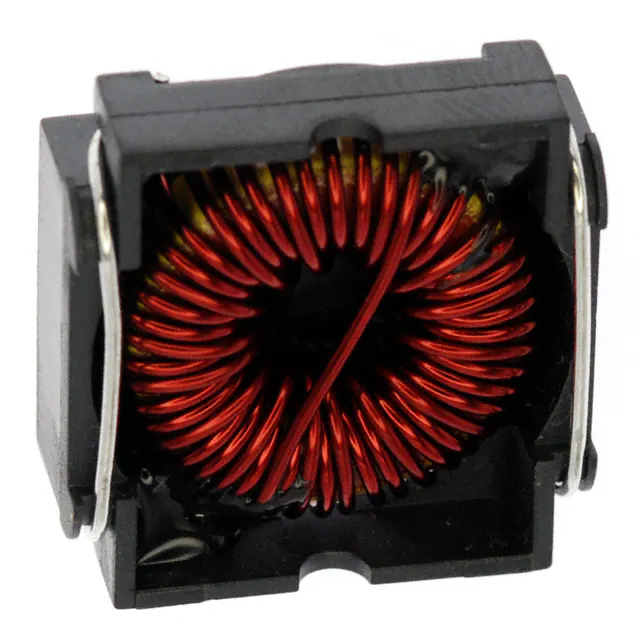

PE-54040SNLFIXED IND 38UH 3A 50 MOHM SMD Pulse Electronics |
4,967 | 3.75 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 38 µH | ±20% | 3 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
