Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

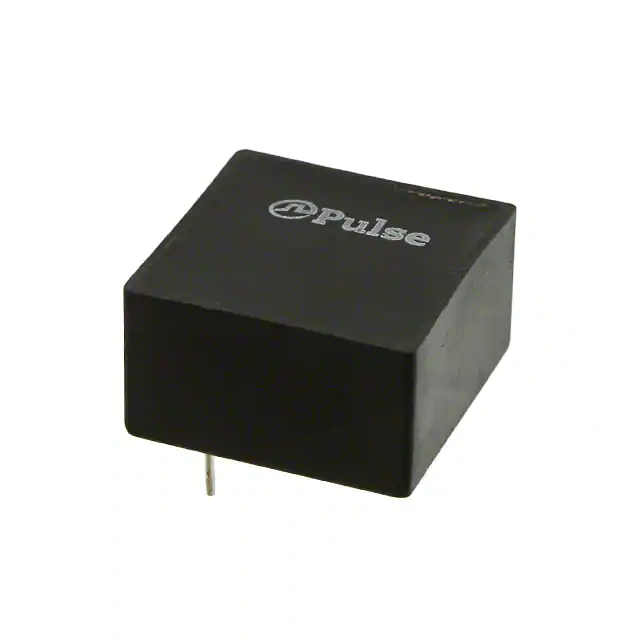

PE-53932NLFIXED IND 37UH 2.24A 100 MOHM TH Pulse Electronics |
2,674 | 3.91 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 37 µH | ±20% | 2.24 A | - | Shielded | 100mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|
P0848NLFIXED IND 50UH 5A 50 MOHM TH Pulse Electronics |
1,759 | 4.87 |
|
Datasheet |
KlipMount™ | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 50 µH | ±20% | 5 A | - | Shielded | 50mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 1.350" (34.29mm) |
|
BWCS00231715R22J00INDUCTOR RF Pulse Electronics |
3,718 | 0.07 |
|
Datasheet |
BWCS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 400 mA | - | Unshielded | 700mOhm Max | 50 @ 250MHz | 850MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
BDHE002520102R2MQ1FIXED IND 2.2UH 2.5A 97 MOHM SMD Pulse Electronics |
3,599 | 0.28 |
|
Datasheet |
BDHE | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2.5 A | 3A | Unshielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
BMRF001010403R3MA1FIXED IND 3.3UH 11A 13.2MOHM SMD Pulse Electronics |
4,480 | 1.04 |
|
Datasheet |
BMRF | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 11 A | 12A | Shielded | 13.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.398" W (11.60mm x 10.10mm) | 0.157" (4.00mm) |
|
PA0390.102NLFIXED IND 1.2UH 4.4A 17.7MOHM SM Pulse Electronics |
4,650 | 1.40 |
|
Datasheet |
PA0390NL | Nonstandard | Tray | Active | Wirewound | - | 1.2 µH | ±20% | 4.4 A | 5.3A | Unshielded | 17.7mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.200" (5.08mm) |
|
PE-53831SNLFIXED IND 53UH 1.87A 130MOHM SMD Pulse Electronics |
3,585 | 3.17 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 53 µH | ±20% | 1.87 A | - | Shielded | 130mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PA4320.103NLTFIXED IND 10UH 7.6A 16 MOHM SMD Pulse Electronics |
2,580 | 3.05 |
|
Datasheet |
PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 7.6 A | 9.6A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
PE-53822SNLTFIXED IND 54UH 1A 200 MOHM SMD Pulse Electronics |
1,700 | 2.00 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 54 µH | ±20% | 1 A | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PG0936.452NLFIXED IND 4.5UH 22A 2.9 MOHM SMD Pulse Electronics |
3,180 | 0.00 |
|
Datasheet |
PG0936NL | Nonstandard | Tray | Active | Wirewound | - | 4.5 µH | ±20% | 22 A | 22A | Unshielded | 2.9mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.657" W (17.50mm x 16.70mm) | 0.394" (10.00mm) |
