Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0702.472NLFIXED IND 4.7UH 8.4A 5.3MOHM SMD Pulse Electronics |
3,107 | 0.00 |
|
Datasheet |
PG0702NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 8.4 A | 8.4A | Shielded | 5.3mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.362" W (10.80mm x 9.20mm) | 0.315" (8.00mm) |
|
P0250.224NLTFIXED IND 220UH 1.2A 380MOHM SMD Pulse Electronics |
3,617 | 1.72 |
|
Datasheet |
P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±15% | 1.2 A | 2.4A | Unshielded | 380mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
PE-53817SNLFIXED IND 375UH 360MA 1.3OHM SMD Pulse Electronics |
1,615 | 3.44 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | 375 µH | ±20% | 360 mA | - | Shielded | 1.3Ohm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PA4346.471ANLTFIXED IND 470NH 34A 0.9 MOHM SMD Pulse Electronics |
4,920 | 2.19 |
|
Datasheet |
PA4346.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 34 A | 58A | Shielded | 0.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
PD0120.532NLFIXED IND 5.7UH 10.4A 8.5MOHM SM Pulse Electronics |
4,012 | 0.00 |
|
Datasheet |
PD0120NL | Nonstandard | Tray | Active | Wirewound | - | 5.7 µH | ±10% | 10.4 A | 13.6A | Unshielded | 8.5mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.638" L x 0.628" W (16.20mm x 15.95mm) | 0.323" (8.20mm) |
|
PE-53600NLFIXED IND 6.2UH 1.4A 70 MOHM SMD Pulse Electronics |
2,175 | 2.14 |
|
Datasheet |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 6.2 µH | - | 1.4 A | - | Unshielded | 70mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
PG1083.472NLFIXED IND 4.7UH 26A 2.8 MOHM SMD Pulse Electronics |
2,689 | 0.00 |
|
Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 4.7 µH | ±20% | 26 A | 30A | Unshielded | 2.8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|

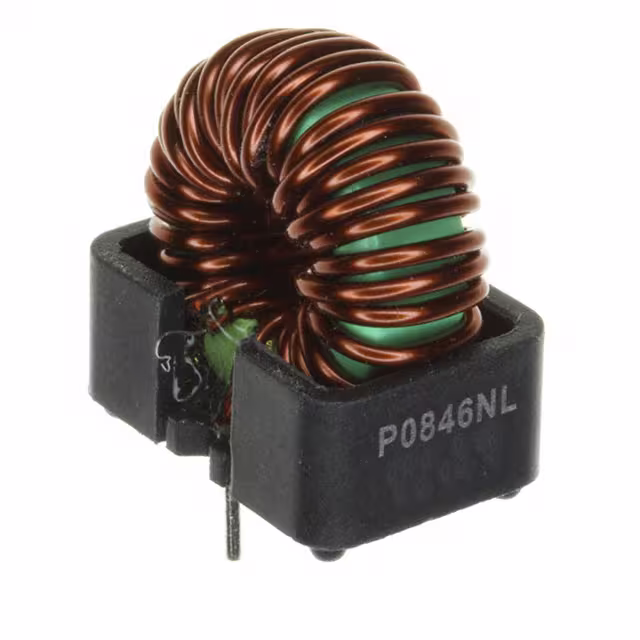

P0846NLFIXED IND 14.8UH 5A 23 MOHM TH Pulse Electronics |
3,795 | 3.15 |
|
Datasheet |
KlipMount™ | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 14.8 µH | ±20% | 5 A | - | Shielded | 23mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.670" L x 0.460" W (17.02mm x 11.69mm) | 0.750" (19.05mm) |
|
PE-53683NLFIXED IND 9.4UH 10.9A 12.3 MOHM Pulse Electronics |
4,959 | 3.10 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | 9.4 µH | - | 10.9 A | - | Unshielded | 12.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.390" (9.91mm) |
|
PE-53611NLTFIXED IND 383UH 720MA 862MOHM SM Pulse Electronics |
1,273 | 3.13 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 383 µH | - | 720 mA | - | Unshielded | 862mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
