Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

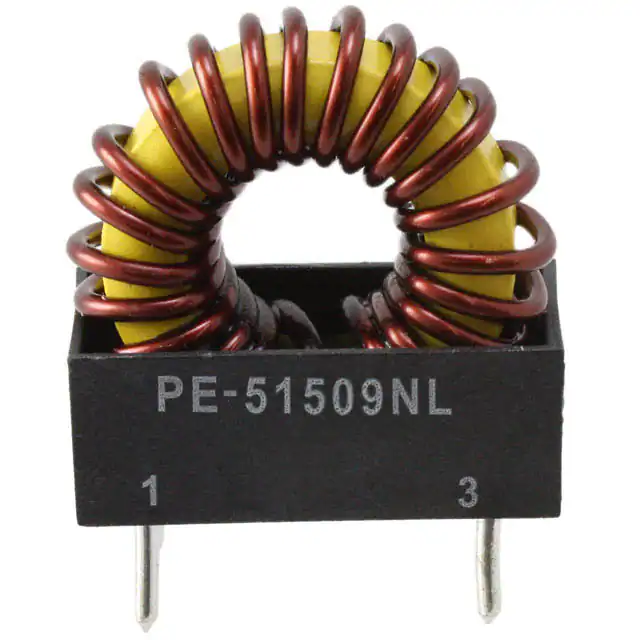

PE-51509NLFIXED IND 14UH 10A 9 MOHM TH Pulse Electronics |
4,770 | 5.83 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 14 µH | - | 10 A | - | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.200" L x 0.600" W (30.48mm x 15.24mm) | 1.200" (30.48mm) |
|

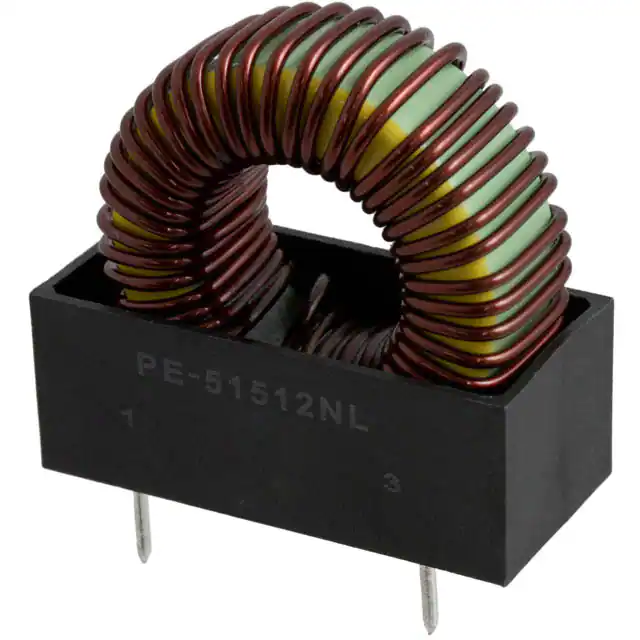

PE-51512NLFIXED IND 90UH 10A 28 MOHM TH Pulse Electronics |
1,973 | 11.97 |
|
Datasheet |
- | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 90 µH | - | 10 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.950" L x 0.910" W (49.53mm x 23.11mm) | 2.000" (50.80mm) |
|
P0250.103NLFIXED IND 10UH 4.3A 31 MOHM SMD Pulse Electronics |
2,312 | 0.00 |
|
Datasheet |
P0250NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±15% | 4.3 A | 10A | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
PE-0603CD390GTTFIXED IND 39NH 600MA 250MOHM SMD Pulse Electronics |
1,129 | 0.45 |
|
Datasheet |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±2% | 600 mA | - | Unshielded | 250mOhm Max | 35 @ 250MHz | 2.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
P0770.103NLFIXED IND 10UH 1.1A 160 MOHM SMD Pulse Electronics |
3,346 | 0.00 |
|
Datasheet |
P0770NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±20% | 1.1 A | 1.1A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
PA3790.201HLFIXED IND 200NH 57A 0.29MOHM SMD Pulse Electronics |
3,783 | 0.00 |
|
Datasheet |
PA3790.XXXHL | Nonstandard | Tray | Active | - | - | 200 nH | ±15% | 57 A | 73A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.315" W (12.50mm x 8.00mm) | 0.315" (8.00mm) |
|
|
P0250.102NLFIXED IND 1UH 8.6A 9 MOHM SMD Pulse Electronics |
4,158 | 0.00 |
|
Datasheet |
P0250NL | Nonstandard | Tray | Active | Wirewound | - | 1 µH | ±15% | 8.6 A | 20A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
P1167.823NLFIXED IND 82UH 700MA 350MOHM SMD Pulse Electronics |
2,831 | 0.00 |
|
Datasheet |
P1167NL | Nonstandard | Tray | Active | Wirewound | - | 82 µH | ±20% | 700 mA | 700mA | Shielded | 350mOhm Max | - | 8MHz | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|
PA2607.211AHLFIXED IND 215NH 41A 0.29MOHM SMD Pulse Electronics |
2,814 | 0.00 |
|
Datasheet |
PA2607AHL | Nonstandard | Tray | Active | - | - | 215 nH | ±15% | 41 A | 48A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.287" (7.30mm) |
|
|
PA2607.231AHLFIXED IND 230NH 41A 0.29MOHM SMD Pulse Electronics |
4,595 | 0.00 |
|
Datasheet |
PA2607AHL | Nonstandard | Tray | Active | - | - | 230 nH | ±15% | 41 A | 43A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.287" (7.30mm) |
