Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETQ-P6M3R3YLCFIXED IND 3.3UH 17A 6.6 MOHM SMD Panasonic Electronic Components |
2,111 | 2.37 |
|
Datasheet |
PCC-M1060ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 17 A | 26A | Shielded | 6.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.236" (6.00mm) |
|
|
ETQ-P6M2R5YLCFIXED IND 2.5UH 19.6A 5 MOHM SMD Panasonic Electronic Components |
988 | 2.37 |
|
Datasheet |
PCC-M1060ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.5 µH | ±20% | 19.6 A | 27A | Shielded | 5mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.236" (6.00mm) |
|
ETQ-P4LR36AFCFIXED IND 360NH 30A 0.76MOHM SMD Panasonic Electronic Components |
2,742 | 3.43 |
|
Datasheet |
PCC-M1040L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | 360 nH | ±20% | 30 A | - | Shielded | 0.76mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

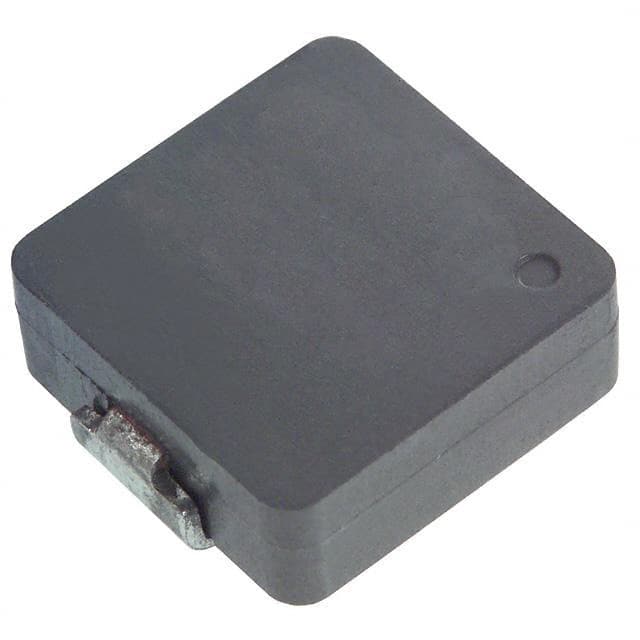

ETQ-P5LR50XFAFIXED IND 500NH 30A 0.8 MOHM SMD Panasonic Electronic Components |
1,154 | 3.54 |
|
Datasheet |
PCC-M1250L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Metal Composite | 500 nH | ±20% | 30 A | - | Shielded | 0.8mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.571" L x 0.492" W (14.50mm x 12.50mm) | 0.197" (5.00mm) |
|
ETQ-P8M1R0JFAFIXED IND 1UH 31.8A 1.5 MOHM SMD Panasonic Electronic Components |
739 | 3.63 |
|
Datasheet |
PCC-M1280MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 31.8 A | 44.4A | Shielded | 1.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.520" W (12.60mm x 13.20mm) | 0.315" (8.00mm) |
|
|
ETQ-P8M3R3JFAFIXED IND 3.3UH 19.6A 3.96 MOHM Panasonic Electronic Components |
593 | 3.63 |
|
Datasheet |
PCC-M1280MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 19.6 A | 27.6A | Shielded | 3.96mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.516" W (12.60mm x 13.10mm) | 0.315" (8.00mm) |
|
|
ETQ-P8M2R5JFAFIXED IND 2.5UH 23A 2.86MOHM SMD Panasonic Electronic Components |
592 | 3.63 |
|
Datasheet |
PCC-M1280MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.5 µH | ±20% | 23 A | 32.1A | Shielded | 2.86mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.520" W (12.60mm x 13.20mm) | 0.315" (8.00mm) |
|
ETQ-P3MR68KVPFIXED IND 680NH 10.2A 8.36 MOHM Panasonic Electronic Components |
7,297 | 1.08 |
|
Datasheet |
PCC-M0530M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 10.2 A | 15.9A | Shielded | 8.36mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
|
ETQ-P3M1R5KVNFIXED IND 1.5UH 9.1A 12.1MOHM SM Panasonic Electronic Components |
4,969 | 1.12 |
|
Datasheet |
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 9.1 A | 14.2A | Shielded | 12.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|
|
ETQ-P3M3R3KVNFIXED IND 3.3UH 6.1A 26.51 MOHM Panasonic Electronic Components |
6,005 | 1.12 |
|
Datasheet |
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 6.1 A | 11.5A | Shielded | 26.51mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
