Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETQ-P5M2R5YFCFIXED IND 2.5UH 18.1A 5.9MOHM SM Panasonic Electronic Components |
2,012 | 1.75 |
|
Datasheet |
PCC-M1054M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.5 µH | ±20% | 18.1 A | 27.2A | Shielded | 5.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
|
ETQ-P5M3R3YFCFIXED IND 3.3UH 15.7A 7.9MOHM SM Panasonic Electronic Components |
1,467 | 1.75 |
|
Datasheet |
PCC-M1054M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 15.7 A | 22.7A | Shielded | 7.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|

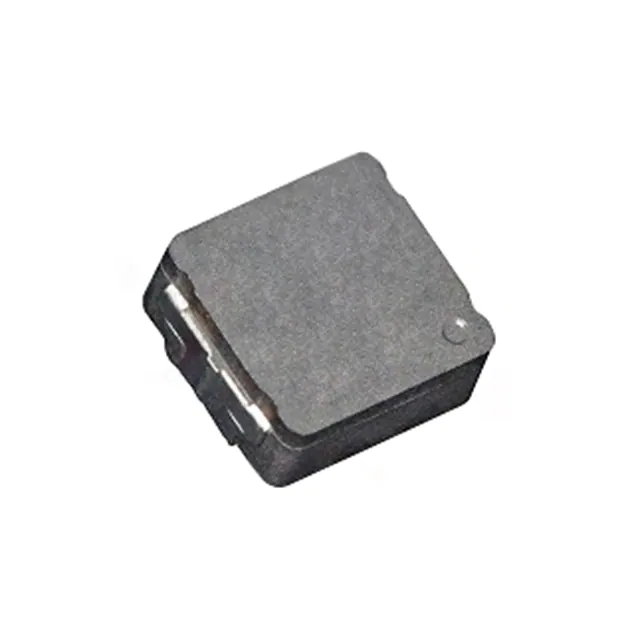

ETQ-P3M2R2HFPFIXED IND 2.2UH 6.3A 21.5MOHM SM Panasonic Electronic Components |
2,914 | 1.81 |
|
Datasheet |
PCC-M0530M-H | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 6.3 A | 9A | Shielded | 21.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
|
ETQ-P3M100HFNFIXED IND 10UH 3.7A 74.8MOHM SMD Panasonic Electronic Components |
2,580 | 1.82 |
|
Datasheet |
PCC-M0630M-H | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 3.7 A | 5.5A | Shielded | 74.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.236" W (6.50mm x 6.00mm) | 0.118" (3.00mm) |
|
|
ETQ-P3M220HFNFIXED IND 22UH 2.5A 158.4MOHM SM Panasonic Electronic Components |
4,000 | 1.86 |
|
Datasheet |
PCC-M0630M-H | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 2.5 A | 4A | Shielded | 158.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.236" W (6.50mm x 6.00mm) | 0.118" (3.00mm) |
|
ETQ-P5M2R0YLCFIXED IND 2UH 19.4A 5.06MOHM SMD Panasonic Electronic Components |
3,711 | 2.30 |
|
Datasheet |
PCC-M1050ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 2 µH | ±20% | 19.4 A | 31.3A | Shielded | 5.06mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.197" (5.00mm) |
|
|
ETQ-P5MR68YLCFIXED IND 680NH 31.5A 1.93 MOHM Panasonic Electronic Components |
1,665 | 2.30 |
|
Datasheet |
PCC-M1050ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 31.5 A | 42A | Shielded | 1.93mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.197" (5.00mm) |
|

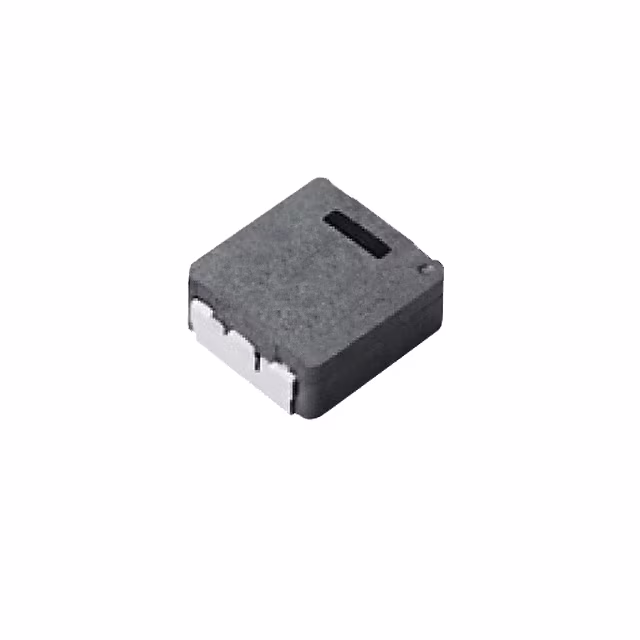

ETQ-P6M150KLCFIXED IND 14UH 11.2A 28 MOHM Panasonic Electronic Components |
864 | 2.35 |
|
Datasheet |
PCC-M1060ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Metal Composite | 14 µH | ±20% | 7.9 A | 11.2A | Shielded | 30.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.236" (6.00mm) |
|
|
ETQ-P6M1R5YLCFIXED IND 1.5UH 23.3A 3.52 MOHM Panasonic Electronic Components |
1,864 | 2.35 |
|
Datasheet |
PCC-M1060ML | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 23.3 A | 32A | Shielded | 3.52mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.236" (6.00mm) |
|

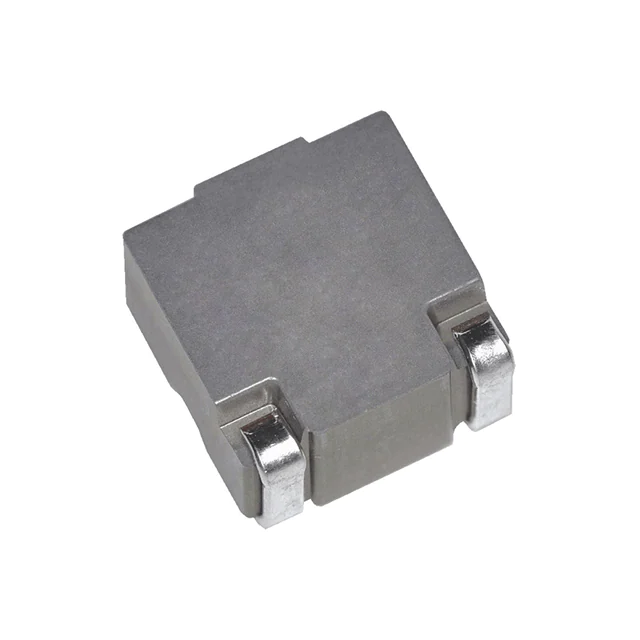

ETQ-P8M1R5JFAFIXED IND 1.5UH 27.7A 1.98 MOHM Panasonic Electronic Components |
317 | 3.63 |
|
Datasheet |
PCC-M1280MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 27.7 A | 29.9A | Shielded | 1.98mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.520" W (12.60mm x 13.20mm) | 0.315" (8.00mm) |
