Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETQ-P4LR36WFCFIXED IND 360NH 24A 1.1 MOHM SMD Panasonic Electronic Components |
3,440 | 3.55 |
|
Datasheet |
PCC-M1040L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | 360 nH | ±20% | 24 A | - | Shielded | 1.1mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
ETQ-P4LR56WFCFIXED IND 560NH 21A 1.56MOHM SMD Panasonic Electronic Components |
2,079 | 3.55 |
|
Datasheet |
PCC-M1040L (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal Composite | 560 nH | ±20% | 21 A | - | Shielded | 1.56mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
ETQ-P8M4R7JFAFIXED IND 4.7UH 16.8A 5.39 MOHM Panasonic Electronic Components |
378 | 3.63 |
|
Datasheet |
PCC-M1280MF | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 16.8 A | 24.7A | Shielded | 5.39mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.496" L x 0.516" W (12.60mm x 13.10mm) | 0.315" (8.00mm) |
|
ETQ-P3MR33KVPFIXED IND 330NH 12.7A 5.3MOHM SM Panasonic Electronic Components |
4,052 | 1.07 |
|
Datasheet |
PCC-M0530M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 12.7 A | 21.8A | Shielded | 5.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.118" (3.00mm) |
|
|
ETQ-P3MR68KVNFIXED IND 680NH 13.2A 5.72 MOHM Panasonic Electronic Components |
4,487 | 1.12 |
|
Datasheet |
PCC-M0630M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 13.2 A | 20.2A | Shielded | 5.72mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.118" (3.00mm) |
|

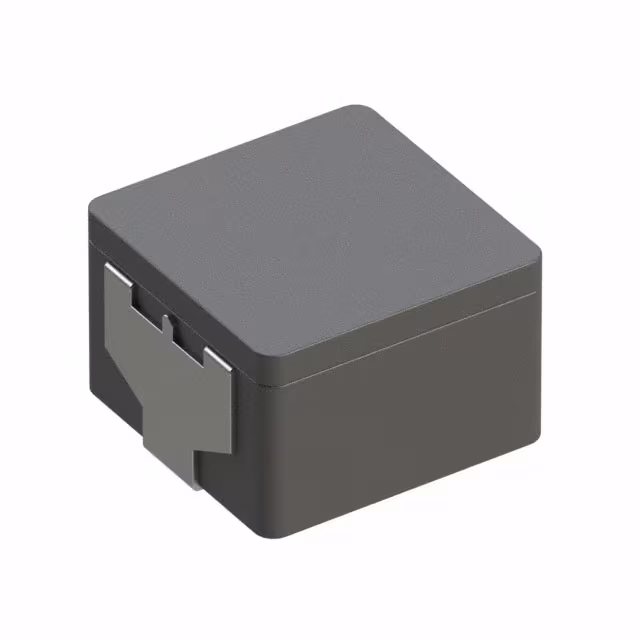

ETQ-P4M6R8KFNFIXED IND 6.8H 9.9A 32.1 MOHM Panasonic Electronic Components |
1,984 | 1.16 |
|
Datasheet |
PCC-M0648M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 5.9 A | 9.9A | Shielded | 35.31mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | 0.189" (4.80mm) |
|
ETQ-P5M6R8YFMFIXED IND 6.8UH 6.9A 29.4MOHM SM Panasonic Electronic Components |
727 | 1.61 |
|
Datasheet |
PCC-M0754M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 6.9 A | 12.1A | Shielded | 29.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
ETQ-P3MR68YFNFIXED IND 680NH 12A 6.9 MOHM SMD Panasonic Electronic Components |
3,427 | 1.61 |
|
Datasheet |
PCC-M0630M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 12 A | 24A | Shielded | 6.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.236" W (6.50mm x 6.00mm) | 0.118" (3.00mm) |
|
ETQ-P5MR68YSCFIXED IND 680NH 32.3A 1.83 MOHM Panasonic Electronic Components |
685 | 2.01 |
|
Datasheet |
PCC-M1050MS | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 32.3 A | 40A | Shielded | 1.83mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.197" (5.00mm) |
|

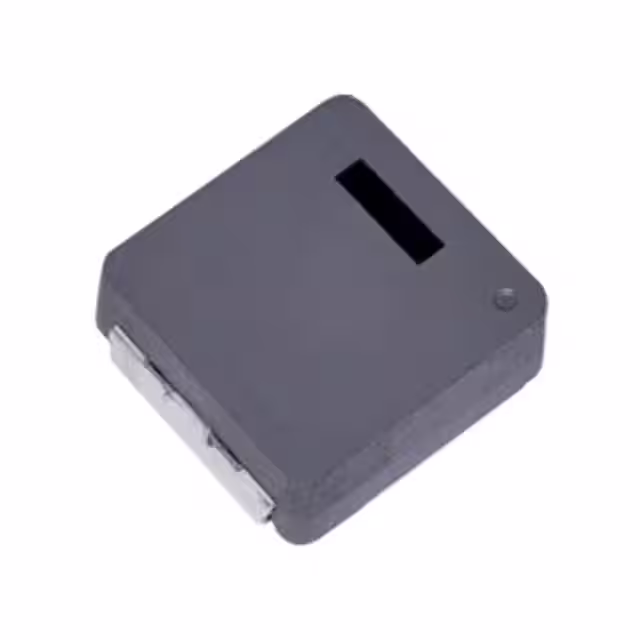

ETQ-P5M2R0YSCFIXED IND 1.9UH 29.8A 4.45 MOHM Panasonic Electronic Components |
638 | 1.99 |
|
Datasheet |
PCC-M1050MS | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | Metal Composite | 1.9 µH | ±20% | 19.8 A | 29.8A | Shielded | 4.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.197" (5.00mm) |
