Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELG-TEAR47NAFIXED IND 470NH 1.2A 100MOHM SMD Panasonic Electronic Components |
1,907 | 0.03 |
|
Datasheet |
ELGTEA | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±30% | 1.2 A | - | Shielded | 100mOhm Max | - | 126MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
ELJ-RF43NJFBFIXED IND 43NH 150MA 1.9 OHM SMD Panasonic Electronic Components |
9,785 | 0.24 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 43 nH | ±5% | 150 mA | - | Unshielded | 1.9Ohm Max | 8 @ 100MHz | 1.8GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF2N7DFBFIXED IND 2.7NH 400MA 100MOHM SM Panasonic Electronic Components |
16,687 | 0.22 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 2.7 nH | ±0.3nH | 400 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 5.5GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

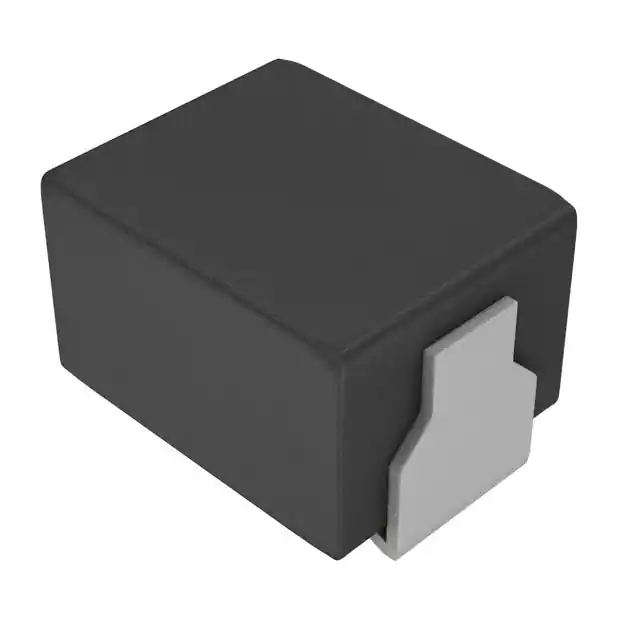

ELJ-NC39NKFFIXED IND 39NH 215MA 550MOHM SMD Panasonic Electronic Components |
11,970 | 0.27 |
|
Datasheet |
NC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 39 nH | ±10% | 215 mA | - | Unshielded | 550mOhm Max | 15 @ 100MHz | 890MHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-RF1N2ZFBFIXED IND 1.2NH 400MA 60MOHM SMD Panasonic Electronic Components |
10,633 | 0.29 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.2 nH | ±0.2nH | 400 mA | - | Unshielded | 60mOhm Max | 8 @ 100MHz | 6GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ELJ-QF2N7ZFFIXED IND 2.7NH 400MA 100MOHM SM Panasonic Electronic Components |
8,714 | 0.28 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 2.7 nH | ±0.2nH | 400 mA | - | Unshielded | 100mOhm Max | 10 @ 100MHz | 5.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
ELJ-RE22NJFAFIXED IND 22NH 300MA 500MOHM SMD Panasonic Electronic Components |
1,142 | 0.30 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 22 nH | ±5% | 300 mA | - | Unshielded | 500mOhm Max | 10 @ 100MHz | 2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
ELJ-RG15NJFFIXED IND 15NH 150MA 2.2 OHM SMD Panasonic Electronic Components |
14,663 | 0.31 |
|
Datasheet |
RG | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | - | Non-Magnetic | 15 nH | ±5% | 150 mA | - | Unshielded | 2.2Ohm Max | 3 @ 100MHz | 5.6GHz | - | - | 100 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.012" (0.31mm) |
|
|
ELJ-RF9N1ZFBFIXED IND 9.1NH 320MA 380MOHM SM Panasonic Electronic Components |
7,765 | 0.29 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 9.1 nH | ±0.2nH | 320 mA | - | Unshielded | 380mOhm Max | 8 @ 100MHz | 3.1GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELG-TEA3R3NAFIXED IND 3.3UH 800MA 250MOHM SM Panasonic Electronic Components |
3,245 | 0.35 |
|
Datasheet |
ELGTEA | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.3 µH | ±30% | 800 mA | - | Shielded | 250mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
