Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETQ-P4MR47KLCINDUCTOR FIXED 0.47UH SMD Panasonic Electronic Components |
830 | 0.00 |
|
Datasheet |
PCC-M1040ML | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 470 nH | ±20% | 31.1 A | 47.3A | Shielded | 1.68mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.157" (4.00mm) |
|
|
ETQ-P8MR33JFAINDUCTOR FIXED 0.33UH SMD Panasonic Electronic Components |
410 | 0.00 |
|
Datasheet |
PCC-M1280MF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal Composite | 330 nH | ±20% | 53.5 A | 84.5A | Shielded | 0.77mOhm Max | - | - | AEC-Q200 | -40°C ~ 160°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.496" W (13.20mm x 12.60mm) | 0.315" (8.00mm) |
|
ELJ-RF24NJFBFIXED IND 24NH 200MA 1 OHM SMD Panasonic Electronic Components |
3,752 | 0.04 |
|
Datasheet |
RF | 0402 (1005 Metric) | Bulk | Obsolete | Multilayer | Non-Magnetic | 24 nH | ±5% | 200 mA | - | Unshielded | 1Ohm Max | 8 @ 100MHz | 1.9GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

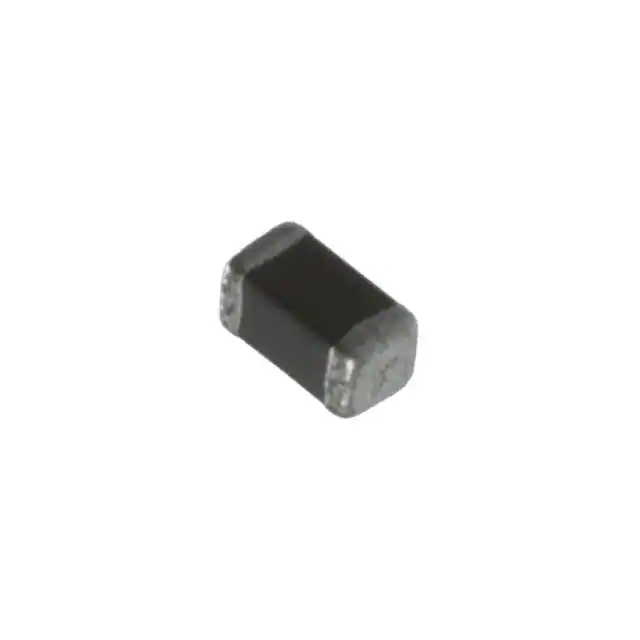

ELJ-RE1N8ZFAFIXED IND 1.8NH 500MA 80MOHM SMD Panasonic Electronic Components |
4,084 | 0.08 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.8 nH | ±0.2nH | 500 mA | - | Unshielded | 80mOhm Max | 8 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|

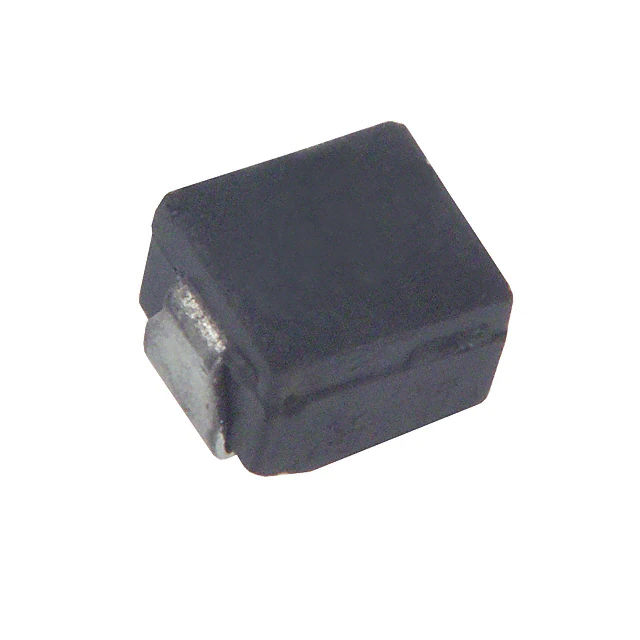

ELJ-FC180KFFIXED IND 18UH 65MA 5.4 OHM SMD Panasonic Electronic Components |
2,000 | 0.33 |
|
Datasheet |
FC | 1008 (2520 Metric) | Bulk | Obsolete | Wirewound | - | 18 µH | ±10% | 65 mA | - | Unshielded | 5.4Ohm Max | 25 @ 2.52MHz | 25MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-RF1N2DFBFIXED IND 1.2NH 400MA 60MOHM SMD Panasonic Electronic Components |
3,805 | 0.03 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 1.2 nH | ±0.3nH | 400 mA | - | Unshielded | 60mOhm Max | 8 @ 100MHz | 6GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-FCR39MFFIXED IND 390NH 160MA 950MOHM SM Panasonic Electronic Components |
2,000 | 0.27 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 390 nH | ±20% | 160 mA | - | Unshielded | 950mOhm Max | 25 @ 25.2MHz | 175MHz | - | -20°C ~ 85°C | 25.2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
ELJ-QF18NJFFIXED IND 18NH 240MA 700MOHM SMD Panasonic Electronic Components |
10,000 | 0.27 |
|
Datasheet |
QF | 0402 (1005 Metric) | Bulk | Obsolete | Multilayer | Ceramic | 18 nH | ±5% | 240 mA | - | Unshielded | 700mOhm Max | 10 @ 100MHz | 2.2GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-RF68NJFBFIXED IND 68NH 120MA 4 OHM SMD Panasonic Electronic Components |
24,359 | 0.22 |
|
Datasheet |
RF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 68 nH | ±5% | 120 mA | - | Unshielded | 4Ohm Max | 8 @ 100MHz | 1.5GHz | - | -20°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-PF4N7DFFIXED IND 4.7NH 1.3A 100MOHM SMD Panasonic Electronic Components |
9,380 | 0.22 |
|
Datasheet |
PF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 4.7 nH | ±0.3nH | 1.3 A | - | Unshielded | 100mOhm Max | 7 @ 100MHz | 4.6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
