IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FF600R12ME4CB11BPSA1MEDIUM POWER ECONO AG-ECONOD-411 Infineon Technologies |
7,124 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | 2 Independent | 1200 V | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
FS200R07A1E3BOSA1IGBT MOD 650V 250A 790W Infineon Technologies |
5,833 | 0.00 |
|
- |
- | Module | Tray | Obsolete | - | Three Phase Inverter | 650 V | 250 A | 790 W | 1.9V @ 15V, 200A | 1 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FF450R17ME3BOSA1IGBT MOD 1700V 605A 2250W Infineon Technologies |
7,566 | 0.00 |
|
- |
EconoDUAL™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | Half Bridge Inverter | 1700 V | 605 A | 2250 W | 2.45V @ 15V, 450A | 3 mA | 40.5 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FF900R17ME7PB11BPSA1MEDIUM POWER ECONO Infineon Technologies |
6,365 | 0.00 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FF600R12ME4CPBPSA1IGBT MODULE VCES 600V 600A Infineon Technologies |
3,110 | 0.00 |
|
- |
EconoDUAL™3 | Module | Tray | Not For New Designs | Trench Field Stop | Half Bridge Inverter | 1200 V | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|
|
FF600R12ME4CPB11BPSA1IGBT MODULE VCES 600V 600A Infineon Technologies |
2,455 | 0.00 |
|
- |
EconoDUAL™3 | Module | Tray | Not For New Designs | Trench Field Stop | Half Bridge Inverter | 1200 V | 1060 A | 4050 W | 2.1V @ 15V, 600A | 3 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONOD |
|

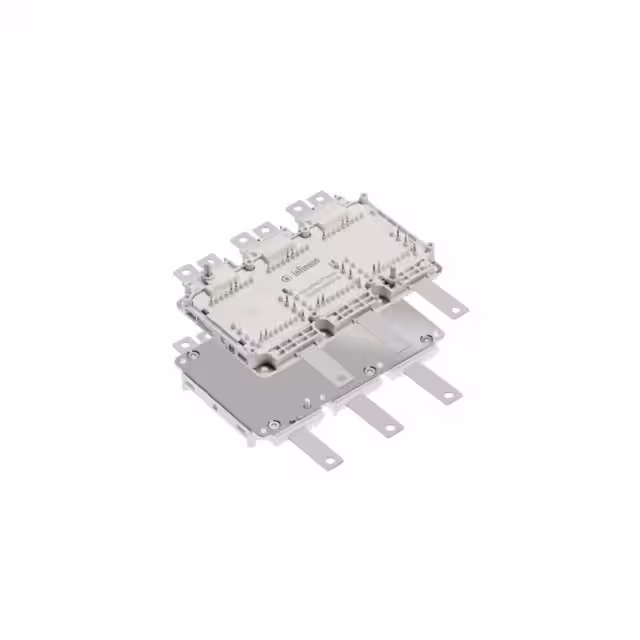

FS660R08A6P2FLBBPSA1HYBRID PACK DRIVE Infineon Technologies |
4,190 | 0.00 |
|
- |
HybridPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 750 V | 450 A | 1053 W | 1.35V @ 15V, 450A | 1 mA | 80 nF @ 50 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-HYBRIDD-1 |
|

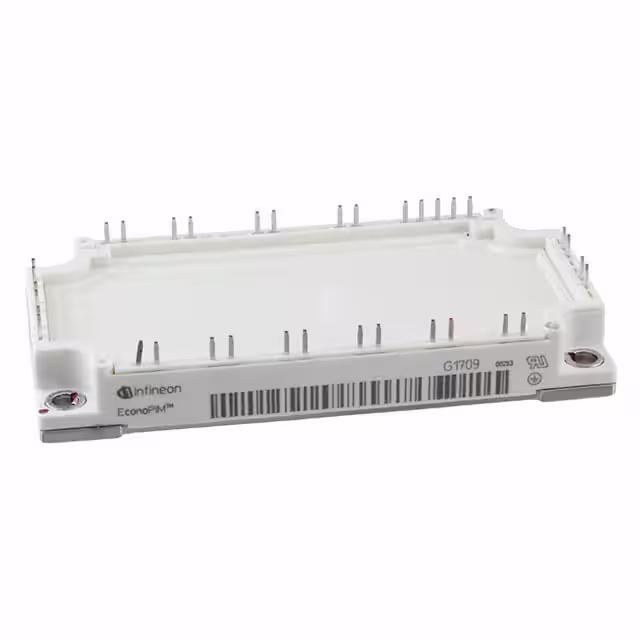

BSM50GP120BOSA1IGBT MODULE 1200V 50A Infineon Technologies |
9,725 | 0.00 |
|
- |
- | Module | Tray | Obsolete | - | 3 Phase Inverter | 1200 V | 80 A | - | 2.55V @ 15V, 50A | 500 µA | 3.3 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FF450R12IE4BOSA2IGBT MOD 1200V 450A 2550W Infineon Technologies |
4,587 | 0.00 |
|
- |
PrimePACK™2 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 450 A | 2550 W | 2.05V @ 15V, 450A | 5 mA | 27 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS75R12KS4BOSA1IGBT MOD 1200V 100A 500W Infineon Technologies |
9,381 | 0.00 |
|
- |
- | Module | Tray | Obsolete | - | Three Phase Inverter | 1200 V | 100 A | 500 W | 3.7V @ 15V, 75A | 5 mA | 5.1 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
