IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DF600R12IP4DVBOSA1IGBT MODULE VCES 1200V 600A Infineon Technologies |
7,071 | 0.00 |
|
- |
PrimePACK™2 | - | Tray | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS300R12KE4BOSA1IGBT MOD 1200V 450A 1600W Infineon Technologies |
2,647 | 0.00 |
|
- |
EconoPACK™+ B | Module | Tray | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1200 V | 450 A | 1600 W | 2.1V @ 15V, 300A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
BSM100GD120DN2BOSA1IGBT MOD 1200V 150A 680W Infineon Technologies |
6,312 | 0.00 |
|
- |
- | Module | Tray | Obsolete | - | Three Phase Inverter | 1200 V | 150 A | 680 W | 3V @ 15V, 100A | 2 mA | 6.5 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Module |
|
|
DF650R17IE4PB60BPSA1PP IHM I Infineon Technologies |
5,620 | 0.00 |
|
- |
- | Module | Tray | Active | - | Single | 1700 V | 930 A | 4150 W | 2.45V @ 15V, 650A | 5 mA | 54000 pF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

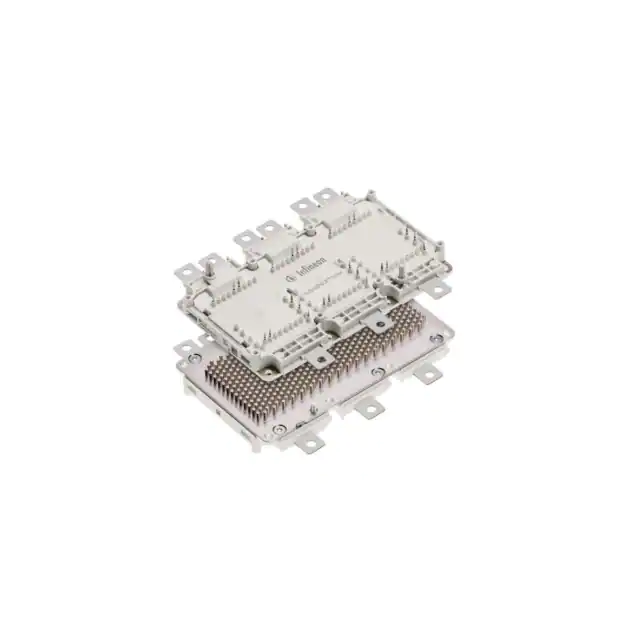

FS820R08A6P2BPSA1IGBT MODULE PACK DRV HYBRIDD-1 Infineon Technologies |
8,956 | 0.00 |
|
- |
HybridPACK™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 750 V | 820 A | 714 W | 1.35V @ 15V, 450A | 1 mA | 80 nF @ 50 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-HYBRIDD-1 |
|
FF650R17IE4VBOSA1IGBT MODULE 1700V 4150W Infineon Technologies |
5,598 | 0.00 |
|
- |
PrimePACK™2 | Module | Tray | Not For New Designs | - | 2 Independent | 1700 V | - | 4150 W | 2.45V @ 15V, 650A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
DF900R12IP4DPB60BPSA1PP IHM I Infineon Technologies |
6,456 | 0.00 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 500 µA | 54000 pF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
FF600R12IP4B60BPSA1PP IHM I Infineon Technologies |
7,010 | 0.00 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1200 V | 600 A | - | 2.05V @ 15V, 600A | 5 mA | 37000 pF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
FF900R12IP4DBOSA2IGBT MOD 1200V 900A 5100W Infineon Technologies |
5,682 | 0.00 |
|
- |
PrimePACK™2 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF600R12IP4PB60BPSA1PP IHM I Infineon Technologies |
7,785 | 0.00 |
|
- |
- | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.05V @ 15V, 600A | 5 mA | 37000 pF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
