IGBT Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS400R07A1E3BOSA1IGBT MOD 650V 500A 1250W Infineon Technologies |
3,765 | 0.00 |
|
- |
- | Module | Tray | Obsolete | - | Three Phase Inverter | 650 V | 500 A | 1250 W | 1.9V @ 15V, 400A | 1 mA | 26 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|

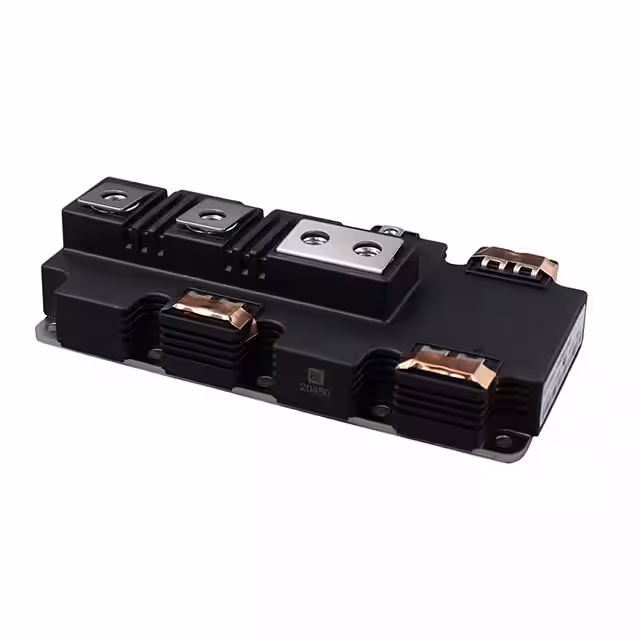

FF600R12IP4PBPSA1PP IHM I XHP 1 7KV AG-PRIME2-411 Infineon Technologies |
1 | 0.00 |
|
- |
PrimePACK™2 | Module | Tray | Last Time Buy | Trench Field Stop | 2 Independent | 1200 V | 600 A | - | 2.05V @ 15V, 600A | 5 mA | 37 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-PRIME2 |
|
FD650R17IE4BOSA2IGBT MOD 1700V 930A 4150W Infineon Technologies |
5,220 | 0.00 |
|
- |
PrimePACK™2 | Module | Tray | Active | - | Single | 1700 V | 930 A | 4150 W | 2.45V @ 15V, 650A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF450R17IE4BOSA2IGBT MOD 1700V 620A 2800W Infineon Technologies |
9,797 | 0.00 |
|
- |
- | Module | Tray | Active | - | 2 Independent | 1700 V | 620 A | 2800 W | 2.45V @ 15V, 450A | 5 mA | 36 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
BSM75GD120DLCBOSA1IGBT MOD 1200V 125A 500W Infineon Technologies |
5,222 | 0.00 |
|
- |
- | Module | Tray | Obsolete | - | Full Bridge | 1200 V | 125 A | 500 W | 2.6V @ 15V, 75A | 92 µA | 5.1 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FS400R07A3E3BOMA1IGBT MODULE Infineon Technologies |
2,577 | 0.00 |
|
- |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DF900R12IP4DBOSA1IGBT MOD 1200V 900A 5100W Infineon Technologies |
6,834 | 0.00 |
|
- |
PrimePACK™2 | Module | Tray | Active | Trench Field Stop | Single Chopper | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS225R12KE3BOSA1IGBT MOD 1200V 325A 1150W Infineon Technologies |
7,676 | 0.00 |
|
- |
EconoPACK™+ | Module | Tray | Not For New Designs | Trench Field Stop | Full Bridge | 1200 V | 325 A | 1150 W | 2.15V @15V, 225A | 5 mA | 16 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FS200R07A5E3S6BPSA1IGBT MODULE HYBRID PACK LIGHT Infineon Technologies |
3,993 | 0.00 |
|
- |
HybridPACK™ | Module | Tray | Obsolete | Trench | Full Bridge Inverter | 705 V | 200 A | 630 W | 1.7V @ 15V, 200A | 100 µA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
FS100R12KS4BOSA1IGBT MOD 1200V 130A 660W Infineon Technologies |
2,938 | 0.00 |
|
- |
- | Module | Tray | Obsolete | - | Three Phase Inverter | 1200 V | 130 A | 660 W | 3.7V @ 15V, 100A | 5 mA | 6.8 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
