RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3040RF ANT 2.1GHZ CHIP SOLDER SMD Pulse Electronics |
2,352 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Cellular | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 2.1GHz | 1.92GHz ~ 2.17GHz | Chip | 1 | - | -10dB | 2.3dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | WCDMA |
|
|
W4120ER5000RF ANT 850MHZ/900MHZ FLAT BAR Pulse Electronics |
2,645 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | 806MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Flat Bar | 6 | 2.5, 2.5, 2 | - | 0dBi | - | Cable - 5m, LNA | MCX (1), MMCX (1) | IP67 | - | - | Adhesive | 0.543" (13.80mm) | GPS, GSM |
|
|
W4120GL5000RF ANT 850MHZ/900MHZ FLAT BAR Pulse Electronics |
4,626 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | 806MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Flat Bar | 6 | 2.5, 2.5, 2 | - | 0dBi | - | Cable - 5m, LNA | FME (1), SMA Male (1) | IP67 | - | - | Adhesive | 0.543" (13.80mm) | GPS, GSM |
|

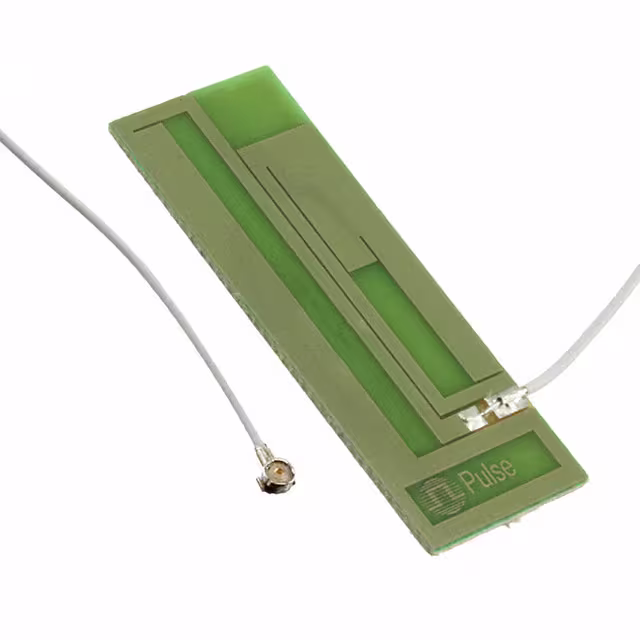

W3538M0150RF ANT 892MHZ/1.9GHZ PCB 150MM Pulse Electronics |
4,589 | 0.00 |
|
Datasheet |
- | Tray | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -3dB, -6dB | 1.5dBi, 4.5dBi, 3.9dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.028" (0.70mm) | GSM, WCDMA |
|
|
W4150GG3000RF ANT 892MHZ/1.575GHZ PUCK 3M Pulse Electronics |
3,874 | 0.00 |
|
- |
- | Tray | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.575GHz, 1.9GHz | 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz | Puck | 3 | 2.5, 2.5, 1.5 | - | 2dBi, 4dBi | - | LNA | SMA Male | - | - | - | Adhesive | 0.315" (8.00mm) | GPS, GSM |
|
|
W5005ANTENNA PENTA BAND RADOME MALE Pulse Electronics |
4,601 | 0.00 |
|
Datasheet |
- | Tray | Active | General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 895MHz | 824MHz ~ 930MHz, 860MHz ~ 960MHz | - | 2 | - | -10dB | 1dBi | - | - | N Type Female | IP67 | - | - | Connector Mount | 8.465" (215.00mm) | ISM |
|
|
RO2404NMRF ANT 2.4GHZ WHIP STR N MALE Pulse Electronics |
1,722 | 0.00 |
|
Datasheet |
- | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Whip, Straight | 1 | 2 | - | 4dBi | 20 W | - | N Type Male | - | - | - | Connector Mount | 11.496" (292.00mm) | - |
|
|
SLPT698NMORF ANT 829MHZ WHIP STR NMO BASE Pulse Electronics |
1,593 | 0.00 |
|
Datasheet |
Shadow | Bulk | Active | Cellular, WiFi | UHF (300MHz ~ 1GHz) | 829MHz | 698MHz ~ 960MHz | Dome | 1 | 2 | - | 4.5dBi | 10 W | - | NMO | IP67 | - | - | Base Mount | 3.000" (76.20mm) | LTE, WLAN |
|
|
W4120EG5000RF ANT 850MHZ/900MHZ FLAT BAR Pulse Electronics |
1,787 | 0.00 |
|
Datasheet |
- | Bulk | Active | Cellular, Navigation | Wide Band | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | 806MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Flat Bar | 6 | 2.5, 2.5, 2 | - | 0dBi | - | Cable - 5m, LNA | SMA Male (1), MMCX (1) | IP67 | - | - | Adhesive | 0.543" (13.80mm) | GPS, GSM |
|

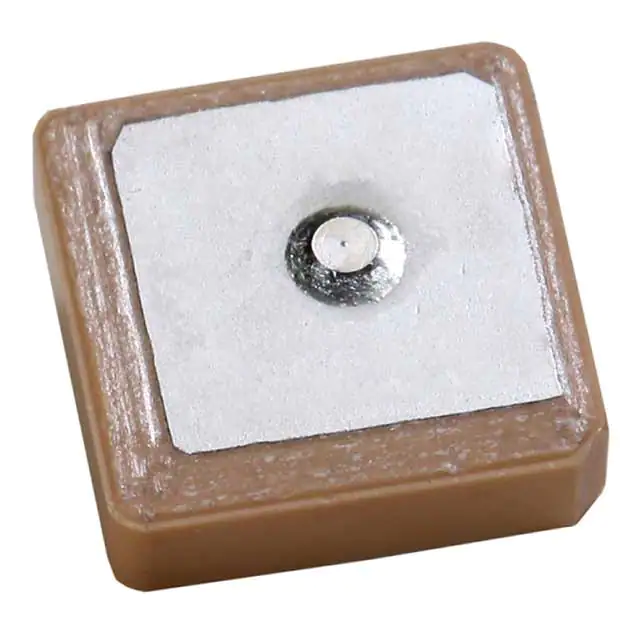

ANT1515B00FT1575SRF ANT 1.6GHZ CER PATCH PIN SMD Pulse Electronics |
1,551 | 0.00 |
|
- |
1515 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.6GHz | 1.576GHz ~ 1.584GHz | Ceramic Patch | 1 | 2 | -10dB | 1.5dBic | - | - | Pin | - | - | - | Surface Mount | 0.177" (4.50mm) | GPS |
