RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W3315B0065MHF1DUAL BAND WIFI FPC ANTENNA Pulse Electronics |
1,956 | 0.00 |
|
Datasheet |
Internal Antenna | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz | Flat Patch | 2 | 2 | - | 2dBi, 5dBi | 2 W | Cable - 65mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Bluetooth, DSRC, Wi-Fi, Zigbee™ |
|
|
ANT1212B00FT1575SRF ANT 1.58GHZ CER PATCH PIN ADH Pulse Electronics |
1,829 | 0.00 |
|
Datasheet |
1212 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | - | Ceramic Patch | 1 | 2 | - | -1.5dBi | 1 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|
|
ANT1010B00FT1575SRF ANT 1.58GHZ CER PATCH PIN ADH Pulse Electronics |
2,271 | 0.00 |
|
Datasheet |
1010 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | - | Ceramic Patch | 1 | 2 | - | -2.5dBi | 1 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|
|
ANTX100P001B50003RF ANT 5.3685GHZ PCB TRACE CAB Pulse Electronics |
4,869 | 0.00 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.3685GHz | 5.15GHz ~ 5.875GHz | PCB Trace | 1 | 2.5 | - | 2.5dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
|
ANTX100P011B50003RF ANT 5.3685GHZ PCB TRACE CAB Pulse Electronics |
4,534 | 0.00 |
|
Datasheet |
- | Bulk | Active | 802.15.4, Bluetooth, WiFi | SHF (f > 4GHz) | 5.3685GHz | 5.15GHz ~ 5.875GHz | PCB Trace | 1 | 2.5 | - | 3.2dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.022" (0.55mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

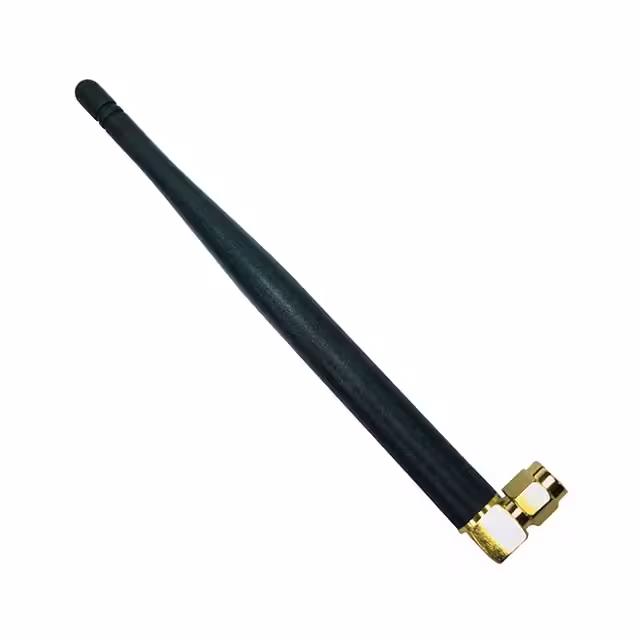

W1079ANT EXT 779-787MHZ RA SMA MALE Pulse Electronics |
4,720 | 0.00 |
|
Datasheet |
Stick Antenna | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 783MHz | 779MHz ~ 787MHz | Whip, Right Angle | 1 | 2 | - | 0dBi | 5 W | - | SMA Male | IP42 | - | - | Connector Mount | 5.040" (128.00mm) | ISM |
|
|
DAS500MDMIMOANTENNA Pulse Electronics |
1,789 | 0.00 |
|
Datasheet |
PIMinator™ | Bulk | Obsolete | Cellular, WiFi | Wide Band | 829MHz, 1.94GHz, 2.5GHz, 5.4GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.9GHz | Dome | 4 | 1.7 | - | 2dBi, 5dBi | 50 W | - | Connector | - | - | - | Panel Mount | 4.720" (119.88mm) | 2G, 3G, 4G, LTE, Wi-Fi, WiMax™ |
|
|
DASUTCCR500MDANTENNA Pulse Electronics |
4,932 | 0.00 |
|
Datasheet |
Clarity™ | Bulk | Obsolete | Cellular, WiFi | Wide Band | 784MHz, 1.947GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 5dBi, 7dBi | 40 W | Cable - 500mm | Mini-DIN Female | - | - | - | Panel Mount | 0.331" (8.40mm) | 2G, 3G, 4G, LTE, Wi-Fi |
|
|
DASUTWC500MDANTENNA Pulse Electronics |
2,296 | 0.00 |
|
Datasheet |
Clarity™ | Bulk | Obsolete | WiFi | Wide Band | 784MHz, 1.947GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 4dBi, 6dBi | 40 W | Cable - 500mm | Mini-DIN Female | - | - | - | Panel Mount | 0.331" (8.40mm) | Wi-Fi |
|
|
DASUTWCR500MDANTENNA Pulse Electronics |
3,682 | 0.00 |
|
Datasheet |
Clarity™ | Bulk | Obsolete | WiFi | Wide Band | 784MHz, 1.947GHz, 2.5GHz | 608MHz ~ 960MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Patch | 3 | 2 | - | 5dBi, 7dBi | 40 W | Cable - 500mm | Mini-DIN Female | - | - | - | Panel Mount | 0.331" (8.40mm) | Wi-Fi |
