RF Antennas
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

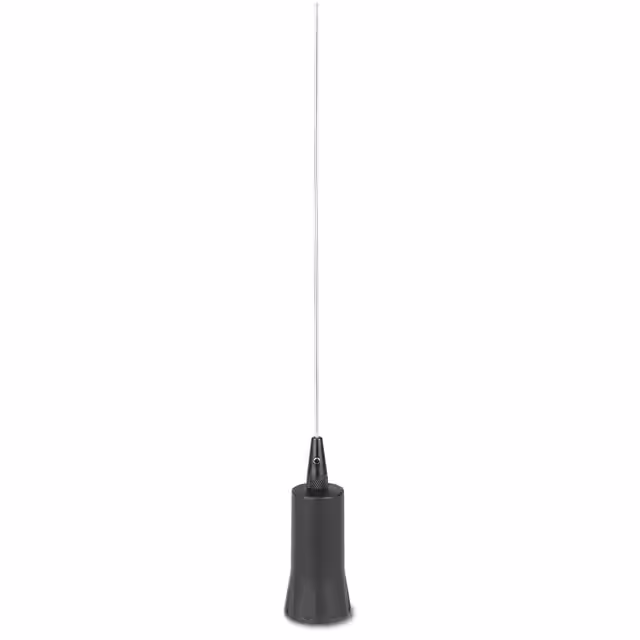

NMO40UBNCSPRINGNMO COIL / WHIP UNITY, 40-50MHZ, Pulse Electronics |
3,777 | 0.00 |
|
Datasheet |
- | Bag | Active | - | VHF (f < 300MHz) | 45MHz | 40MHz ~ 50MHz | Whip, Straight | 1 | - | - | - | - | - | - | - | - | - | NMO Mount | - | - |
|

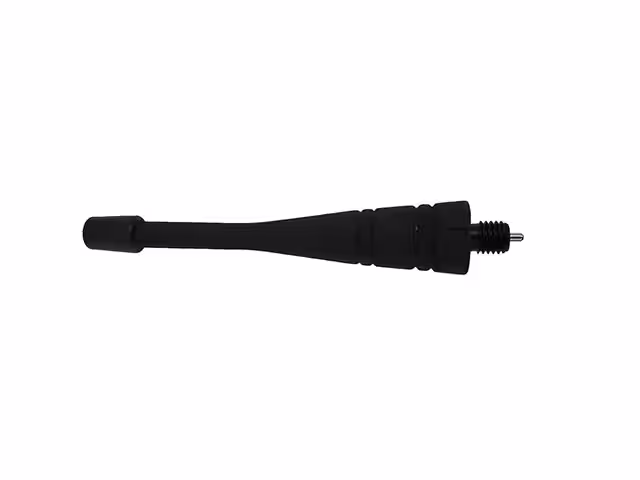

SPWH14832WHIP - STANDARD - 1/4 WAVE, 782 Pulse Electronics |
3,555 | 0.00 |
|
Datasheet |
- | Bag | Active | - | UHF (300MHz ~ 1GHz) | 832MHz | 782MHz ~ 882MHz | Whip, Straight | 1 | - | - | - | - | - | MD | - | - | - | Connector Mount | 3.000" (76.20mm) | - |
|
ANT1204LL20R0315AANTENNA CHIP 315M HELIX TYPE20 Pulse Electronics |
3,710 | 0.00 |
|
Datasheet |
1204 | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 315MHz | 300MHz ~ 400MHz | Chip | 1 | - | - | - | 1 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | ISM |
|
|
ANT2525B00AT1575SANTENNA PATCH GPS Pulse Electronics |
2,397 | 0.00 |
|
- |
2525 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.577GHz ~ 1.583GHz | Ceramic Patch | 1 | 1.5 | - | 5dBic | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GPS |
|
|
ANT1212B00DT1575SANTENNA PATCH GPS CP PIN DIAG. Pulse Electronics |
3,859 | 0.00 |
|
Datasheet |
1212 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58GHz | 1.577GHz ~ 1.583GHz | Ceramic Patch | 1 | 2 | - | -1.5dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GPS |
|
|
ANT2525JB19BGNSSSANTENNA PATCH ANMW BOB-LNA-C 252 Pulse Electronics |
3,101 | 0.00 |
|
- |
2525 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ANT1818B00BT1575SANTENNA PATCH GPS CP SMD Pulse Electronics |
2,931 | 0.00 |
|
- |
1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.58MHz | - | Ceramic Patch | 1 | 1.5 | - | 2dBic | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
|
ANT1105LF00R0098AANTENNA CHIP FM HELIX TYPE00 Pulse Electronics |
4,352 | 0.00 |
|
- |
1105 | Tape & Reel (TR) | Active | - | VHF (f < 300MHz) | 98MHz | 88MHz ~ 108MHz | Chip | 1 | - | - | - | 1 W | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | - |
|
|
ANT4050BS0WTGN25SANTENNA PATCH GNSS + L2 +L5 Pulse Electronics |
3,968 | 0.00 |
|
Datasheet |
4050 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ANT1110LL40R2590AANTENNA CHIP CERAMIC TYPE40 Pulse Electronics |
1,783 | 0.00 |
|
Datasheet |
1110 | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 5.685GHz | 2.87GHz ~ 8.5GHz | Chip | 1 | - | 6dB | 3.32dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.049" (1.25mm) | UWB |
