SCRs - Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VHF125-16IO7RECT BRIDGE HALF 1600V PWS-E1 |
7,193 | 0.00 |
|
Datasheet |
- | PWS-E1 | Box | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.6 kV | - | 89 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
DFA150CB160DIODE MODULE 1600V 150A |
2,749 | 0.00 |
|
Datasheet |
- | Module | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 150 A | - | 3 V | 70 mA | 1460A, 1600A | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | |
|
|
T7H8166504DNSCR PHASE CTRL MOD 1600V 650A |
6,165 | 0.00 |
|
Datasheet |
- | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.6 kV | 650 A | 1020 A | 3 V | 150 mA | 8200A, 9000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
M505042VM SERIES POWER MODULE |
4,580 | 0.00 |
|
Datasheet |
M50 | Module | Bulk | Obsolete | 1-Phase Controller - All SCRs | 2 SCRs | 600 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCC250-14IO1THYRISTOR DUAL 1400V 450A |
2,404 | 0.00 |
|
Datasheet |
- | Y2-DCB | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 287 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
T720145504DNSCR PHASE CTRL MOD 1400V 550A |
4,282 | 0.00 |
|
Datasheet |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.4 kV | 550 A | 850 A | 3 V | 150 mA | 9125A, 10000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
T7H8167504DNSCR PHASE CTRL MOD 1600V 750A |
4,196 | 0.00 |
|
Datasheet |
- | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.6 kV | 750 A | 1180 A | 3 V | 150 mA | 9600A, 10500A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T720163504DNSCR PHASE CTRL MOD 1600V 350A |
6,137 | 0.00 |
|
- |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.6 kV | 350 A | - | 3 V | 150 mA | - | - | - | - | - | Clamp On |
|
MCD310-08IO1MOD THYRISTOR/DIODE 800V Y2-DCB |
8,097 | 0.00 |
|
Datasheet |
- | Y2-DCB | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
M505062MODULE POWER 50A 600V BRDG DBLR |
4,075 | 0.00 |
|
Datasheet |
M50 | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 600 V | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
L313FL SERIES POWER MODULE |
2,085 | 0.00 |
|
Datasheet |
L | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 2.5 V | 100 mA | 2250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

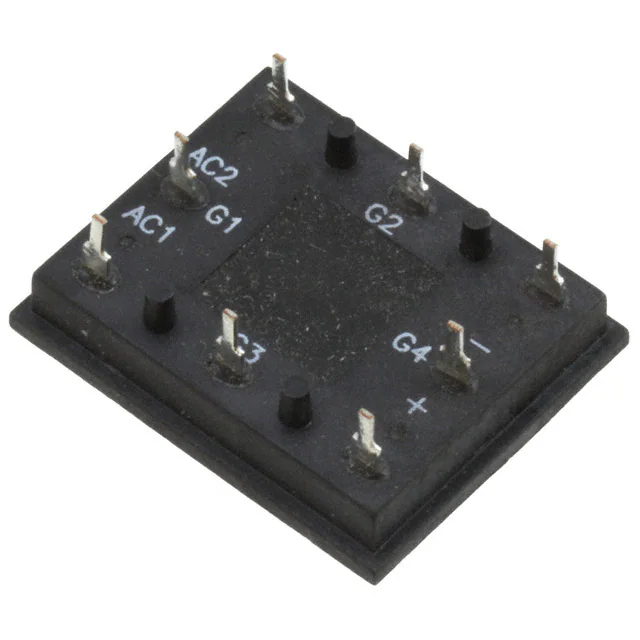

L542MODULE SCR/DIODE 25A 240VAC PCB |
4,201 | 0.00 |
|
Datasheet |
L | Module | Bulk | Active | Bridge, Single Phase - All SCRs | 4 SCRs | 600 V | - | - | 3 V | 100 mA | 300A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|
|
T720164504DNSCR PHASE CTRL MOD 1600V 450A |
4,749 | 0.00 |
|
Datasheet |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.6 kV | 450 A | 700 A | 3 V | 150 mA | 7650A, 8400A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
MCC250-16IO1MOD THYRISTOR DUAL 1600V Y2-DCB |
9,142 | 0.00 |
|
Datasheet |
- | Y2-DCB | Box | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 287 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
DFA150AA160DIODE MODULE 1600V 150A |
5,463 | 0.00 |
|
Datasheet |
- | Module | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 150 A | - | 3 V | 70 mA | 1460A, 1600A | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | |
|
SCA240DA160THYRISTOR MODULE 1600V 240A |
5,890 | 0.00 |
|
Datasheet |
- | Module | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 240 A | 376 A | 3 V | 100 mA | 6000A, 6500A | 140 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount | |
xxx-xxIO1.jpg)
|
MCD225-12IO1MOD THYRISTOR/DIODE 1200V Y1-CU |
3,061 | 0.00 |
|
Datasheet |
- | Y1-CU | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 221 A | 400 A | 2 V | 150 mA | 8000A, 8500A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
T820169004DHSCR PHASE CTRL MOD 1600V 900A |
3,635 | 0.00 |
|
Datasheet |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.6 kV | 900 A | 1410 A | 3 V | 150 mA | 13700A, 15000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
T430N18TOFXPSA1SCR MODULE 1800V 700A DO200AA |
6,995 | 0.00 |
|
Datasheet |
- | TO-200AA | Tray | Active | Single | 1 SCR | 1.8 kV | 433 A | 700 A | 2 V | 200 mA | 5200A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
T720165504DNSCR PHASE CTRL MOD 1600V 550A |
6,070 | 0.00 |
|
Datasheet |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.6 kV | 550 A | 850 A | 3 V | 150 mA | 9125A, 10000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
