SCRs - Modules
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

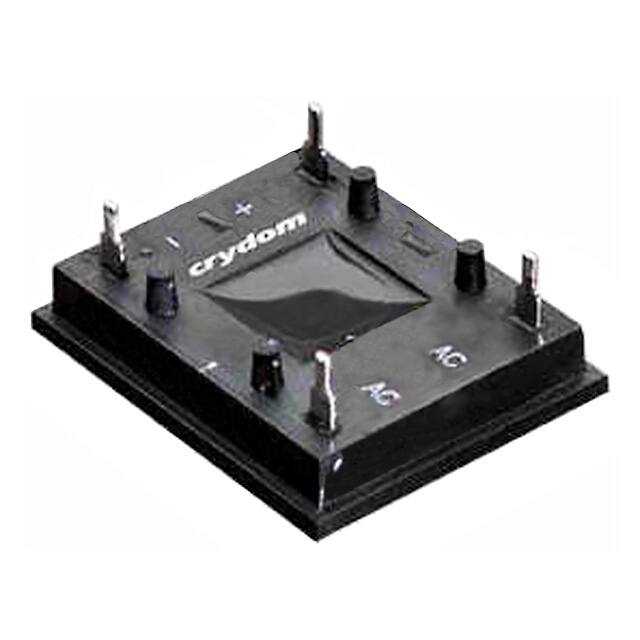

L313MODULE SCR/DIODE 15A 280VAC PCB |
6,872 | 0.00 |
|
Datasheet |
L | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 2.5 V | 100 mA | 2250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|
T720125504DNSCR PHASE CTRL MOD 1200V 550A |
5,353 | 0.00 |
|
Datasheet |
- | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.2 kV | 550 A | 850 A | 3 V | 150 mA | 9125A, 10000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
|
VHF125-14IO7RECT BRIDGE HALF 1400V PWS-E1 |
4,150 | 0.00 |
|
Datasheet |
- | PWS-E1 | Box | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.4 kV | - | 89 A | 1.5 V | 100 mA | 1500A, 1600A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC220-14IO1MOD THYRISTOR DUAL 1400V Y2-DCB |
2,693 | 0.00 |
|
Datasheet |
- | Y2-DCB | Box | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 250 A | 400 A | 2 V | 150 mA | 8500A, 9000A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
T690N04TOFXPSA1SCR MODULE 600V 900A DO200AA |
7,014 | 0.00 |
|
Datasheet |
- | TO-200AA | Tray | Obsolete | Single | 1 SCR | 600 V | 694 A | 900 A | 1.4 V | 150 mA | 7800A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
T512FSEMODULE POWER |
8,990 | 0.00 |
|
Datasheet |
- | Module | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B614FSE-2TMOD DIODE SCR 42.5A 480V .250"QC |
5,909 | 0.00 |
|
Datasheet |
B-2T | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 80 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCD250-16IO1MOD THYRISTOR/DIODE 1600V Y2-DCB |
8,575 | 0.00 |
|
Datasheet |
- | Y2-DCB | Box | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 287 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCC250-12IO1MOD THYRISTOR DUAL 1200V Y2-DCB |
7,149 | 0.00 |
|
Datasheet |
- | Y2-DCB | Box | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 287 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
DFA150AA80DIODE MODULE 800V 150A |
8,020 | 0.00 |
|
Datasheet |
- | Module | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 800 V | 150 A | - | 3 V | 70 mA | 1460A, 1600A | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | |
|
|
MT200DT08L2-BPDISCRETE SEMICONDUCTOR MODULES T |
8,656 | 0.00 |
|
- |
- | Module | Tape & Reel (TR) | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 800 V | 200 A | - | 3 V | 150 mA | 1.9kA @ 50Hz | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MT200DT16L2-BPDISCRETE SEMICONDUCTOR MODULES T |
9,218 | 0.00 |
|
- |
- | Module | Tape & Reel (TR) | Active | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 200 A | - | 3 V | 150 mA | 1.9kA @ 50Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
M252532VMODULE POWER 25A 600V SCR BRIDGE |
2,125 | 0.00 |
|
Datasheet |
- | Module | Bulk | Not For New Designs | Bridge, Single Phase - All SCRs | 4 SCRs | 600 V | - | - | 2.5 V | 50 mA | 300A @ 60Hz | 75 mA | - | - | - | Chassis Mount |
|
PWB200AA40THYRISTOR MODULE 400V 200A |
4,969 | 0.00 |
|
Datasheet |
- | Module | Active | Bridge, 3-Phase - All SCRs | 3 SCRs | 400 V | 200 A | 314 A | 2 V | 150 mA | 5400A, 6000A | 70 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | |
|
|
PWB200AA30THYRISTOR MODULE 300V 200A |
8,471 | 0.00 |
|
Datasheet |
- | Module | Active | Bridge, 3-Phase - All SCRs | 3 SCRs | 300 V | 200 A | 314 A | 2 V | 150 mA | 5400A, 6000A | 70 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | |
|
|
T7H8165504DNSCR PHASE CTRL MOD 550A 1600V |
9,451 | 0.00 |
|
- |
- | - | Bulk | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SCE240DA160THYRISTOR MODULE 1600V 240A |
3,840 | 0.00 |
|
Datasheet |
- | Module | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 240 A | 376 A | 3 V | 100 mA | 6000A, 6500A | 140 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount | |
|
MCD161-20IO1MOD THYRISTOR/DIODE 2000V Y4-M6 |
4,849 | 0.00 |
|
Datasheet |
- | Y4-M6 | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2 kV | 165 A | 300 A | 2 V | 150 mA | 6000A, 6400A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MCC220-16IO1MOD THYRISTOR DUAL 1600V Y2-DCB |
2,724 | 0.00 |
|
Datasheet |
- | Y2-DCB | Box | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 250 A | 400 A | 2 V | 150 mA | 8500A, 9000A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCMA240UI1600P-PCSCR MODULE |
5,073 | 0.00 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
