Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA4320.223NLTFIXED IND 22UH 5.6A 30 MOHM SMD Pulse Electronics |
1,490 | 3.05 |
|
Datasheet |
PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 5.6 A | 6.8A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|

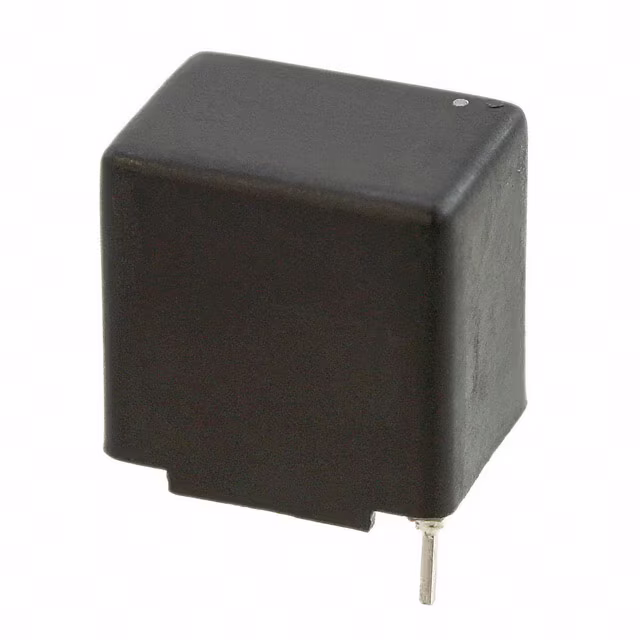

PE-52646NLFIXED IND 220UH 1.5A 420 MOHM TH Pulse Electronics |
1,283 | 3.95 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 220 µH | ±20% | 1.5 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|

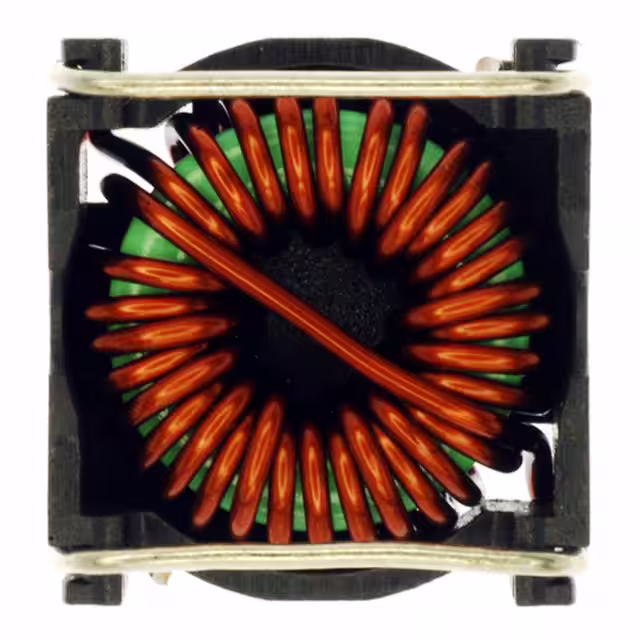

P0846SNLFIXED IND 14.8UH 5A 27 MOHM SMD Pulse Electronics |
822 | 2.96 |
|
Datasheet |
LCI-50 | Nonstandard | Tube | Active | Toroidal | - | 14.8 µH | ±20% | 5 A | - | Shielded | 27mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|

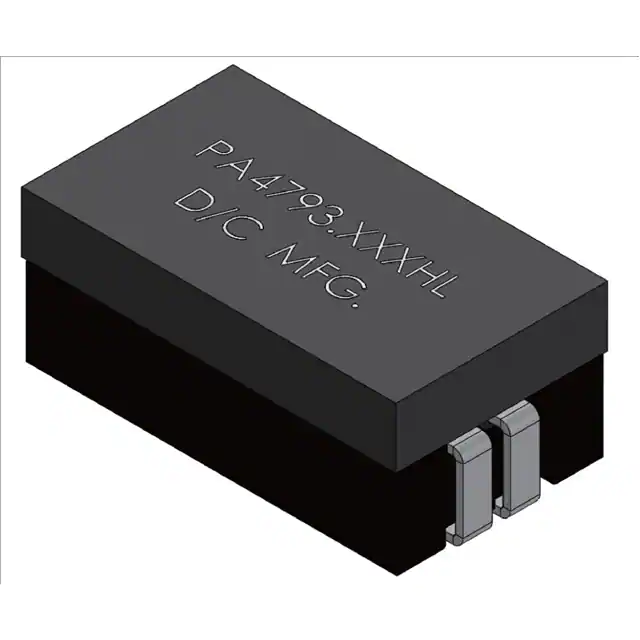

PA4793.501HLTFIXED IND 500NH 40A 1.15MOHM SMD Pulse Electronics |
1,000 | 3.14 |
|
Datasheet |
PA4793.XXXHL | Nonstandard | Tape & Reel (TR) | Active | - | - | 500 nH | ±10% | 40 A | 60A | Shielded | 1.15mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | SMD | 0.575" L x 0.327" W (14.60mm x 8.30mm) | 0.260" (6.60mm) |
|
PA5300.221HLTIND PWR BEAD 220NH 80A SMD Pulse Electronics |
786 | 3.17 |
|
Datasheet |
PA5300.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±15% | 80 A | 80A | Shielded | 0.1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.610" (15.50mm) |
|

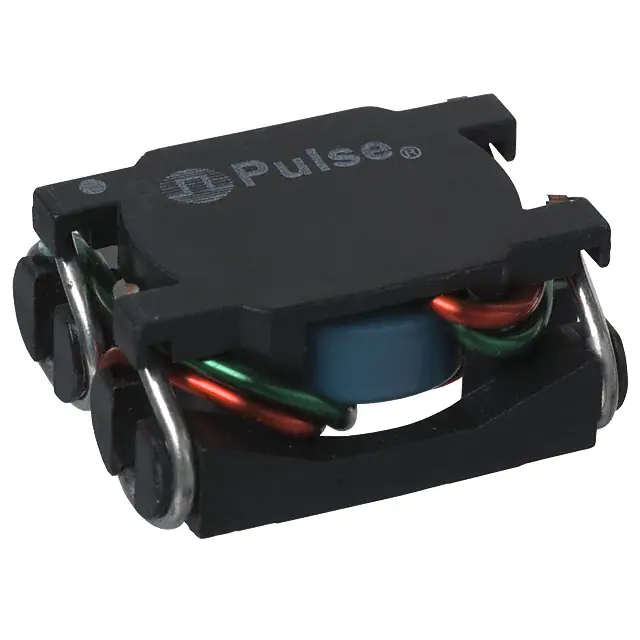

PE-53361NLFIXED IND 530NH 23.8A 3 MOHM SMD Pulse Electronics |
875 | 3.75 |
|
Datasheet |
SLIC | Nonstandard | Tube | Active | Toroidal | - | 530 nH | - | 23.8 A | - | Unshielded | 3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.865" L x 0.715" W (21.97mm x 18.16mm) | 0.390" (9.91mm) |
|
P0846SNLTFIXED IND 15UH 5A 27 MOHM SMD Pulse Electronics |
707 | 3.07 |
|
Datasheet |
LCI-50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 15 µH | ±20% | 5 A | - | Shielded | 27mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
PG0426.101NLTFIXED IND 100NH 34.5A 1.5MOHM SM Pulse Electronics |
5,265 | 3.22 |
|
Datasheet |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±20% | 34.5 A | 60A | Shielded | 1.5mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|

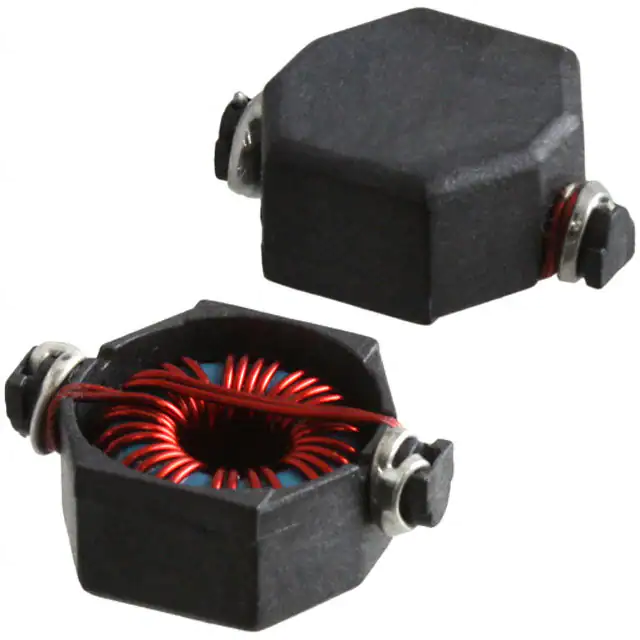

P0438NLTFIXED IND 12.2UH 500MA 161 MOHM Pulse Electronics |
8,563 | 3.12 |
|
Datasheet |
Ros 1 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 12.2 µH | ±15% | 500 mA | - | Shielded | 161mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.335" L x 0.225" W (8.51mm x 5.72mm) | 0.125" (3.18mm) |
|

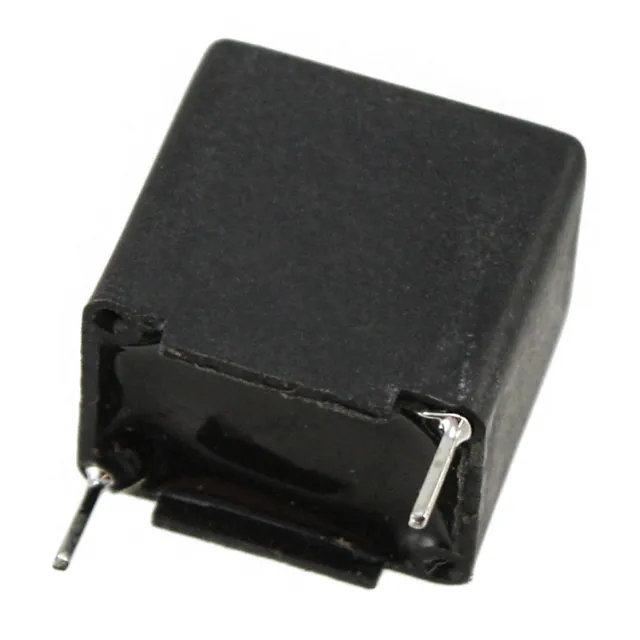

PE-52645NLFIXED IND 150UH 1.7A 420 MOHM TH Pulse Electronics |
617 | 4.33 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 150 µH | ±20% | 1.7 A | - | Unshielded | 420mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
