Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PG0426.821NLFIXED IND 820NH 13A 8 MOHM SMD Pulse Electronics |
1,400 | 0.00 |
|
Datasheet |
PG0426NL | Nonstandard | Tray | Active | Wirewound | - | 820 nH | ±20% | 13 A | 24A | Shielded | 8mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|
|
PG0426.471NLTFIXED IND 470NH 20A 3.4 MOHM SMD Pulse Electronics |
1,475 | 3.22 |
|
Datasheet |
PG0426NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 20 A | 26A | Shielded | 3.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.126" (3.20mm) |
|

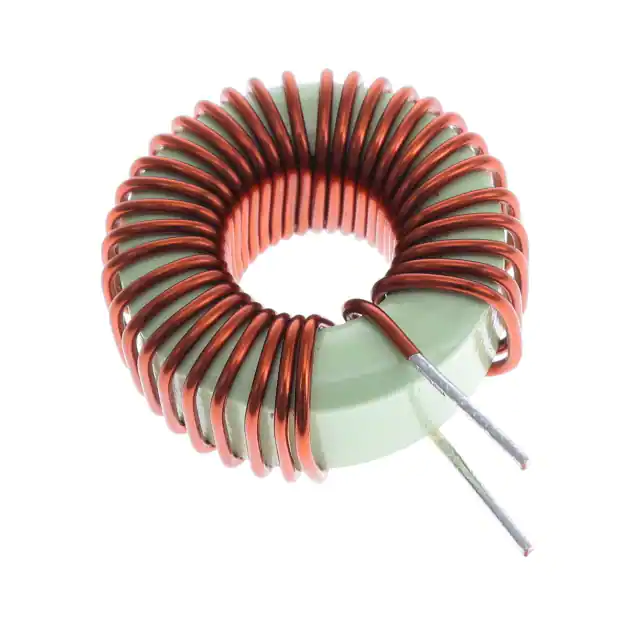

PE-92112NLFIXED IND 100UH 5A 34 MOHM TH Pulse Electronics |
645 | 5.15 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 100 µH | ±20% | 5 A | - | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.400" Dia x 0.700" W (35.56mm x 17.78mm) | - |
|
PA5119.152NLTFIXED IND 1.5UH 12A 6.0 MOHM Pulse Electronics |
1,238 | 2.59 |
|
Datasheet |
PA5119.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±10% | 12 A | 21A | Shielded | 6mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.197" (5.00mm) |
|
PE-53608NLTFIXED IND 192UH 900MA 560MOHM SM Pulse Electronics |
279 | 3.07 |
|
Datasheet |
SLIC | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 192 µH | - | 900 mA | - | Unshielded | 560mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

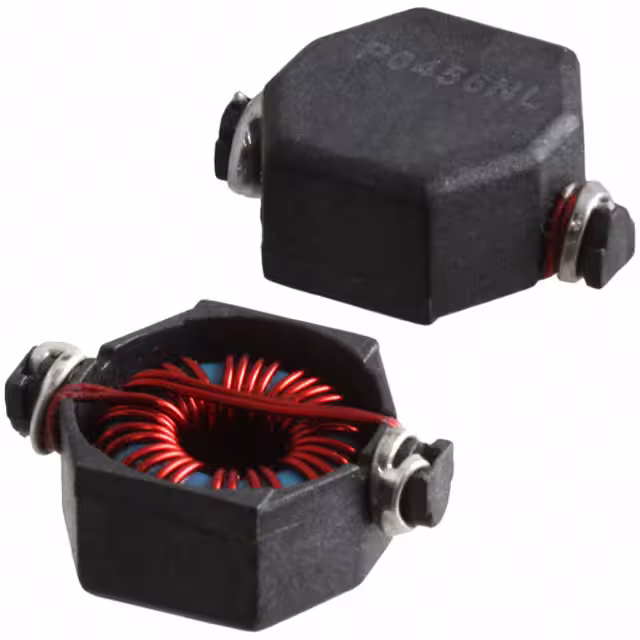

P0456NLTFIXED IND 6.3UH 2A 30 MOHM SMD Pulse Electronics |
600 | 3.22 |
|
Datasheet |
Ros 2 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 6.3 µH | ±15% | 2 A | - | Shielded | 30mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.545" L x 0.390" W (13.84mm x 9.91mm) | 0.215" (5.46mm) |
|

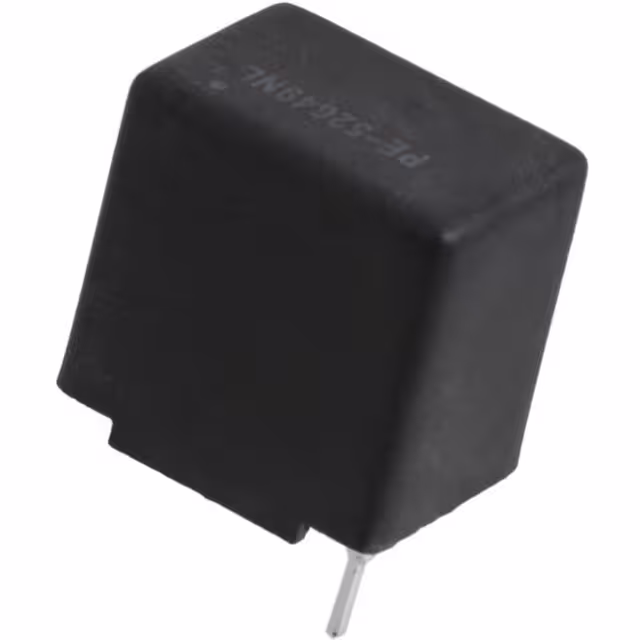

PE-52649NLFIXED IND 680UH 850MA 1.5 OHM TH Pulse Electronics |
1,484 | 4.17 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 680 µH | ±20% | 850 mA | - | Unshielded | 1.5Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.510" W (18.03mm x 12.95mm) | 0.710" (18.03mm) |
|
PE-53114NLFIXED IND 470UH 640MA 160MOHM TH Pulse Electronics |
400 | 4.39 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 470 µH | ±20% | 640 mA | - | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
|
PA5120.481NLTFIXED IND 480NH 32A 1.7MOHM SMD Pulse Electronics |
3,775 | 3.00 |
|
Datasheet |
PA5120.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 480 nH | ±10% | 32 A | 55A | Shielded | 1.7mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.551" W (17.30mm x 14.00mm) | 0.272" (6.90mm) |
|
PE-53613NLFIXED IND 645UH 740MA 1.25OHM SM Pulse Electronics |
157 | 2.93 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | 645 µH | - | 740 mA | - | Unshielded | 1.25Ohm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
